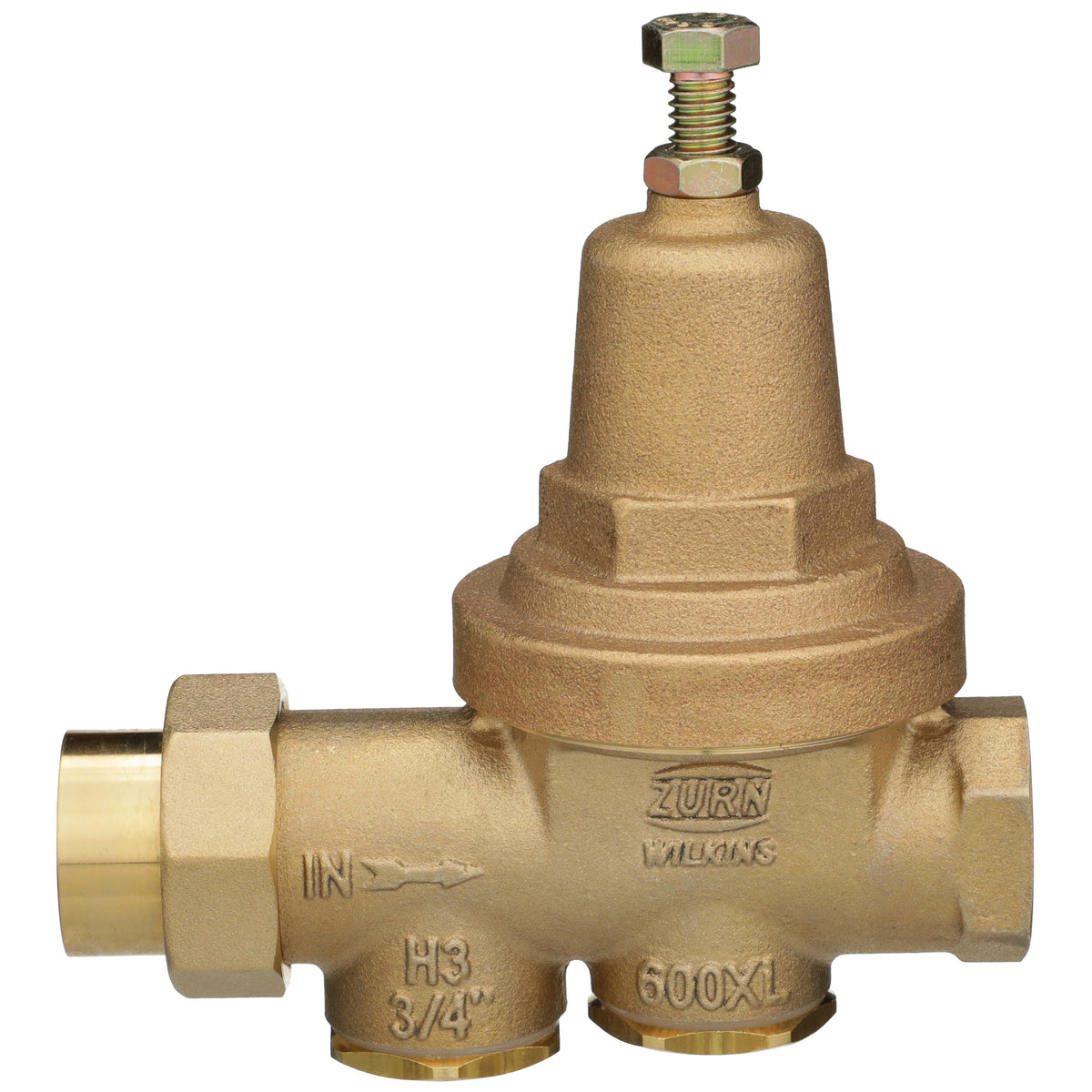

Zurn 34-610XL 3/4" Water Pressure Reducing Valve, Lead-Free Bronze, FNPT

The Zurn Wilkins 34-610XL is a 3/4" pressure reducing valve with single union FNPT connections. It reduces inlet pressure of up to 400 psi to an adjustable 75-125 psi downstream, factory set at 85 psi. It features a lead-free bronze body. Rated to 400 psi and up to 140°F.

Common Questions

What pressure is it set to out of the box?

34-610XL ships factory set at 85 psi. The adjustable reduced-pressure range is 75 to 125 psi, so you can dial the outlet anywhere in that band on site with the adjusting bolt - loosen the locknut, turn to raise or lower pressure, retighten and verify with a downstream gauge.

Does it include a strainer?

Yes - 34-610XL has an integral strainer built into the body, so a separate inline strainer ahead of it is not required. It is accessible for cleaning without removing the valve from the line.

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?

34-610XL includes an integral thermal-expansion bypass that relieves excess downstream pressure back toward the supply when street pressure is lower. It is not a substitute for a properly sized expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower than the closed-system pressure.

Specifications

• Type: Water Pressure Reducing Valve
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: FNPT
• Body Material: Lead-Free Bronze
• Max Pressure (psi): 400
• Application: Domestic Water
• MPN: 34-610XL
• Temperature: up to 140°F
• Certifications: ASSE-1003, IAPMO, CSA, NSF-61
• Factory Set Pressure (psi): 85
• Adjustable Range - Min (psi): 75
• Adjustable Range - Max (psi): 125
• Thermal Expansion Bypass: Yes
• Integral Strainer: Yes
• Gauge: None
• Union Configuration: Single Union
• Capacity Class: Standard
• Regulated Media: Domestic Water
• Bell Housing: Standard
