Description

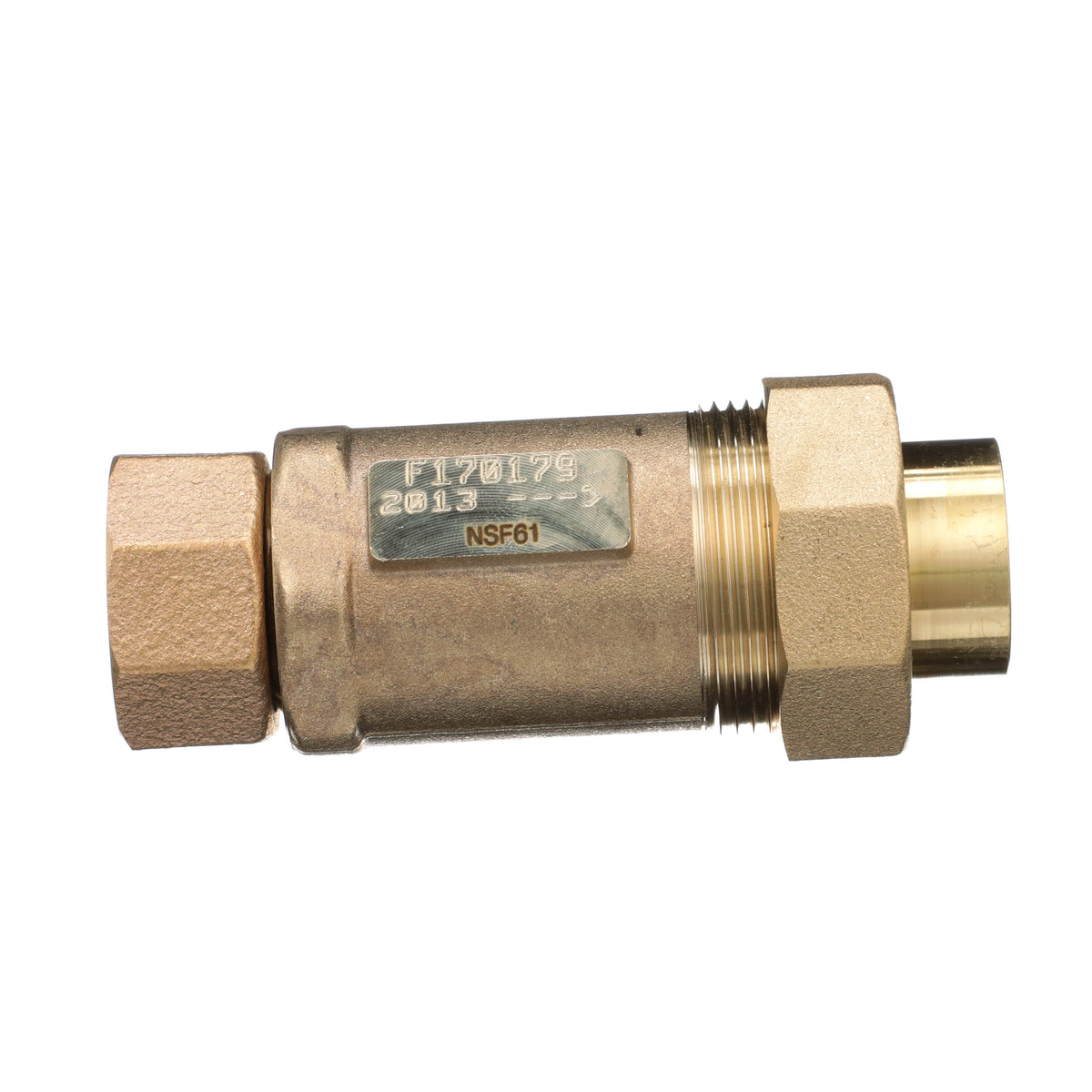

The Zurn Wilkins 1UFMX34UF-700XL is a lead-free dual check valve with FNPT connections, approved for low health hazard protection. It features a bronze body. This model is certified lead-free for potable-water installations.
The 700XL Dual Check Valve is used in low hazard applications on potable water lines to protect against both backsiphonage and backpressure of polluted water. A non-testable device, the 700XL is available in a variety of inlet and outlet sizes, connection types, and thread types, and comes standard with a union inlet connection and integral body outlet connection. Simply confirm the inlet connection, outlet connection, and location of the union, then select from our configuration options for easy installation. The 700XL can be installed horizontally or vertically so long as no part of the unit is submerged.
Features
- Several configuration options ease installation and repairs
- Horizontal or vertical installation reduces installation time and associated costs
- Comes standard with a union inlet connection and integral body outlet connection
- Quality stainless steel springs and low-lead bronze body resist corrosion
- ASSE® Listed 1024
- CSA® Certified
- Meets the requirements of NSF/ANSI 61
Common Questions
- What hazard level is this Dual Check approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the downstream substance could be a health hazard, codes require a reduced pressure zone (RPZ) assembly or a detector assembly instead.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Can this device be field tested?
- No. It is not a testable assembly, so it cannot be certified by a backflow tester. Where a jurisdiction requires an annually tested device, specify a testable assembly (double check, RPZ, or PVB) instead.
Specifications
- Type: Dual Check Valve
- Connection: FNPT
- Body Material: Bronze
- Application: Domestic Water
- MPN: 1UFMX34UF-700XL
- Certifications: CSA-B64.6, NSF-61, NSF-372
- Lead-Free: Yes
- Assembly Type: Dual Check
- Hazard Protection Level: Low Health Hazard
- USC FCCCHR Approved: No
- Field Testable: No
- Number of Test Cocks: 0
Dimensions
| End Connection | FNPT | — | — |
Details
| Series | 1UFMX34UF-700XL | Device Type | Dual Check Valve |
| Lead Free | Yes | Body Material | Bronze |
| Application | Domestic Water | Assembly Type | Dual Check |
| Hazard Rating | Low Health Hazard | Test Cocks | 0 |
Certifications & Standards
| CSA-B64.6 | NSF-61 |
| NSF-372 | — |
