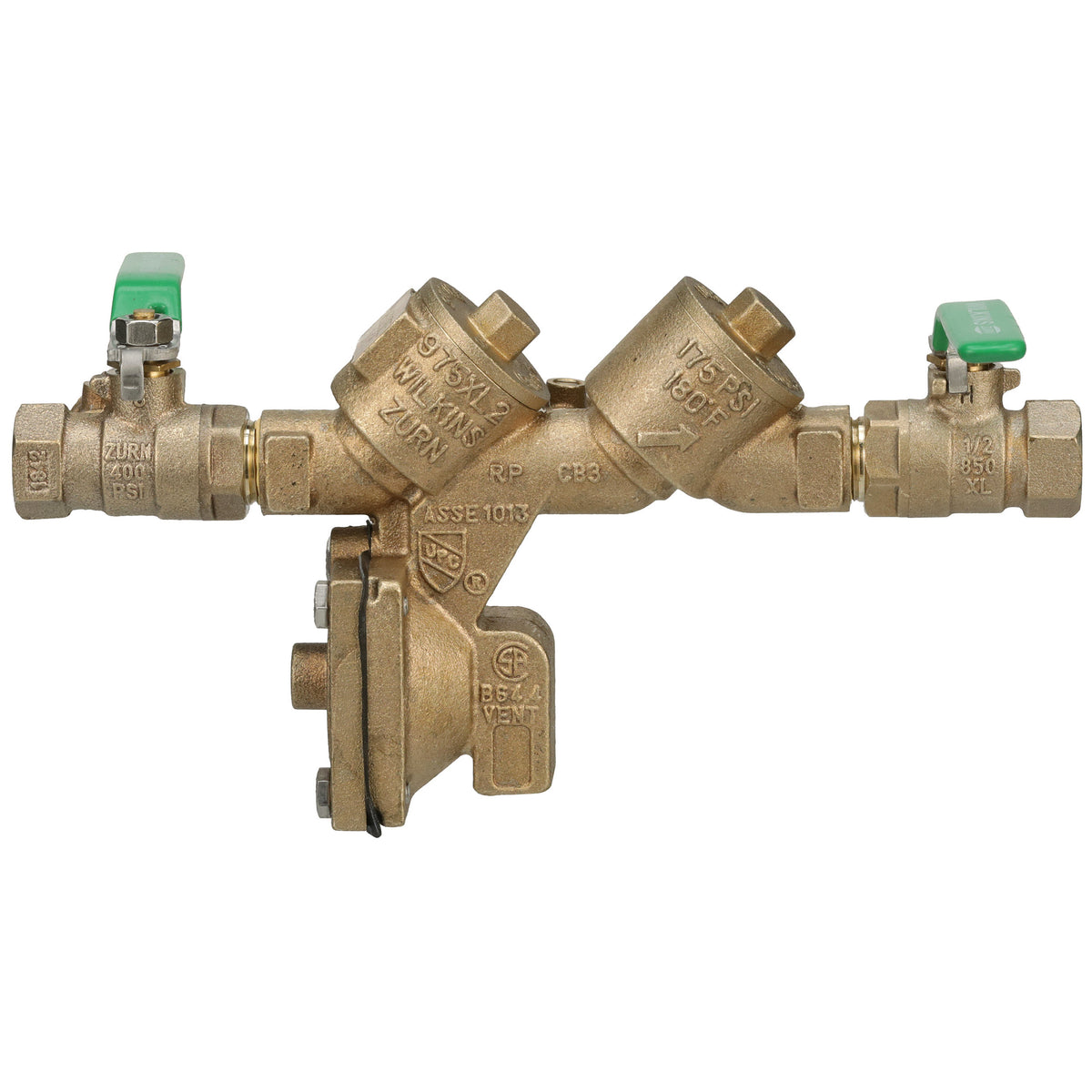

Zurn 12-975XL2SAG 1/2" Lead-Free Backflow Preventer - Reduced Pressure Principle Assembly (1/4" - 1/2")

The Zurn Wilkins 12-975XL2SAG is a 1/2" lead-free reduced pressure zone (RPZ) backflow preventer with FNPT connections, approved for high health hazard protection. It features a bronze body. Rated to 175 psi and up to 180°F. This model is certified lead-free for potable-water installations.

The Wilkins 975XL2 Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. The wye pattern, bronze body provides separate access to each check valve and the relief valve for servicing.

Features

• 975XL2 (1/4" - 1/2")
• Top access checks provide easy access for repairs in compact locations
• Short lay length eases replacement and installation costs
• Check and relief valve seats are easily replaceable
• All cast bronze body and stainless steel internals provide corrosion-resistance
• Low-lead law compliant
• ASSE® Listed 1013
• AWWA compliant C511
• CSA® Certified

Common Questions

What hazard level is this RPZ approved for?

It is rated for high health hazard (toxic) cross-connections, so it may be used on either high or low hazard service. The assembly is listed to ASSE 1013.

Is this model legal for potable water?

Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.

Does this assembly have to be tested every year?

Yes. This is a field-testable assembly with 4 test cocks. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.

What shutoff valves are included?

It is supplied with quarter-turn ball valves on the inlet and outlet.

Is this listed for fire protection service?

Yes -- it is UL Classified and C-UL Classified, the listings normally required for a backflow device on a fire sprinkler supply.

Does the relief valve need a drain?

Yes. An RPZ relief valve is designed to discharge, and it can dump a large volume of water, so it must never be installed in a pit or below grade and the discharge must be piped to an adequate drain through an air gap. The air gap fitting is not included with this model and is ordered separately.

Specifications

• Type: Backflow Preventer - Reduced Pressure Principle Assembly (1/4" - 1/2")
• Size: 1/2"
• Connection: FNPT
• Body Material: Bronze
• Max Pressure (psi): 175
• Application: Domestic Water
• Backflow Protection: Both
• MPN: 12-975XL2SAG
• Temperature: up to 180°F
• Certifications: ASSE-1013, AWWA-C511, CSA-B64.4, C-UL, UL, USC, NSF-61, NSF-372, IAPMO
• Lead-Free: Yes
• Assembly Type: RPZ
• Hazard Protection Level: High Health Hazard
• ASSE Standard: ASSE 1013
• USC FCCCHR Approved: Yes
• Fire Protection Listing: UL Classified;C-UL Classified
• Field Testable: Yes
• Number of Test Cocks: 4
• Shutoff Valves: Quarter-Turn Ball
