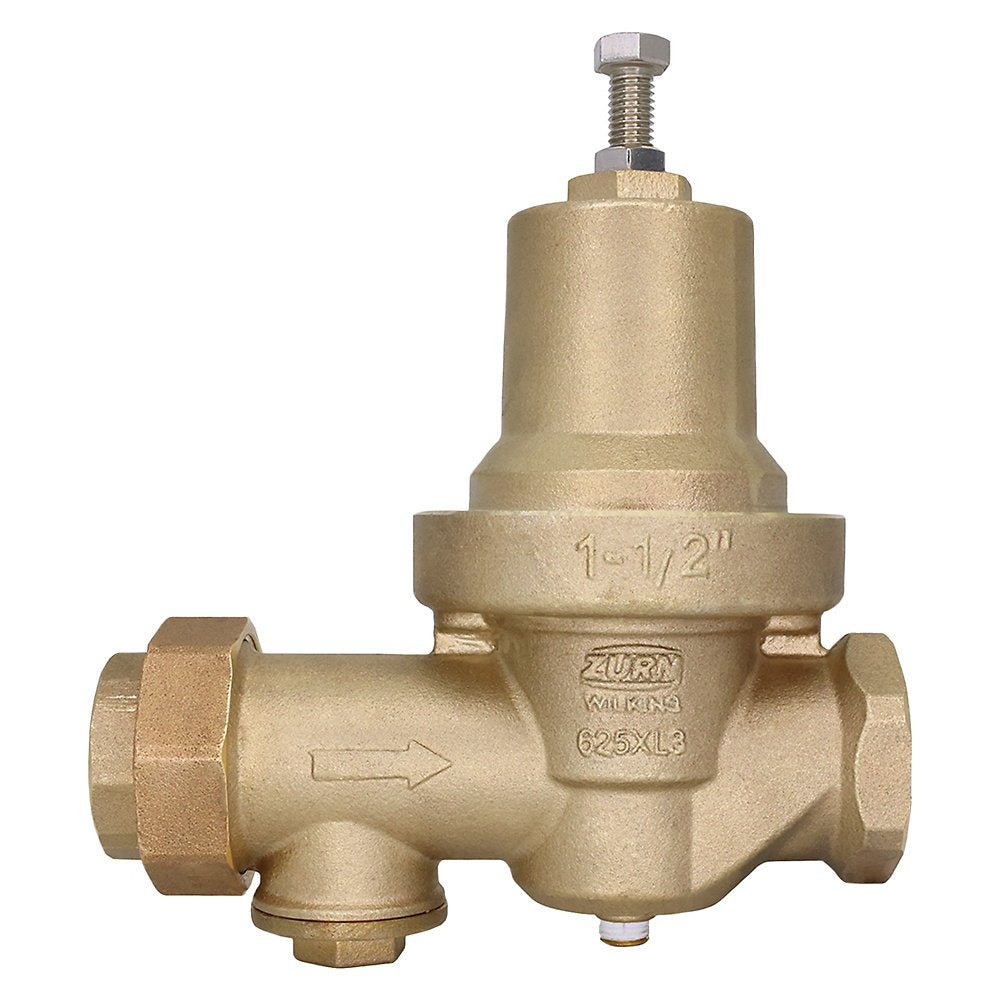

Zurn 112-625XL3 1-1/2" Water Pressure Reducing Valve with Integral Strainer - Competitor Replacement Length with Venturi

The Zurn Wilkins 112-625XL3 is a 1-1/2" pressure reducing valve with single union FNPT connections. It reduces inlet pressure of up to 400 psi to an adjustable 15-75 psi downstream, factory set at 50 psi. It features a lead-free bronze body. Rated to 400 psi and up to 140°F.

The 625XL3 Pressure Reducing Valve with integral strainer works effectively for residential and light commercial water lines providing high-flow rate capacity and low-pressure falloff. The patented venturi technology enables the valve to have best in-class flow performance. The all-bronze body, stainless-steel stem and cartridge internals provide superior corrosion resistance and increases product life offering the ultimate value to the owner.

Features

• Reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience
• Standard stainless internals and sealed cage provide superior durability
• Works effectively for new and retrofit installations
• Cartridge internals enhance repairability
• Enhanced sealing of strainer access port reduces potential for leaks
• Ideal for high-end residential and light commercial use
• Meets the requirements of NSF/ANSI/CAN 61 and 372; is ASSE® Listed; cUPC® Listed; CSA® Certified, and Safe Drinking Water Act compliant
• Same length as competing integral strainer valve

Common Questions

What pressure is it set to out of the box?

112-625XL3 ships factory set at 50 psi. The adjustable reduced-pressure range is 15 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting bolt - loosen the locknut, turn to raise or lower pressure, retighten and verify with a downstream gauge.

Does it include a strainer?

Yes - 112-625XL3 has an integral strainer built into the body, so a separate inline strainer ahead of it is not required. It is accessible for cleaning without removing the valve from the line.

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?

112-625XL3 includes an integral thermal-expansion bypass that relieves excess downstream pressure back toward the supply when street pressure is lower. It is not a substitute for a properly sized expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower than the closed-system pressure.

Specifications

• Type: Water Pressure Reducing Valve with Integral Strainer - Competitor Replacement Length with Venturi
• Size: 1-1/2"
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Connection: FNPT
• Body Material: Lead-Free Bronze
• Max Pressure (psi): 400
• Application: Domestic Water
• MPN: 112-625XL3
• Temperature: up to 140°F
• Certifications: ASSE-1003, IAPMO, CSA-B356, NSF-61, NSF-372
• Factory Set Pressure (psi): 50
• Adjustable Range - Min (psi): 15
• Adjustable Range - Max (psi): 75
• Thermal Expansion Bypass: Yes
• Integral Strainer: Yes
• Gauge: None
• Union Configuration: Single Union
• Capacity Class: Standard
• Regulated Media: Domestic Water
• Bell Housing: Standard
