Zurn 112-600XLC 1-1/2" Lead-Free Water Pressure Reducing Valve with Removable Integral Strainer

The Zurn Wilkins 112-600XLC is a 1-1/2" lead-free pressure reducing valve with single union Sweat connections. It reduces inlet pressure of up to 300 psi to an adjustable 25-75 psi downstream, factory set at 50 psi. It features a lead-free bronze body. Rated to 300 psi and up to 140°F. This model is certified lead-free for potable-water installations.

The 600XL Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals – together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.

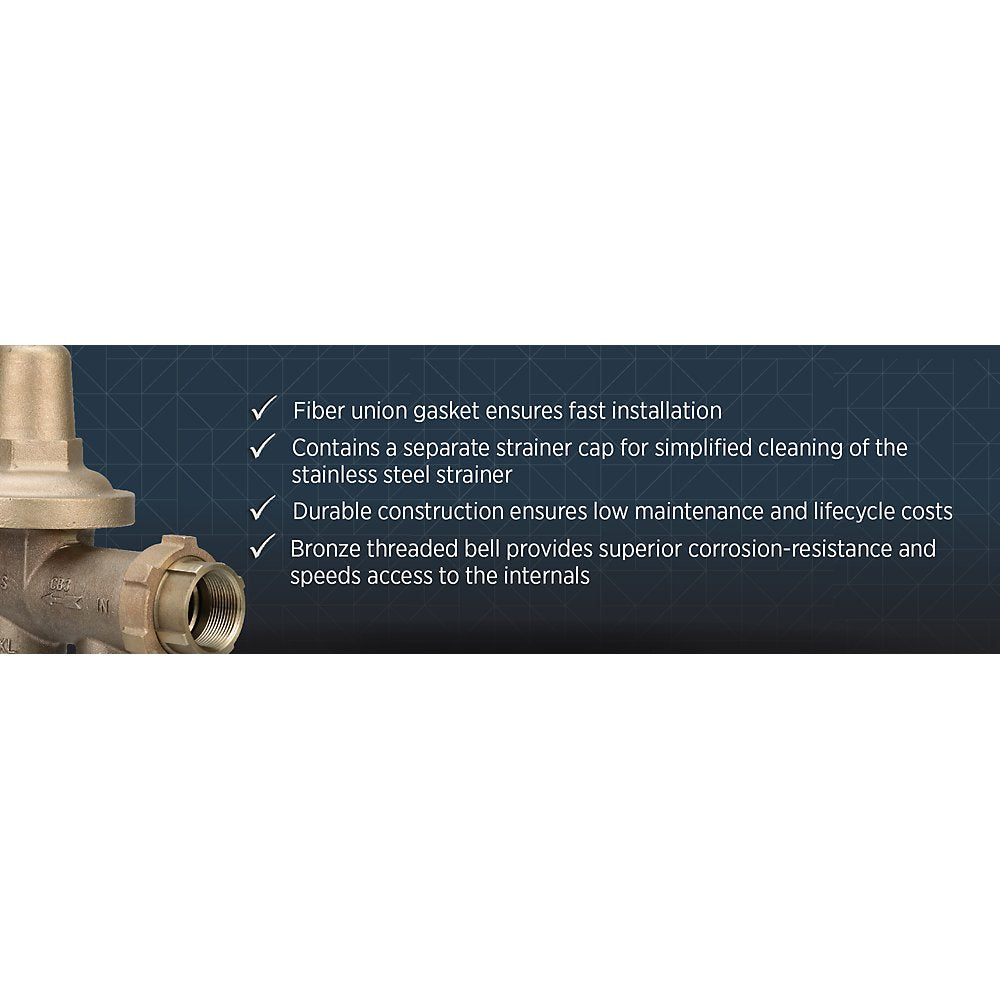

Features

• Fiber union gasket ensures fast installation
• Durable construction ensures low maintenance and lifecycle costs
• Inlet pressure changes with balanced design features to protect the system
• Stainless steel strainer screen features single-cap removal
• Threaded bell provides easier access than bolted on bells
• Low-lead law compliant
• ASSE listed 1003 and IAPMO listed

Common Questions

What pressure is it set to out of the box?

112-600XLC ships factory set at 50 psi. The adjustable reduced-pressure range is 25 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting bolt - loosen the locknut, turn to raise or lower pressure, retighten and verify with a downstream gauge.

Does it include a strainer?

Yes - 112-600XLC has an integral strainer built into the body, so a separate inline strainer ahead of it is not required. It is accessible for cleaning without removing the valve from the line.

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?

112-600XLC includes an integral thermal-expansion bypass that relieves excess downstream pressure back toward the supply when street pressure is lower. It is not a substitute for a properly sized expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower than the closed-system pressure.

Specifications

• Type: Water Pressure Reducing Valve with Removable Integral Strainer
• Size: 1-1/2"
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Connection: Sweat
• Body Material: Lead-Free Bronze
• Max Pressure (psi): 300
• Application: Domestic Water
• MPN: 112-600XLC
• Temperature: up to 140°F
• Certifications: ASSE-1003, IAPMO, CSA, NSF-61
• Lead-Free: Yes
• Factory Set Pressure (psi): 50
• Adjustable Range - Min (psi): 25
• Adjustable Range - Max (psi): 75
• Thermal Expansion Bypass: Yes
• Integral Strainer: Yes
• Gauge: None
• Union Configuration: Single Union
• Capacity Class: Standard
• Regulated Media: Domestic Water
• Bell Housing: Standard
