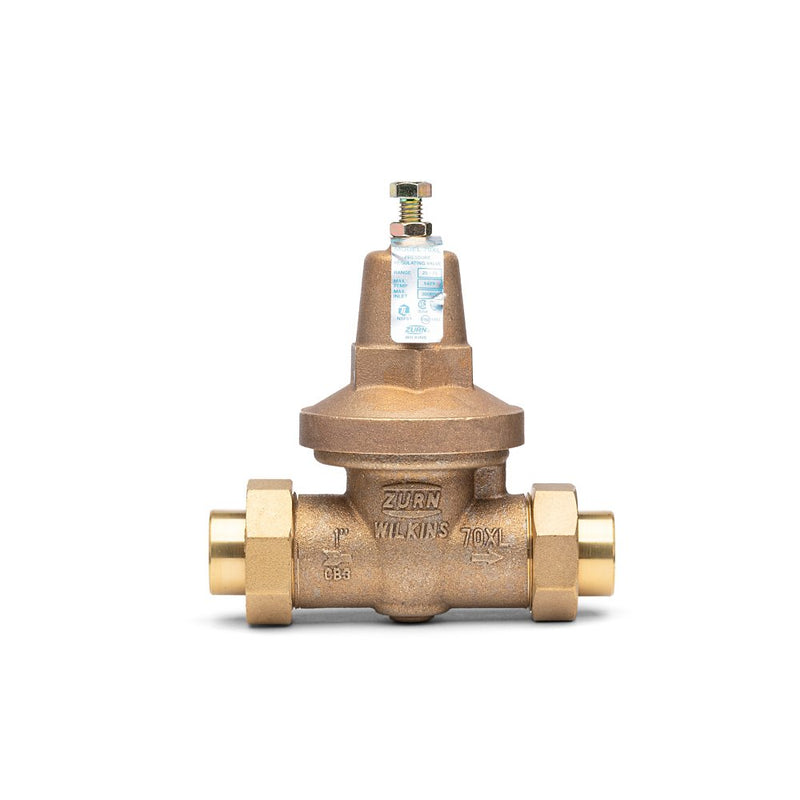

Zurn 1-70XLDUC Lead-Free Water Pressure Reducing Valve with Integral Strainer

The Zurn Wilkins 1-70XLDUC is a 1" lead-free pressure reducing valve with double union Sweat connections. It reduces inlet pressure of up to 300 psi to an adjustable 25-75 psi downstream, factory set at 50 psi. It features a lead-free bronze body. Rated to 300 psi and up to 140°F. This model is certified lead-free for potable-water installations.

The 70XL Pressure Reducing Valve is a contractor favorite, providing a variety of residential and commercial customers with extreme stability, ruggedness, and ease of repair for more than 40 years. The 70XL features single union or double union connections, a cast bronze body and bell with stainless steel components, a 20-mesh strainer screen, and a unitized replaceable cartridge which reduces labor costs and time for required cleaning and maintenance. By installing the 70XL, you will conserve water and energy while protecting your water system, complying with plumbing codes, and ensuring ultimate safety.

Features

• Widest range of end connections provide easy installation
• Cartridge design reduces labor costs and time
• Conserves water and energy
• Lead-free bronze and composite construction offers corrosion-resistance
• Trusted contractor favorite for more than 40 years
• ASSE® Listed 1003
• IAPMO® Listed
• CSA® Certified

Common Questions

What pressure is it set to out of the box?

1-70XLDUC ships factory set at 50 psi. The adjustable reduced-pressure range is 25 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting bolt - loosen the locknut, turn to raise or lower pressure, retighten and verify with a downstream gauge.

Does it include a strainer?

Yes - 1-70XLDUC has an integral strainer built into the body, so a separate inline strainer ahead of it is not required. It is accessible for cleaning without removing the valve from the line.

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?

1-70XLDUC includes an integral thermal-expansion bypass that relieves excess downstream pressure back toward the supply when street pressure is lower. It is not a substitute for a properly sized expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower than the closed-system pressure.

Specifications

• Type: Water Pressure Reducing Valve with Integral Strainer
• Size: 1"
• Inlet Size: 1"
• Outlet Size: 1"
• Connection: Sweat
• Body Material: Lead-Free Bronze
• Max Pressure (psi): 300
• Application: Domestic Water
• MPN: 1-70XLDUC
• Temperature: up to 140°F
• Certifications: ASSE-1003, IAPMO, CSA, NSF-61, NSF-372
• Lead-Free: Yes
• Factory Set Pressure (psi): 50
• Adjustable Range - Min (psi): 25
• Adjustable Range - Max (psi): 75
• Thermal Expansion Bypass: Yes
• Integral Strainer: Yes
• Gauge: None
• Union Configuration: Double Union
• Capacity Class: Standard
• Regulated Media: Domestic Water
• Bell Housing: Standard
