Specifications
Description

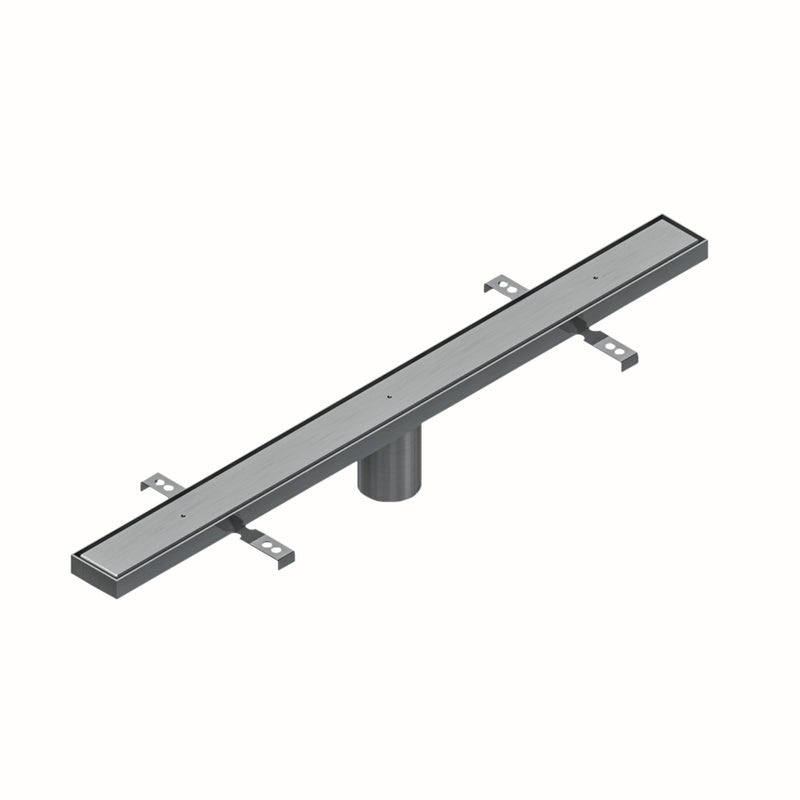

The Watts WSC-342-LR is a stainless trench drain with a 2" Push-On outlet. It features a stainless body.
This Watts ligature resistant waterline shower channel is manufactured from AISI Type 304 stainless steel for durability, long life and superior bacteria resistance. It is 4 inches wide by 42 inches long and features a 2 inch push on bottom outlet for fast and easy installation. It carries a light duty load rating and is both ADA compliant and heel proof.
Features
- Ligature resistant
- AISI Type 304 stainless steel
- 4" wide by 42" long
- 2 in push on bottom outlet
Common Questions
- What pipe does it connect to?
- It has a 2" Push-On outlet. The outlet leaves the bottom of the body.
- Can it take traffic?
- It carries a Light Duty load rating. The grate is heel-proof for walking surfaces.
- What is it made of?
- It has a stainless body.
- Is it suitable for behavioral health facilities?
- Yes. The top is ligature resistant.
Specifications
- Size: 2"
- Outlet Size: 2"
- Connection: Push-On
- Body Material: Stainless
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: WSC-342-LR
- Load Rating: Light Duty
- Heel Proof: Yes
- Ligature Resistant: Yes
- Outlet Orientation: Bottom
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| WSC-342-LR | 098268550764 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 2" | Outlet Size | 2" |
| End Connection | Push-On | — | — |
Details
| Series | WSC-300-LR | Body Material | Stainless |
| Application | Drainage | Heel proof | Yes |
| Ligature resistant | Yes | Load rating | Light Duty |
| Outlet orientation | Bottom | — | — |
Compare with similar products
| Top Size | — | 12"
| — | — | 5"
| — |
| Series | WSC-300-LR
| FD-340-Y
| P777
| U830125
| CO12
| W-PQ21X-16P
|
| Country Of Origin | China
| China
| Mexico
| Mexico
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | — | ||||
| Size Nominal | 2"
| 3"
| 3/8"
| 1/2"
| 4"
| 3/4"
|
| Inlet Size | — | — | — | 1/2"
| — | 3/4"
|
| Outlet Size | 2"
| 3"
| — | 1/2"
| 4"
| — |
| End Connection | Push-On
| No-Hub
| NPT
| Push-to-Connect (CTS)
| Solvent
| MNPT
|
| Body Material | Stainless
| Cast Iron
| Thermoplastic
| Thermoplastic
| — | Stainless
|
| Application | Drainage
| Drainage
| Domestic Water
| — | Drainage
| Hydronic Heating
|
| Max Pressure PSI | — | — | 300.0 psi | — | — | 232.0 psi |
| Pack Qty | — | — | 50
| — | — | 50
|
