Specifications
Description

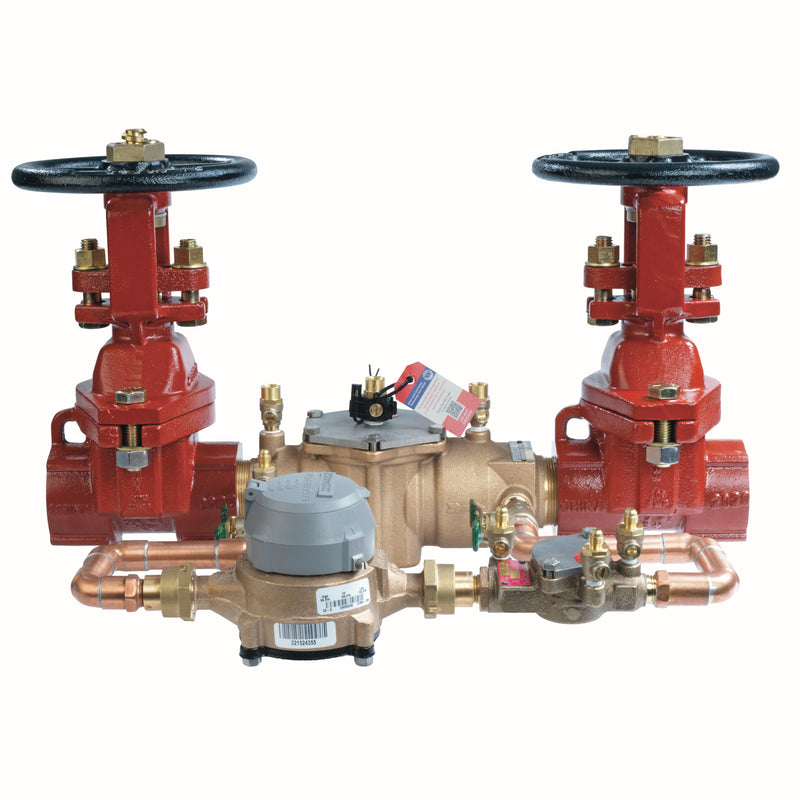

The Watts 007M1DCDA-OSY-GPM-FZ 2 is a 2" double check detector assembly (DCDA), approved for low health hazard protection. It features a bronze body and a silicone seat. Rated to 700 psi.
This 2 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazards such as on fire protection systems and from other contaminants found at the service line entrance. This compact modular design with a single access cover for easy maintenance is approved for horizontal and vertical flow up installation. It consists of a cast bronze body, outside stem and yoke resilient seated gate valves, captured spring check valves, and four test cocks. It comes with a gallon per minute meter to detect underground leaks and unauthorized water use. The double check valve includes a freeze sensor for use with SentryPlus Alert® technology to signal facility personnel when temperature nears and reaches the freezing point. Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), irrigation management systems (IMS).
Features
- Includes a freeze sensor for use with SentryPlus Alert technology to signal facility personnel when temperature nears and reaches the freezing point
- Available freeze sensor connection kit to activate a monitoring system that trigger alerts for low and freezing temperatures
- Cast bronze body construction
- Furnished with a gallon per minute meter
- Freeze alerts feature available with add-on connection kit for Wi-Fi networks, building management systems (BMS), and irrigation management systems (IMS)
- Replaceable seats and discs
- No special tools are required for servicing
- Includes: Test Cocks
Common Questions
- What hazard level is this DCDA approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1048.
- Can this be installed on potable water?
- No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.
- Does this assembly have to be tested every year?
- Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
- What shutoff valves are included?
- It is supplied with outside screw and yoke (OS&Y) gate valves on the inlet and outlet. OS&Y gates give the visible open/shut indication that fire-line and many water-authority specs require.
- Is this suitable for a fire sprinkler line?
- Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified. The bypass meter reads in GPM.
- How does this have to be installed?
- It is approved for either horizontal or vertical installation, with the flow arrow on the body pointing in the direction of flow.
Specifications
- Type: Double Check
- Size: 2"
- Inlet Size: 2"
- Outlet Size: 2"
- Body Material: Bronze
- Seat / Seal Material: Silicone
- Max Pressure (psi): 700
- Application: Fire Protection
- Backflow Protection: Both
- Operation: Continuous
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: 007M1DCDA-OSY-GPM-FZ 2
- Certifications: ASSE-1048, UL, USC
- Lead-Free: No
- Assembly Type: DCDA
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1048
- USC FCCCHR Approved: Yes
- Fire Protection Listing: UL Classified
- Field Testable: Yes
- Shutoff Valves: OSY Gate
- Approved Orientation: Horizontal & Vertical
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: No
- Air Gap Fitting Included: No
- Bypass Meter: GPM
Product Information
Dimensions
| Size Nominal | 2" | Inlet Size | 2" |
| Outlet Size | 2" | — | — |
Details
| Series | 007M1DCDA | Device Type | Double Check |
| Body Material | Bronze | Seat Material | Silicone |
| Application | Fire Protection | Operation | Continuous |
| Max Pressure PSI | 700.0 psi | Backflow Protection | Both |
| Options | Test Cocks | Min Temp °F | 33.0 °F |
| Assembly Type | DCDA | Hazard Rating | Low Health Hazard |
| ASSE Standard | ASSE 1048 | USC Approved | Yes |
| Fire Listing | UL Classified | Testable | Yes |
| Shutoff Valve Type | OSY Gate | Orientation | Horizontal & Vertical |
| Detector Meter | GPM | — | — |
Certifications & Standards
| ASSE-1048 | UL |
| USC | — |
Compare with similar products





| Backflow Protection | Both
| Both
| Both
| Both
| Both
|
| Assembly Type | DCDA
| DCDA
| DCDA
| DCDA
| DCDA
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1048
| ASSE 1048
| ASSE 1048
| ASSE 1048
| ASSE 1048
|
| USC Approved | Yes | Yes | Yes | Yes | Yes |
| Fire Listing | UL Classified
| UL Classified, FM Approved
| UL Classified, FM Approved
| UL Classified, FM Approved
| UL Classified, FM Approved
|
| Testable | Yes | Yes | Yes | Yes | Yes |
| Shutoff Valve Type | OSY Gate
| Butterfly (Grooved)
| Butterfly (Grooved)
| Butterfly (Grooved)
| Butterfly (Grooved)
|
| Detector Meter | GPM
| CFM
| GPM
| CFM
| CFM
|
| Series | 007M1DCDA
| 757DCDA
| 757DCDA
| 757DCDA
| 757DCDA
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | |||||
| Device Type | Double Check
| Double Check
| Double Check
| Double Check
| Double Check
|
| Size Nominal | 2"
| 3"
| 6"
| 6"
| 3"
|
| Inlet Size | 2"
| 3"
| 6"
| 6"
| 3"
|
| Outlet Size | 2"
| 3"
| 6"
| 6"
| 3"
|
| Lead Free | — | Yes | Yes | Yes | Yes |
| End Connection | — | Grooved
| Grooved
| Grooved
| Grooved
|
| Body Material | Bronze
| Stainless
| Stainless
| Stainless
| Stainless
|
| Seat Material | Silicone
| Silicone
| Silicone
| Silicone
| Silicone
|
| Application | Fire Protection
| Fire Protection
| Fire Protection
| Fire Protection
| Fire Protection
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 700.0 psi | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi |
| Max Temp °F | — | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASSE-1048, UL, USC
| UL, FM, USC
| UL, FM, USC
| UL, FM, USC
| UL, FM, USC
|
| Options | Test Cocks
| Test Cocks, Gear Operator, Tamper Switch
| Test Cocks, Gear Operator, Tamper Switch
| Test Cocks, Gear Operator, Tamper Switch
| Test Cocks, Gear Operator, Tamper Switch
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
