Specifications
Description

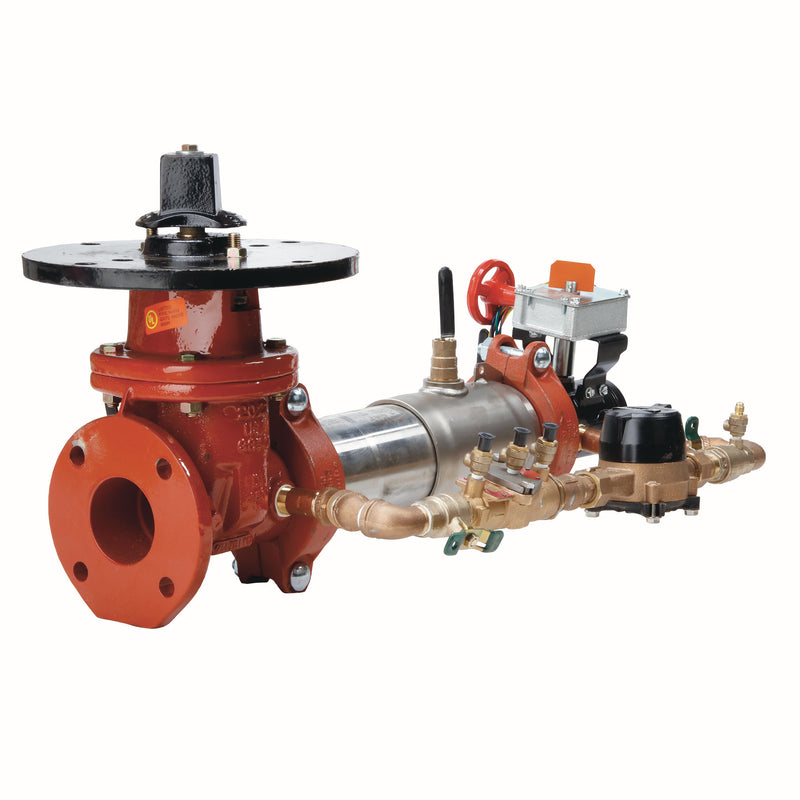

The Watts 757-DCDA BFGXPIV-CFM 3 is a 3" lead-free double check detector assembly (DCDA) with Grooved connections, approved for low health hazard protection. It features a stainless body and a silicone seat. Rated to 175 psi and 33°F to 140°F. This model is certified lead-free for potable-water installations.
This 3" lead free stainless steel double check detector backflow preventer assembly with grooved butterfly valves, post indicator valve and a cubic feet per minute meter measures water flow to detect ground leaks and unauthorized taps. Primarily used on fire line sprinkler systems at referenced cross-connections identified as non-health hazard continuous pressure applications, it prevents the backflow of fire protection substances into the potable water supply and protects against backsiphonage and backpressure. The easy maintenance assembly consists of positive seated thermoplastic independently operating torsion spring check modules, UL/FM grooved gear operated butterfly gate valves with tamper switch and top mounted test cocks. It has a cubic feet meter. The temperature range is 33 to 140 degrees F (0.5 to 60 degrees C). The maximum working pressure is 175 psi (12.1 bar).
Features
- 5/8 x 3/4" bronze meter
- Light weight lead free stainless steel body for long term corrosion protection
- Short lay length for retrofits
- Patented torsion spring design
- Includes: Test Cocks
- Includes: Gear Operator
- Includes: Tamper Switch
Common Questions
- What hazard level is this DCDA approved for?
- It is rated for low health hazard (non-toxic, "pollutant") cross-connections only. Where the substance downstream could be a health hazard, codes require a reduced pressure zone (RPZ) assembly instead. The assembly is listed to ASSE 1048.
- Is this model legal for potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what state plumbing codes require for any device in a drinking-water line.
- Does this assembly have to be tested every year?
- Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
- What shutoff valves are included?
- It is supplied with grooved-end butterfly valves with gear operators on the inlet and outlet.
- Is this suitable for a fire sprinkler line?
- Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified and FM Approved. The bypass meter reads in CFM.
Specifications
- Type: Double Check
- Size: 3"
- Inlet Size: 3"
- Outlet Size: 3"
- Connection: Grooved
- Body Material: Stainless
- Seat / Seal Material: Silicone
- Max Pressure (psi): 175
- Application: Fire Protection
- Backflow Protection: Both
- Operation: Continuous
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: 757-DCDA BFGXPIV-CFM 3
- Temperature: 33°F to 140°F
- Certifications: UL, FM, USC
- Lead-Free: Yes
- Assembly Type: DCDA
- Hazard Protection Level: Low Health Hazard
- ASSE Standard: ASSE 1048
- USC FCCCHR Approved: Yes
- Fire Protection Listing: UL Classified;FM Approved
- Field Testable: Yes
- Shutoff Valves: Butterfly (Grooved)
- Flood Sensor (SentryPlus Alert): No
- Strainer Included: No
- Air Gap Fitting Included: No
- Bypass Meter: CFM
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0112082 | 098268568639 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3" | Inlet Size | 3" |
| Outlet Size | 3" | End Connection | Grooved |
Details
| Series | 757DCDA | Device Type | Double Check |
| Lead Free | Yes | Body Material | Stainless |
| Seat Material | Silicone | Application | Fire Protection |
| Operation | Continuous | Max Pressure PSI | 175.0 psi |
| Max Temp °F | 140.0 °F | Backflow Protection | Both |
| Options | Test Cocks, Gear Operator, Tamper Switch | Min Temp °F | 33.0 °F |
| Assembly Type | DCDA | Hazard Rating | Low Health Hazard |
| ASSE Standard | ASSE 1048 | USC Approved | Yes |
| Fire Listing | UL Classified, FM Approved | Testable | Yes |
| Shutoff Valve Type | Butterfly (Grooved) | Detector Meter | CFM |
Certifications & Standards
| UL | FM |
| USC | — |
Compare with similar products




| Backflow Protection | Both
| Both
| Both
| Both
|
| Assembly Type | DCDA
| DCDA
| DCDA
| DCDA
|
| Hazard Rating | Low Health Hazard
| Low Health Hazard
| Low Health Hazard
| Low Health Hazard
|
| ASSE Standard | ASSE 1048
| ASSE 1048
| ASSE 1048
| ASSE 1048
|
| USC Approved | Yes | Yes | Yes | Yes |
| Fire Listing | UL Classified, FM Approved
| UL Classified, FM Approved
| UL Classified, FM Approved
| UL Classified, FM Approved
|
| Testable | Yes | Yes | Yes | Yes |
| Shutoff Valve Type | Butterfly (Grooved)
| Butterfly (Grooved)
| Butterfly (Grooved)
| Butterfly (Grooved)
|
| Detector Meter | CFM
| CFM
| GPM
| CFM
|
| Series | 757DCDA
| 757DCDA
| 757DCDA
| 757DCDA
|
| Country Of Origin | United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||
| Device Type | Double Check
| Double Check
| Double Check
| Double Check
|
| Size Nominal | 3"
| 3"
| 6"
| 6"
|
| Inlet Size | 3"
| 3"
| 6"
| 6"
|
| Outlet Size | 3"
| 3"
| 6"
| 6"
|
| Lead Free | Yes | Yes | Yes | Yes |
| End Connection | Grooved
| Grooved
| Grooved
| Grooved
|
| Body Material | Stainless
| Stainless
| Stainless
| Stainless
|
| Seat Material | Silicone
| Silicone
| Silicone
| Silicone
|
| Application | Fire Protection
| Fire Protection
| Fire Protection
| Fire Protection
|
| Operation | Continuous
| Continuous
| Continuous
| Continuous
|
| Max Pressure PSI | 175.0 psi | 175.0 psi | 175.0 psi | 175.0 psi |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | UL, FM, USC
| UL, FM, USC
| UL, FM, USC
| UL, FM, USC
|
| Options | Test Cocks, Gear Operator, Tamper Switch
| Test Cocks, Gear Operator, Tamper Switch
| Test Cocks, Gear Operator, Tamper Switch
| Test Cocks, Gear Operator, Tamper Switch
|
| Min Temp °F | 33.0 °F | 33.0 °F | 33.0 °F | 33.0 °F |
