Watts RK 009M2-VT 2 RPZ Backflow Preventer

The Watts RK 009M2-VT 2 is a genuine total relief valve kit for 2" 009M2 reduced pressure zone (RPZ) backflow preventers. It features a rubber seat.

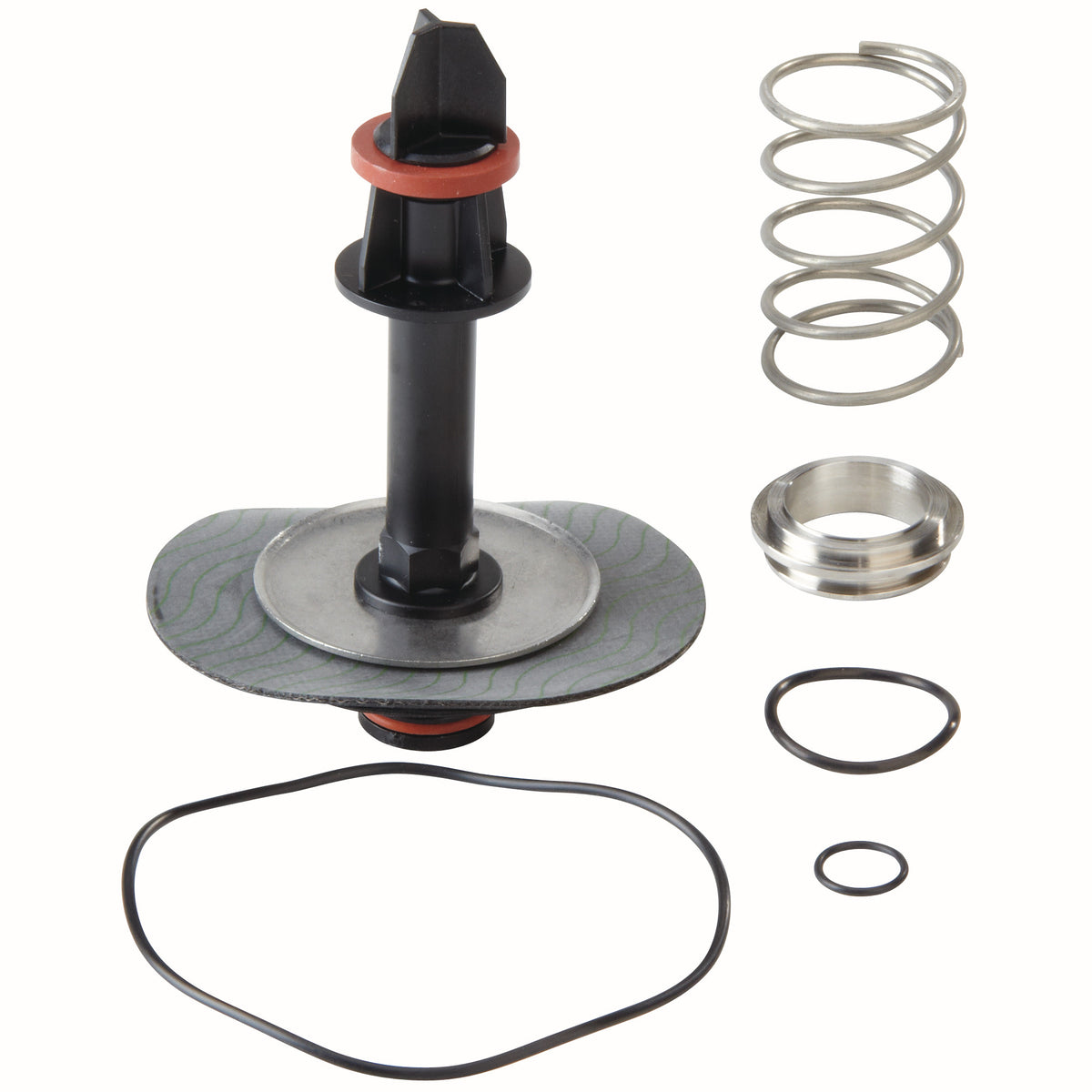

This total relief valve repair kit provides all the parts necessary to repair or replace the relief valve on a 2 inch reduced pressure zone assembly backflow preventer, model 009M2. This kit consists of relief valve assembly, seat, seat O-ring, cover O-ring, sensing passage-ring, upper stem O-ring, and relief valve spring.

Features

• Factory replacement kit
• No special tools required for servicing
• All parts are made of high quality materials
• Serviceable in the field

Common Questions

Will this kit fit my valve?

The RK 009M2-VT 2 fits the 2" size of Watts series 009M2, design revision M2 only. Watts changed internal parts between revisions, so check the model stamped on your valve body or cover before ordering.

What's included in this kit?

This is a total relief valve kit. Kit consists of: relief valve assembly, seat, seat O-ring, cover O-ring, sensing passage-ring, upper stem O-ring, and relief valve spring.

Are these genuine Watts parts?

Yes. This is the factory RK 009M2-VT 2 kit built with genuine Watts OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.

My relief valve failed the test — is this the right kit?

Yes. A relief valve that opens late, weeps continuously or fails to open is a relief valve fault, and this total relief valve kit carries those parts for 009M2. If the checks also failed, a total repair kit rebuilds every subassembly at once.

Specifications

• Type: RPZ
• Seat / Seal Material: Rubber
• Pack Quantity: 6
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: RK 009M2-VT 2
• Lead-Free: No
• Product Role: repair_kit
• Kit Type: Total Relief Valve Kit
• Fits Brand: Watts
• Fits Valve Series: 009
• Fits Model Revision: M2
• Fits Valve Size: 2"
• Used With: 2" 009M2
• Kit Contents: Kit consists of: relief valve assembly, seat, seat O-ring, cover O-ring, sensing passage-ring, upper stem O-ring, and relief valve spring.
• Watts Ordering Code: 0887545
• Genuine OEM Parts: Yes
