The Watts RK 009M2-VT 1 1/4-1 1/2 is a genuine total relief valve kit for 1 1/4" to 1 1/2" 009M2 reduced pressure zone (RPZ) backflow preventers. It features a rubber seat.

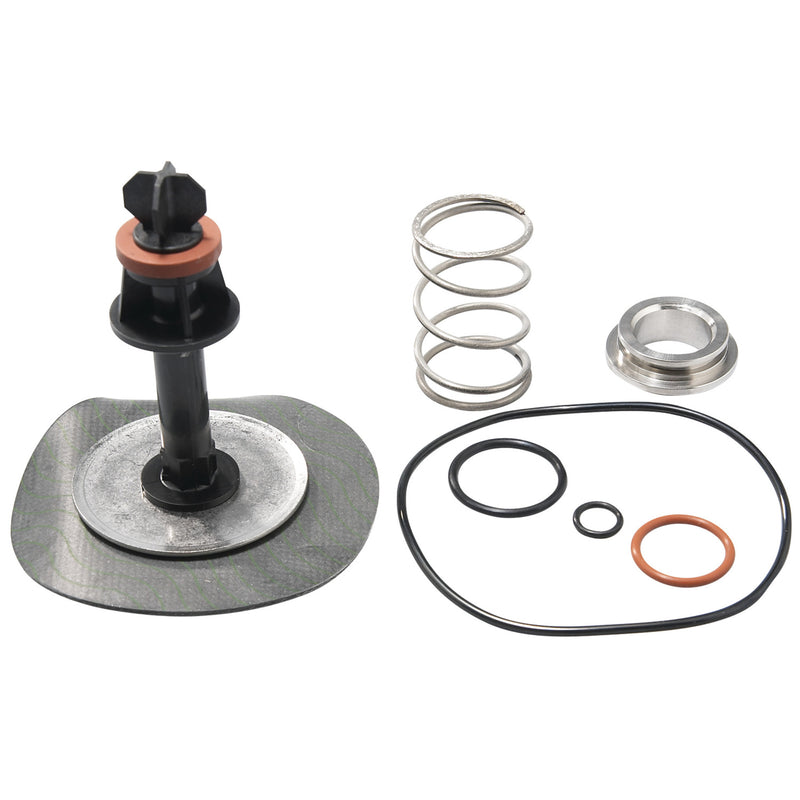

This total relief valve repair kit provides all the parts necessary to repair or replace the relief valve on 1 1/4 and 1 1/2 inch reduced pressure zone assembly backflow preventer, model 009M2. The kit consists of relief valve assembly, seat, seat O-ring, cover O-ring, sensing passage-ring, upper stem O-ring, and relief valve spring.
Features
- Factory replacement kit
- No special tools required for servicing
- All parts are made of high quality materials
- Serviceable in the field
Common Questions
- Will this kit fit my valve?
- The RK 009M2-VT 1 1/4-1 1/2 fits 1 1/4" and 1 1/2" sizes of Watts series 009M2, design revision M2 only. Watts changed internal parts between revisions, so check the model stamped on your valve body or cover before ordering.
- What's included in this kit?
- This is a total relief valve kit. Kit consists of: relief valve assembly, seat, seat O-ring, cover O-ring, sensing passage-ring, upper stem O-ring, and relief valve spring.
- Are these genuine Watts parts?
- Yes. This is the factory RK 009M2-VT 1 1/4-1 1/2 kit built with genuine Watts OEM components. Aftermarket parts can void your assembly approval and are commonly rejected by inspectors at annual test time.
- My relief valve failed the test — is this the right kit?
- Yes. A relief valve that opens late, weeps continuously or fails to open is a relief valve fault, and this total relief valve kit carries those parts for 009M2. If the checks also failed, a total repair kit rebuilds every subassembly at once.
Specifications
-
Type: RPZ
-
Seat / Seal Material: Rubber
-
Pack Quantity: 6
-
Country of Origin: United States
-
Warranty: 1 Year Limited
-
MPN: RK 009M2-VT 1 1/4-1 1/2
-
Lead-Free: No
-
Product Role: repair_kit
-
Kit Type: Total Relief Valve Kit
-
Fits Brand: Watts
-
Fits Valve Series: 009
-
Fits Model Revision: M2
-
Fits Valve Size: 1 1/4";1 1/2"
-
Used With: 1 1/4" 009M2;1 1/2" 009M2
-
Kit Contents: Kit consists of: relief valve assembly, seat, seat O-ring, cover O-ring, sensing passage-ring, upper stem O-ring, and relief valve spring.
-
Watts Ordering Code: 0887307
-
Genuine OEM Parts: Yes
