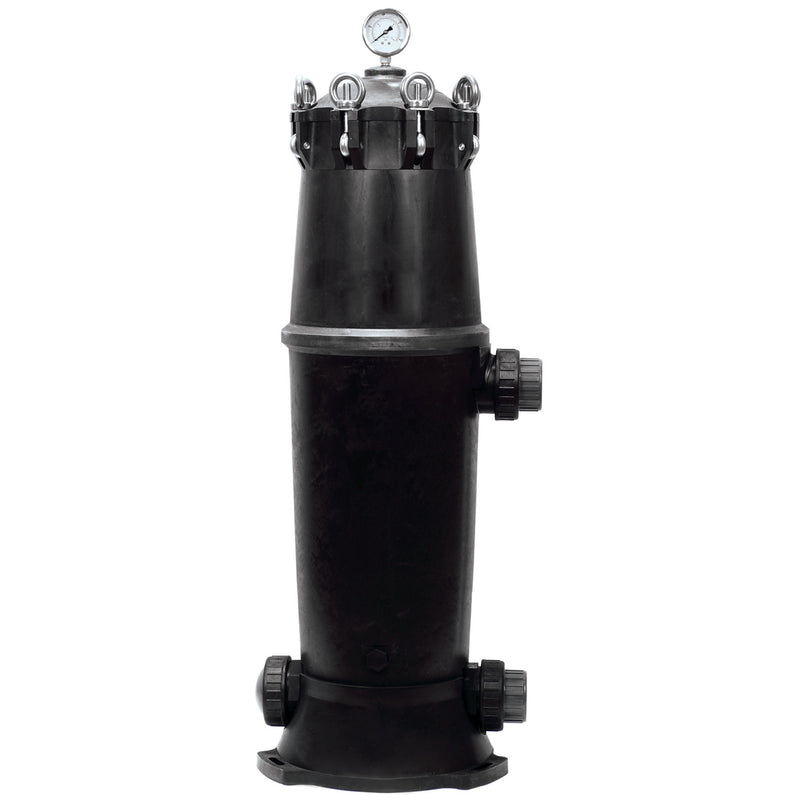

Watts PWWJCHSG 2" Housing, Polypropylene, Compression

The Watts PWWJCHSG is a 40" housing. It features a polypropylene body. Rated to 125 psi and up to 125°F.

This Watts ® jumbo commercial quality filter housing is designed to accept 40 inch jumbo cartridges for easy installation and replacements. It is ideal for convenience and savings. This durable filter housing is constructed of rugged, glass reinforced polypropylene with brass reinforced gauge port so they won't chip, rust or dent. This housing comes with band clamp lid closure, mounting legs, 2 inch MNPT pipe size fittings with pressure gauges installed on inlet and outlet fittings and a compression cap for superior sealing. It is rated for pressures up to 150 psi.

Features

• Filter housing is made of glass reinforced polypropylene
• Will not rust
• Built with two outlets for flexibility
• Ideal for whole house water treatment and commercial filtration

Common Questions

Will it fit my housing?

It is a 40" nominal element. Cartridge and housing must match on this dimension.

Specifications

• Size: 2"
• Inlet Size: 2"
• Outlet Size: 2"
• Connection: Compression
• Body Material: Polypropylene
• Max Pressure (psi): 125
• Application: Water Treatment
• Country of Origin: Taiwan
• Warranty: 1 Year Limited
• MPN: PWWJCHSG
• Temperature: up to 125°F
• Certifications: NSF-61
• Lead-Free: No
• System Role: Housing
• Cartridge / Housing Size: 40"
