Specifications
Description

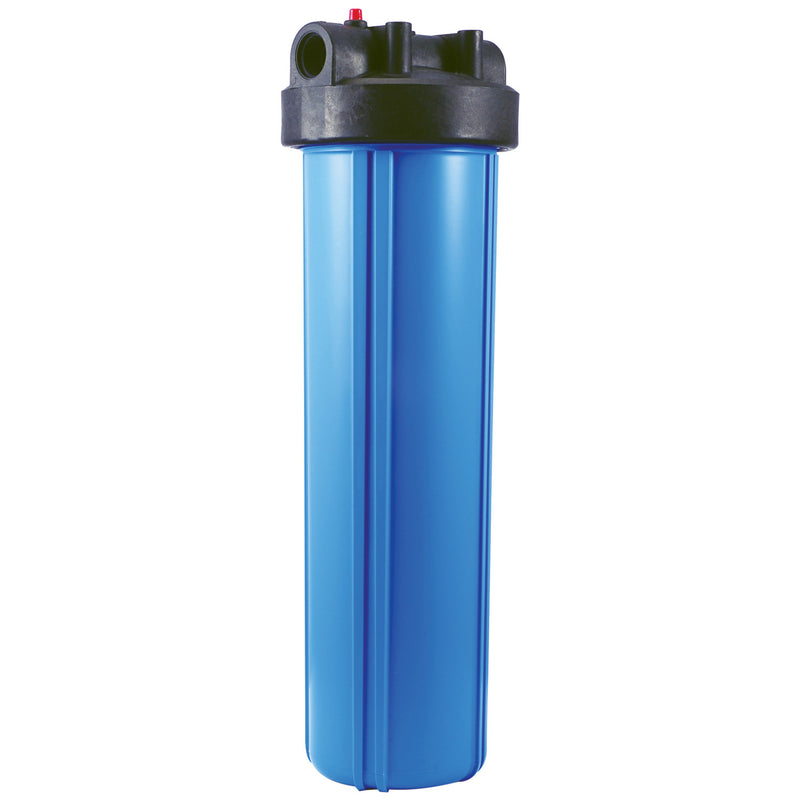

The Watts PWHP20FF1BPR is a 20" housing. It features a polypropylene body. Rated to 100 psi and up to 100°F.
This 20 inch blue housing with a black cap accepts Full Flow filters. The housing cap features a 1 inch NPT pipe size connection with a pressure relief valve. A leak-proof sealing is accomplished by compression against a top seated EPDM O-ring located in the housing's sump. The heavy duty construction is made using high quality FDA grade polypropylene. It has a superior chemical resistance from many aggressive chemicals. The thick side walls and buttress thread design allows for superior sealing and security. It is rated at temperatures up to 125 F (52 C). The water pressure is rated up to 125 psi (8.75 bar).
Features
- 20 Inches long
- Pressure relief valve
- Superior resistance from many aggressive chemicals
- 1" Port connection
Common Questions
- Will it fit my housing?
- It is a 20" nominal element. Cartridge and housing must match on this dimension.
Specifications
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: Compression
- Body Material: Polypropylene
- Max Pressure (psi): 100
- Application: Water Treatment
- Pack Quantity: 4
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: PWHP20FF1BPR
- Temperature: up to 100°F
- Lead-Free: No
- System Role: Housing
- Cartridge / Housing Size: 20"
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 7100293 | 098268564792 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | Compression |
Details
| Series | PWHP | Body Material | Polypropylene |
| Application | Water Treatment | Max Pressure PSI | 100.0 psi |
| Max Temp °F | 100.0 °F | Pack Qty | 4 |
| Cartridge Size | 20" | System role | Housing |
Compare with similar products
| Cartridge Size | 20"
| 20"
| 10"
| 10"
| 10"
| 20"
|
| Series | PWHP
| PWHP HIGH TEMP
| PWHP
| PWHP HIGH TEMP
| PWHIB
| PWHIB
|
| Country Of Origin | China
| Taiwan
| United States
| Taiwan
| Taiwan
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 3/4"
| 1"
| 3/4"
| 1"
| 1"
|
| Inlet Size | 3/4"
| 3/4"
| 1"
| 3/4"
| 1"
| 1"
|
| Outlet Size | 3/4"
| 3/4"
| 1"
| 3/4"
| 1"
| 1"
|
| End Connection | Compression
| Compression
| Compression
| Compression
| — | — |
| Body Material | Polypropylene
| Polypropylene
| Polypropylene
| Polypropylene
| — | — |
| Application | Water Treatment
| Water Treatment
| Water Treatment
| Water Treatment
| Water Treatment
| Water Treatment
|
| Max Pressure PSI | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi |
| Max Temp °F | 100.0 °F | 100.0 °F | 100.0 °F | 100.0 °F | 100.0 °F | 100.0 °F |
| Pack Qty | 4
| 4
| 4
| 4
| 4
| 4
|
