Specifications
Description

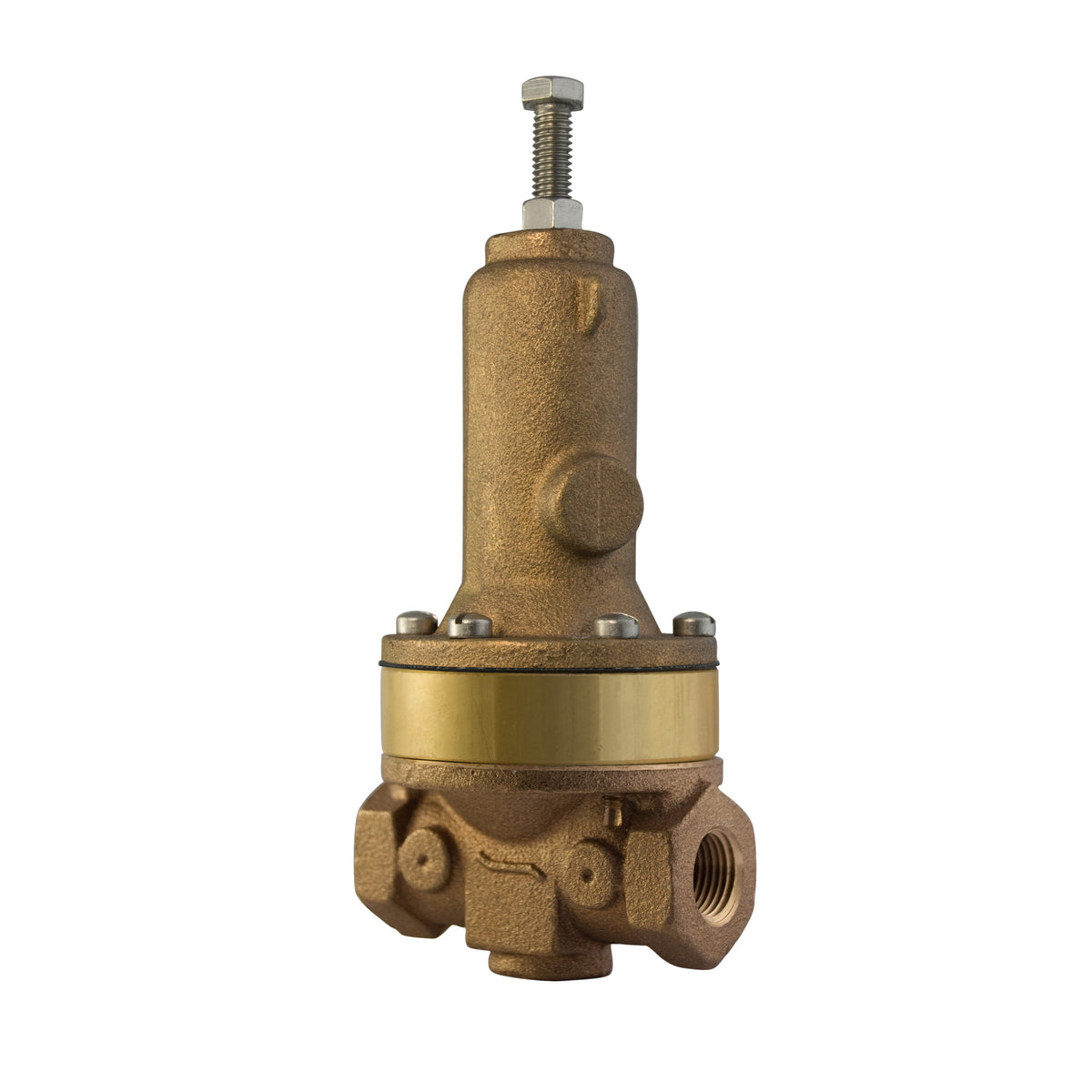

The Watts LFPV20C 20-200 1/2 is a 1/2" lead-free calibrated adjustable pressure relief valve for thermal expansion / general service service, field-adjustable over 20-200 psi. It features a brass body. Rated to 200 psi. This model is certified lead-free for potable-water installations.
This 1/2 inch lead free pressure relief control valve is designed to open when diaphragm senses changes in upstream pressure. It is a direct acting, spring loaded, diaphragm type relief valve that is used as a control or self contained relief valve. The pressure set point is adjustable within the spring range, opening and closing within very close pressure limits. This valve features a lead free brass body, 1/2 NPT inlet and outlet connections, and a large diaphragm and seat area. The adjustable pressure range is 20 to 200 psi.
Features
- Lead free brass body construction
- Provides direct relief control
- Easy to adjust pressure setting
- Serviceable in-line
Common Questions
- What pressure does this relieve at?
- This is a calibrated valve — you set it. It adjusts over 20-200 psi, so it has no factory set point. Set it below the working pressure rating of the equipment you are protecting, and re-check the setting after installation.
- Can I use this on potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what plumbing codes require for any device in a drinking-water line.
Specifications
- Type: Relief
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: NPT
- Body Material: Brass
- Max Pressure (psi): 200
- Pack Quantity: 6
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFPV20C 20-200 1/2
- Lead-Free: Yes
- Relief Type: Calibrated Adjustable
- Adjustment Range: 20-200 psi
- Application: Thermal Expansion / General Service
- Approved for Potable Water: Yes
- SentryPlus Alert Flood Sensor: No
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| 0121270 | 098268582208 | United States | 1 Year Limited |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | NPT |
Details
| Series | LFPV20C | Device Type | Relief |
| Lead Free | Yes | Body Material | Brass |
| Max Pressure PSI | 200.0 psi | Pack Qty | 6 |
| Relief Type | Calibrated Adjustable | Adjustable Range PSI | 20-200 psi PSI |
| Application Class | Thermal Expansion / General Service | Potable Approved | Yes |
Compare with similar products
| Relief Type | Calibrated Adjustable
| Calibrated Adjustable
| Calibrated Adjustable
| Calibrated Adjustable
| Calibrated Adjustable
|
| Adjustable Range PSI | 20-200 psi
| 100-300 psi
| 100-300 psi
| 10-50 psi
| 45-100 psi
|
| Application Class | Thermal Expansion / General Service
| Thermal Expansion / General Service
| Thermal Expansion / General Service
| Pump Bypass Pressure Control
| Pump Bypass Pressure Control
|
| Connection Config | — | MNPT inlet x FNPT outlet
| — | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Potable Approved | Yes | — | Yes | Yes | Yes |
| Series | LFPV20C
| 530C
| LFPV20C
| LFBP30
| LFBP30
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | — | |||
| Device Type | Relief
| Relief
| Relief
| Relief
| Relief
|
| Size Nominal | 1/2"
| 1/2"
| — | 1/2"
| 1/2"
|
| Inlet Size | 1/2"
| 3/4"
| — | 1/2"
| 1/2"
|
| Outlet Size | 1/2"
| 1/2"
| — | 1/2"
| 1/2"
|
| Lead Free | Yes | — | Yes | Yes | Yes |
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Copper
| Copper
|
| Max Pressure PSI | 200.0 psi | 300.0 psi | 300.0 psi | 50.0 psi | 100.0 psi |
| Max Temp °F | — | 180.0 °F | — | 180.0 °F | 180.0 °F |
| Pack Qty | 6
| 50
| 6
| 12
| 12
|
| Options | — | — | — | Bypass
| Bypass
|
