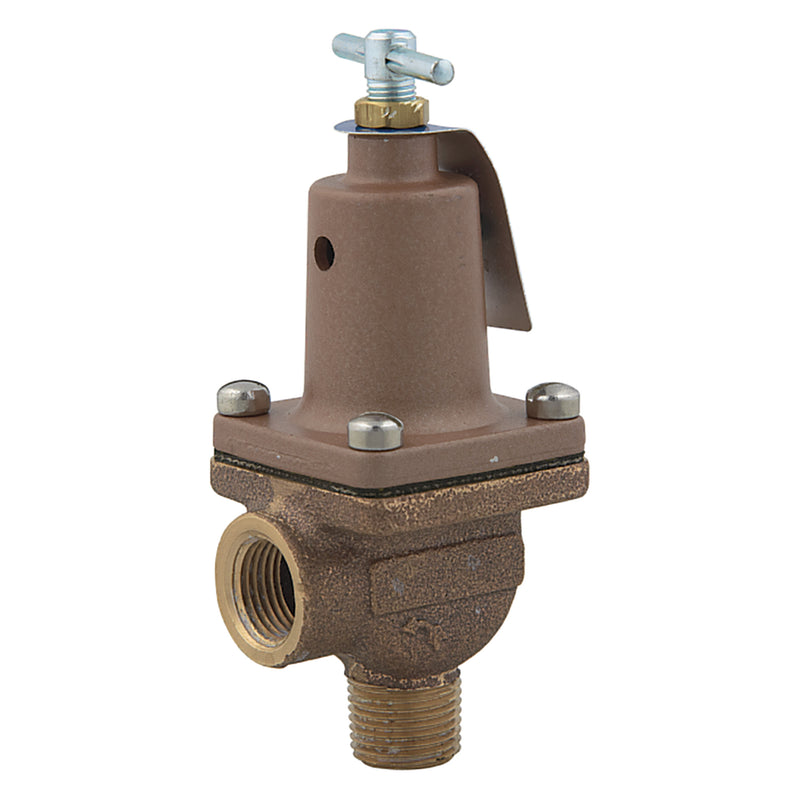

The Watts LFBP30 10-50 1/2 is a 1/2" lead-free calibrated adjustable pressure relief valve for pump bypass pressure control service, field-adjustable over 10-50 psi. It features a copper body. Rated to 50 psi and up to 180°F. This model is certified lead-free for potable-water installations.
This 1/2 inch bypass control relief valve is used in commercial, residential and industrial applications to regulate liquid pressure as supplied by a positive pressure pump. It is a diaphragm-operated type valve that protects equipment by opening at an adjustable range of 10 to 50 psi (0.1 to 3.4 bar) to allow excess volume to be by-passed back to the source. It consists of a lead free alloy body with NPT threaded male inlet and NPT threaded female outlet, sensitive rubber diaphragm, Buna-N disc, tee handle, a spring, and adjustment handle separated from liquid elements.
Features
- Lead free body construction
- Sensitive rubber diaphragm
- T-handle facilitates pressure change
- Adjustable opening pressure range at 45 to 100 psi
- Includes: Bypass
Common Questions
- What pressure does this relieve at?
- This is a calibrated valve — you set it. It adjusts over 10-50 psi, so it has no factory set point. Set it below the working pressure rating of the equipment you are protecting, and re-check the setting after installation.
- Can I use this on potable water?
- Yes. It is certified lead-free to NSF/ANSI 372, which is what plumbing codes require for any device in a drinking-water line.
Specifications
- Type: Relief
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: NPT
- Body Material: Copper
- Max Pressure (psi): 50
- Pack Quantity: 12
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFBP30 10-50 1/2
- Temperature: up to 180°F
- Lead-Free: Yes
- Relief Type: Calibrated Adjustable
- Adjustment Range: 10-50 psi
- Application: Pump Bypass Pressure Control
- Connection Configuration: MNPT inlet x FNPT outlet
- Approved for Potable Water: Yes
- SentryPlus Alert Flood Sensor: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0121399 | 098268584011 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | NPT |
Details
| Series | LFBP30 | Device Type | Relief |
| Lead Free | Yes | Body Material | Copper |
| Max Pressure PSI | 50.0 psi | Max Temp °F | 180.0 °F |
| Pack Qty | 12 | Options | Bypass |
| Relief Type | Calibrated Adjustable | Adjustable Range PSI | 10-50 psi PSI |
| Application Class | Pump Bypass Pressure Control | Connection Config | MNPT inlet x FNPT outlet |
| Potable Approved | Yes | — | — |
Compare with similar products
| Relief Type | Calibrated Adjustable
| Calibrated Adjustable
| Calibrated Adjustable
|
| Adjustable Range PSI | 10-50 psi
| 100-300 psi
| 45-100 psi
|
| Application Class | Pump Bypass Pressure Control
| Thermal Expansion / General Service
| Pump Bypass Pressure Control
|
| Connection Config | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Potable Approved | Yes | — | Yes |
| Series | LFBP30
| 530C
| LFBP30
|
| Country Of Origin | United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | |||
| Device Type | Relief
| Relief
| Relief
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
|
| Inlet Size | 1/2"
| 3/4"
| 1/2"
|
| Outlet Size | 1/2"
| 1/2"
| 1/2"
|
| Lead Free | Yes | — | Yes |
| End Connection | NPT
| NPT
| NPT
|
| Body Material | Copper
| Brass
| Copper
|
| Max Pressure PSI | 50.0 psi | 300.0 psi | 100.0 psi |
| Max Temp °F | 180.0 °F | 180.0 °F | 180.0 °F |
| Pack Qty | 12
| 50
| 12
|
| Options | Bypass
| — | Bypass
|
