Specifications
Description

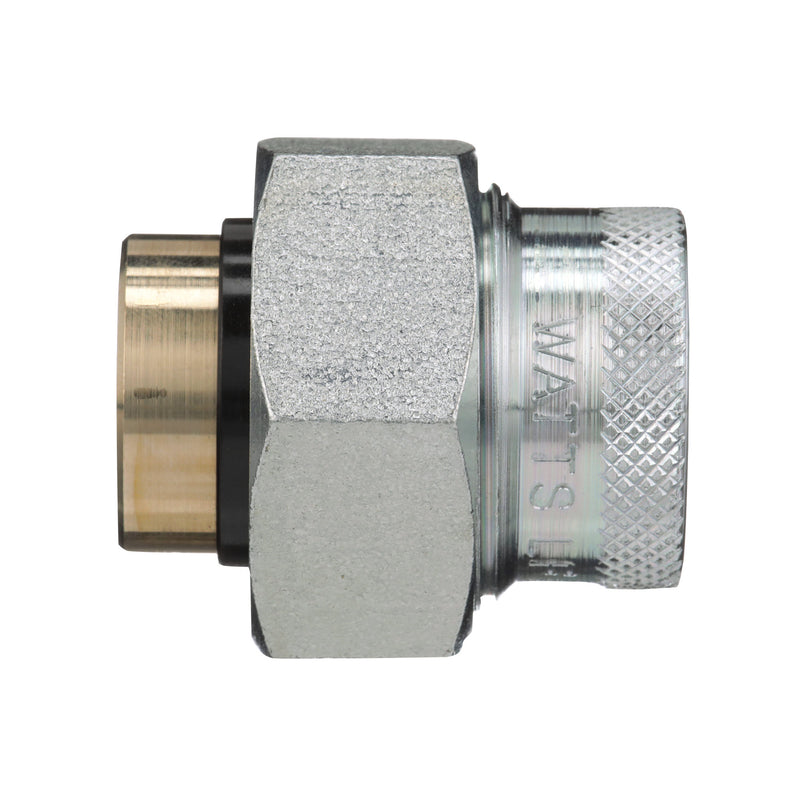

The Watts LF3001A 3/4 is a lead-free Sweat union. This model is certified lead-free for potable-water installations.
This 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces, and a Buna-N gasket. The gasket separates the tailpieces to prevent an electric current from occurring.
Features
- Buna-N gasket
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 degrees F (82 degrees C)
- FIP thread to solder connections
- Designed and manufactured to the highest quality standards
- Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover
- Meets federal specifications for tensile strength and thread end connections
Common Questions
- How does it join the pipe?
- It is a Sweat fitting.
- Why use a dielectric fitting here?
- It electrically isolates dissimilar metals, which stops the galvanic corrosion you get joining copper straight to steel.
Specifications
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: Sweat
- Application: Gas
- Pack Quantity: 24
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF3001A 3/4
- Lead-Free: Yes
- Fitting Type: Union
- Connection System: Sweat
- Dielectric Isolation: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0009865 | 098268430202 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | Sweat |
Details
| Series | LF3001A | Lead Free | Yes |
| Application | Gas | Pack Qty | 24 |
| Connection system | Sweat | Dielectric | Yes |
| Fitting type | Union | — | — |
Compare with similar products
| Series | LF3001A
| LF3001A
| LF3001A
| LF3001A
| LF4001E
| LF4001E
|
| Country Of Origin | United States
| China
| United States
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 3/4"
| 1-1/4"
| 1"
| 1"
| 2"
|
| Inlet Size | 3/4"
| 3/4"
| 1-1/4"
| 1"
| 1"
| 2"
|
| Outlet Size | 3/4"
| 3/4"
| 1-1/4"
| 1"
| 1"
| 2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Sweat
| Sweat
| Sweat
| Sweat
| Sweat
| Sweat
|
| Application | Gas
| Gas
| Gas
| Gas
| Gas
| Gas
|
| Pack Qty | 24
| 24
| 12
| 12
| 12
| 6
|
