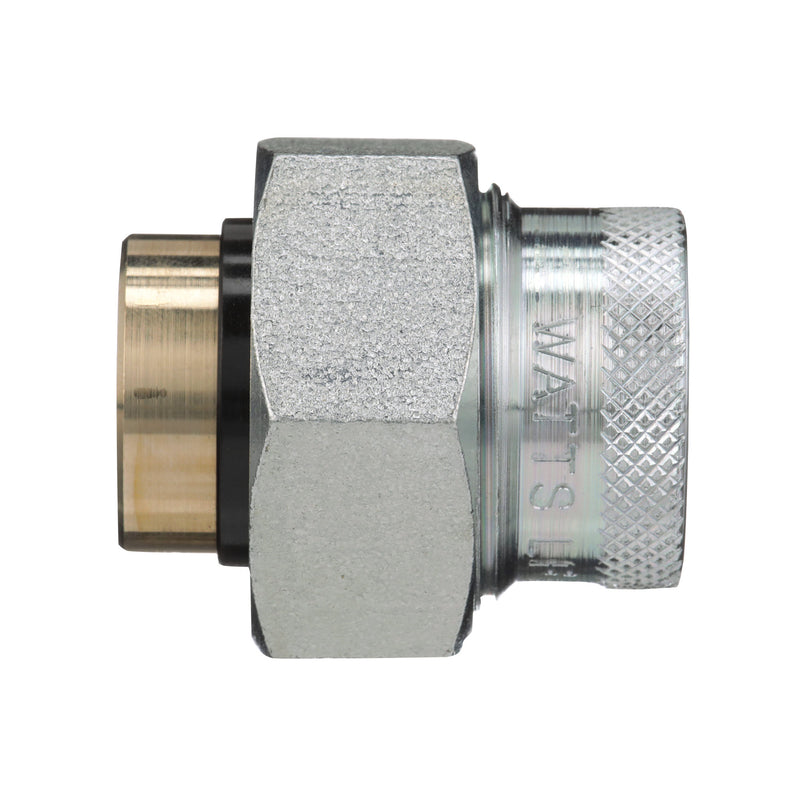

Watts LF3001-GB 3/4 Lead-Free Union, Sweat

The Watts LF3001-GB 3/4 is a lead-free Sweat union. This model is certified lead-free for potable-water installations.

This 3/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connections, union nut, two tailpieces, and an EPDM gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 300 degrees F (149 degrees C) at 50 psi (3.4 bar).

Features

• EPDM gasket for use in steam or hot water applications
• Maximum pressure is 50 psi (3.4 bar)
• Maximum temperature 300 degrees F (149 degrees C)
• FIP thread to solder connections

Common Questions

How does it join the pipe?

It is a Sweat fitting.

Why use a dielectric fitting here?

It electrically isolates dissimilar metals, which stops the galvanic corrosion you get joining copper straight to steel.

Specifications

• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Sweat
• Application: Gas
• Pack Quantity: 24
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LF3001-GB 3/4
• Lead-Free: Yes
• Fitting Type: Union
• Connection System: Sweat
• Dielectric Isolation: Yes
