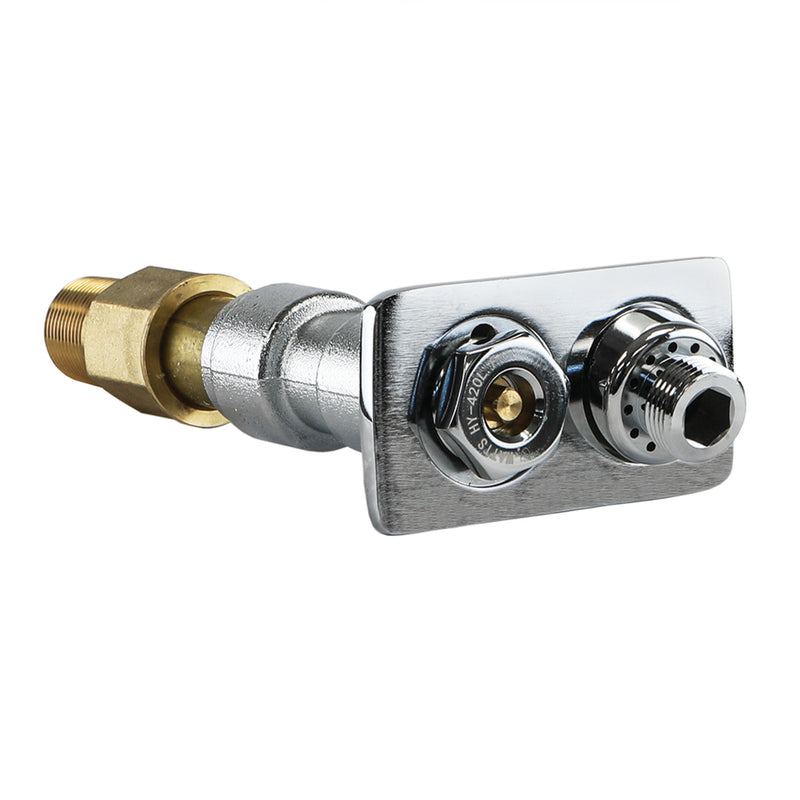

The Watts HY-420-16 is a 3/4" non-freeze wall hydrant for commercial installations. It opens with a tamper-resistant loose key; includes an integral vacuum breaker for backflow protection. The inlet is FNPT and the outlet is 3/4" MHT hose thread. It is sized for a 16" wall. It features a bronze body. Rated to 125 psi.
This Watts Drains non-freeze, key operated wall hydrant features a chrome plated face, an integral vacuum breaker, all bronze head, seat casting, wall casing and internal working parts, and a loose key. It has a 3/4 inch MIP hose connection, 3/4 inch FIP by 1 inch MIP pipe connection, a 125 psi maximum operating pressure and is designed to fit a 16 inch wall.
Features
- Non-freeze
- Key operated
- 16 inch wall
- Vacuum breaker
Common Questions
- Will it work in my wall thickness?
- This one is built for a 16" wall. Measure from the outside face of the finished wall to the inside surface where the supply line lands, then pick the length that puts the valve seat inside the heated space -- long enough is better than short. This series is stocked in other lengths, so match the number in the model to your wall rather than forcing this one.
- Is it freeze-proof, and will it drain itself?
- Yes on both. The valve seat sits at the inside end of the casing, inside the heated wall, and the barrel drains automatically every time you shut it off. Two conditions: pitch the casing slightly down toward the outside, and take the hose off for the winter -- a hose left attached traps water in the barrel and can split it no matter how the hydrant is rated.
- Does it have a built-in vacuum breaker (anti-siphon)?
- Yes -- the vacuum breaker is integral, so you do not add anything at the hose outlet. It protects the potable supply against backsiphonage from a hose left in a bucket, a pool, or a chemical sprayer when the main loses pressure. It is designed to ASSE 1019.
- Do I need a key to operate it?
- Yes -- it is key operated, which is the tamper resistance you are buying: no handle sticks out for anyone to open. A loose key is supplied with the hydrant; order spares if the building has several, because losing the only key means no water.
Specifications
-
Size: 3/4"
-
Outlet Size: 3/4"
-
Connection: FNPT
-
Body Material: Bronze
-
Max Pressure (psi): 125
-
Application: Domestic Water
-
Country of Origin: Taiwan
-
Warranty: 1 Year Limited
-
MPN: HY-420-16
-
Certifications: ASSE-1019, IAPMO
-
Lead-Free: No
-
Hydrant Type: Non-Freeze Wall Hydrant
-
Freeze Proof: Yes
-
Wall Thickness (in): 16
-
Anti-Siphon (Integral Vacuum Breaker): Yes
-
Mounting: Exposed
-
Operation: Loose Key
-
Grade: Commercial
-
Self-Draining: Yes
-
Hose Outlet: 3/4" MHT
-
Face Finish: Chrome Plated
