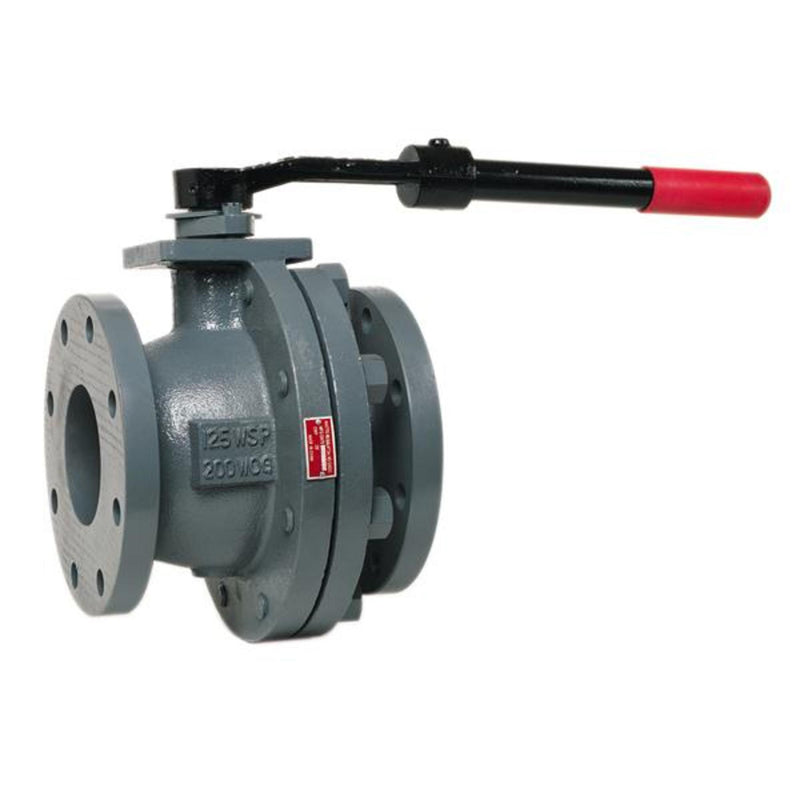

The Watts G4000-M1 6 is a 6" 2-piece full port ball valve with Flanged connections. It features a cast iron body and a ptfe seat. Rated to 200 psi and up to 353°F.
This 2-Piece Full Port Cast Iron Flanged Ball Valve, 6" Watts Model G4000M1, is used in commercial HVAC and steam applications. It features a 125 psi steam rating, stainless steel ball and stem, PTFE seat and packing, a steel-plated stop plate, and a ductile iron handle. It has a quarter turn operation, positive shutoff, and is ideal in replacing old cast iron gate valves.
Features
- Cast iron
- Flanged
- Full port
- Stainless steel ball and stem
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 6" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- What's the steam rating?
- 125 psi WSP (saturated steam). Do not size steam service off the 200 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 6"
- Inlet Size: 6"
- Outlet Size: 6"
- Connection: Flanged
- Body Material: Cast Iron
- Seat / Seal Material: PTFE
- Max Pressure (psi): 200
- Application: Steam
- Port Style: Full
- Ways: 2-Way
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: G4000-M1 6
- Temperature: up to 353°F
- Lead-Free: No
- Valve Construction: 2-Piece
- Ball Material: Stainless Steel
- Stem Material: Stainless Steel
- Handle Type: Lever
- Actuation: Manual
- Max Steam Pressure (WSP): 125
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
Dimensions
| Size Nominal | 6" | Inlet Size | 6" |
| Outlet Size | 6" | End Connection | Flanged |
Details
| Series | G4000M1 | Device Type | Ball |
| Body Material | Cast Iron | Seat Material | PTFE |
| Application | Steam | Port Style | Full |
| Max Pressure PSI | 200.0 psi | Max Temp °F | 353.0 °F |
| Valve Ways | 2-Way | Body Construction | 2-Piece |
| Ball Material | Stainless Steel | Stem Material | Stainless Steel |
| Handle Type | Lever | Actuation | Manual |
| WSP PSI | 125.0 psi | — | — |
