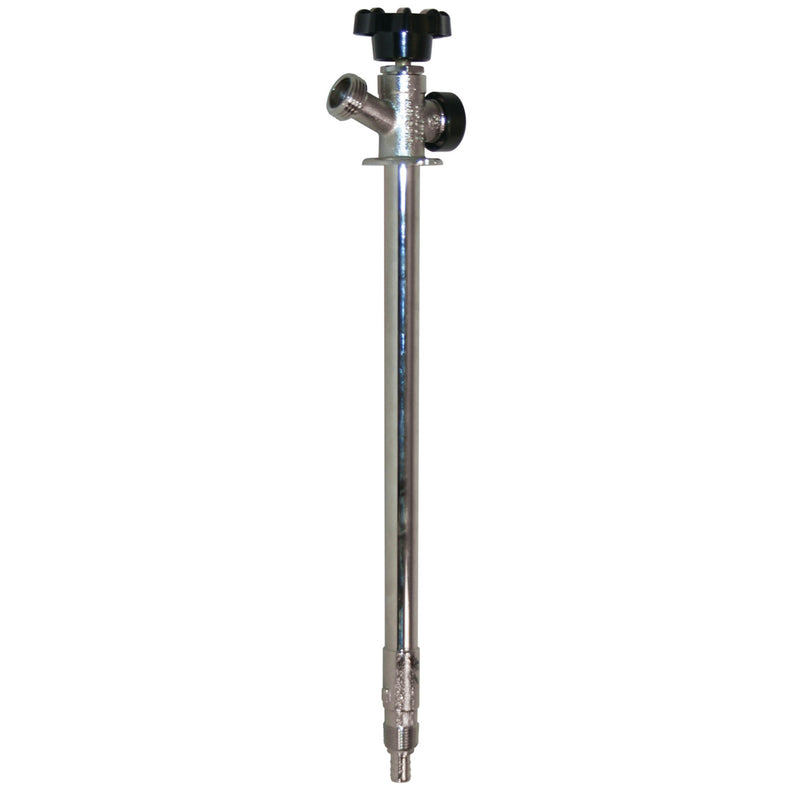

The Watts FHB-1-PEX 8 is a 3/4" frost-proof wall hydrant for residential installations. It opens with a handwheel; includes an integral vacuum breaker for backflow protection. The inlet is 1/2" PEX and the outlet is 3/4" MHT hose thread. It is sized for an 8" wall. It features a brass body.
This Freezeless Wall Hydrant with Backflow Preventer, 8" Watts Model FHB-1-PEX, is used in commercial and residential applications to provide freeze protection and backflow protection of the external water supply. It has a brass body construction with nickel-plated finish and PEX inlet connection.
Features
- PEX inlet
- Automatically self drains
- Frost proof
- Backflow protection
Common Questions
- Will it work in my wall thickness?
- This one is built for an 8" wall. Measure from the outside face of the finished wall to the inside surface where the supply line lands, then pick the length that puts the valve seat inside the heated space -- long enough is better than short. This series is stocked in other lengths, so match the number in the model to your wall rather than forcing this one.
- Is it freeze-proof, and will it drain itself?
- Yes on both. The valve seat sits at the inside end of the casing, inside the heated wall, and the barrel drains automatically every time you shut it off. Two conditions: pitch the casing slightly down toward the outside, and take the hose off for the winter -- a hose left attached traps water in the barrel and can split it no matter how the hydrant is rated.
- Does it have a built-in vacuum breaker (anti-siphon)?
- Yes -- the vacuum breaker is integral, so you do not add anything at the hose outlet. It protects the potable supply against backsiphonage from a hose left in a bucket, a pool, or a chemical sprayer when the main loses pressure. It is designed to ASSE 1019.
- Do I need a key to operate it?
- No key. It opens with a handwheel that stays on the valve, so anyone can turn it on by hand. If you want it tamper resistant instead, look at the key-operated HY series.
Specifications
-
Size: 3/4"
-
Inlet Size: 1/2"
-
Outlet Size: 3/4"
-
Connection: PEX
-
Body Material: Brass
-
Application: Domestic Water
-
Pack Quantity: 20
-
Country of Origin: China
-
Warranty: 1 Year Limited
-
MPN: FHB-1-PEX 8
-
Certifications: ASSE-1019
-
Lead-Free: No
-
Hydrant Type: Frost-Proof Wall Hydrant
-
Freeze Proof: Yes
-
Wall Thickness (in): 8
-
Anti-Siphon (Integral Vacuum Breaker): Yes
-
Mounting: Exposed
-
Operation: Handwheel
-
Grade: Residential
-
Self-Draining: Yes
-
Hose Outlet: 3/4" MHT
-
Face Finish: Nickel Plated
