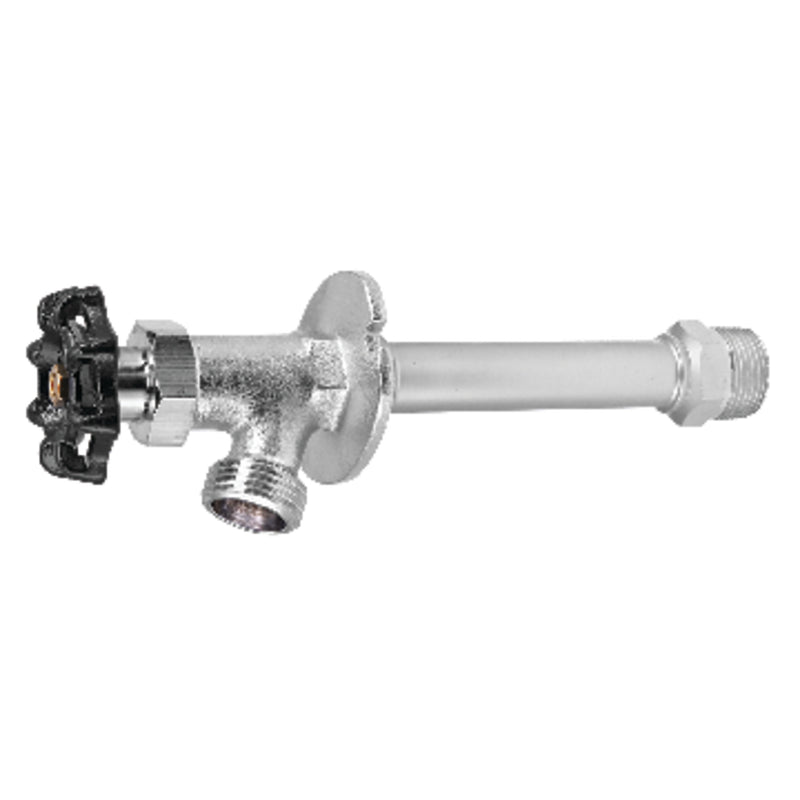

The Watts FH-1-M1 12 is a 3/4" frost-proof wall hydrant for residential installations. It opens with a handwheel. The inlet is 1/2" Sweat and the outlet is 3/4" MHT hose thread. It is sized for a 12" wall. It features a brass body.
This 12 inch frost-proof automatic draining wall hydrant is used in commercial and residential applications to provide freeze protection for external water supply. It has a positive seat water shutoff and an automatic self-draining feature. This wall hydrant includes a brass body with a nickel-plated finish, steel handwheel, 3/4 inch hose outlet and either 1/2 inch solder or male IPS inlet connection.
Features
- 3/4 inch hose outlet
- Automatically self drains
- Frost proof design
- Positive seat water shutoff
Common Questions
- Will it work in my wall thickness?
- This one is built for a 12" wall. Measure from the outside face of the finished wall to the inside surface where the supply line lands, then pick the length that puts the valve seat inside the heated space -- long enough is better than short. This series is stocked in other lengths, so match the number in the model to your wall rather than forcing this one.
- Is it freeze-proof, and will it drain itself?
- Yes on both. The valve seat sits at the inside end of the casing, inside the heated wall, and the barrel drains automatically every time you shut it off. Two conditions: pitch the casing slightly down toward the outside, and take the hose off for the winter -- a hose left attached traps water in the barrel and can split it no matter how the hydrant is rated.
- Does it have a built-in vacuum breaker (anti-siphon)?
- No, this model has no vacuum breaker. Where the code requires backflow protection on a hose connection, plan on an add-on breaker at the outlet, or choose a model with an integral vacuum breaker.
- Do I need a key to operate it?
- No key. It opens with a handwheel that stays on the valve, so anyone can turn it on by hand. If you want it tamper resistant instead, look at the key-operated HY series.
Specifications
-
Size: 3/4"
-
Inlet Size: 1/2"
-
Outlet Size: 3/4"
-
Connection: Sweat
-
Body Material: Brass
-
Application: Domestic Water
-
Pack Quantity: 40
-
Country of Origin: China
-
Warranty: 1 Year Limited
-
MPN: FH-1-M1 12
-
Lead-Free: No
-
Hydrant Type: Frost-Proof Wall Hydrant
-
Freeze Proof: Yes
-
Wall Thickness (in): 12
-
Anti-Siphon (Integral Vacuum Breaker): No
-
Mounting: Exposed
-
Operation: Handwheel
-
Grade: Residential
-
Self-Draining: Yes
-
Hose Outlet: 3/4" MHT
-
Face Finish: Nickel Plated
