Specifications
Description

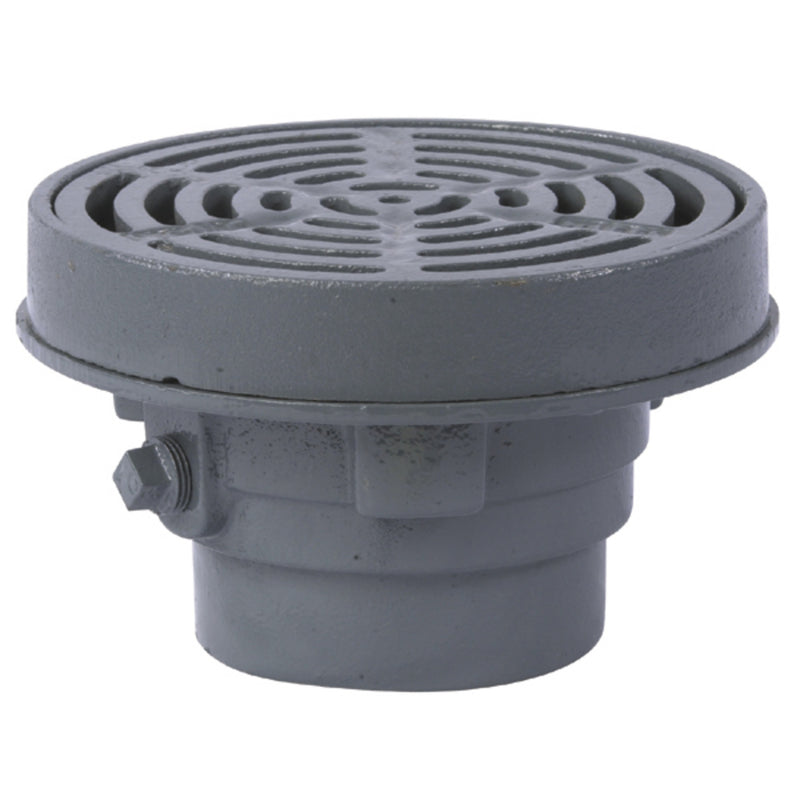

The Watts FD-323-Y-US is a epoxy-coated cast iron floor drain with a 2" No-Hub outlet. It features a cast iron body.
This Watts cast iron floor drain is epoxy coated for long life. It features an 8 inch round, fixed, cast iron top with heel proof ductile iton grate, anchor flange, and weepholes. A 2 inch no hub outlet allows for easy installation. It is BAA compliant and carries an XHD load rating.
Features
- Epoxy coated cast iron
- No hub connection
- Fixed top
- 8" CI Top with DI grate
Common Questions
- What size is the strainer or grate?
- The top is 8" round.
- What pipe does it connect to?
- It has a 2" No-Hub outlet.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 2"
- Outlet Size: 2"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: FD-323-Y-US
- Top Material: Cast Iron
- Top Shape: Round
- Top / Strainer Size: 8"
- Spec.Coating: Epoxy
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| FD-323-Y-US | 098268246827 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 2" | Outlet Size | 2" |
| End Connection | No-Hub | — | — |
Details
| Series | FD-320-Y | Body Material | Cast Iron |
| Application | Drainage | Top Size | 8" |
| Coating | Epoxy | Heel proof | Yes |
| Top material | Cast Iron | Top shape | Round |
Compare with similar products
| Top Size | 8"
| 12"
| 5"
|
| Series | FD-320-Y
| FD-340-Y
| CO12
|
| Country Of Origin | United States
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | ||
| Size Nominal | 2"
| 3"
| 4"
|
| Outlet Size | 2"
| 3"
| 4"
|
| End Connection | No-Hub
| No-Hub
| Solvent
|
| Body Material | Cast Iron
| Cast Iron
| — |
| Application | Drainage
| Drainage
| Drainage
|
