Specifications
Description

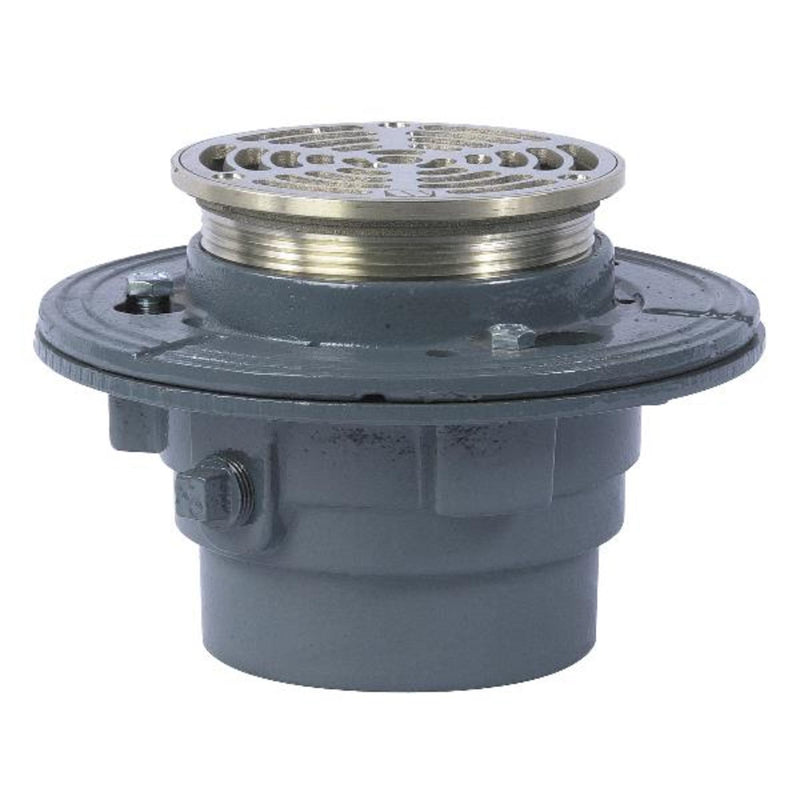

The Watts FD-104P-A5-US is a epoxy-coated cast iron floor drain with a 4" Push-On outlet. It features a cast iron body.
This Watts cast iron floor drain is epoxy coated for long life. It features a 5 inch round, adjustable, heel proof nickel bronze strainer, anchor flange, and a reversible clamping collar with primary and secondary weepholes. A 4 inch push on outlet allows for easy installation. It is BAA compliant and carries a MD load rating.
Features
- Epoxy coated cast iron
- Push on connection
- Adjustable top
- 5" NB Strainer
Common Questions
- What size is the strainer or grate?
- The top is 5". It adjusts vertically to the finished floor.
- What pipe does it connect to?
- It has a 4" Push-On outlet.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 4"
- Outlet Size: 4"
- Connection: Push-On
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: FD-104P-A5-US
- Top Material: Nickel Bronze
- Top / Strainer Size: 5"
- Spec.Coating: Epoxy
- Spec.Adjustable: Yes
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| FD-104P-A5-US | 098268246674 | United States | 1 Year Limited |
Dimensions
| Size Nominal | 4" | Outlet Size | 4" |
| End Connection | Push-On | — | — |
Details
| Series | FD-100-A | Body Material | Cast Iron |
| Application | Drainage | Top Size | 5" |
| Adjustable | Yes | Coating | Epoxy |
| Heel proof | Yes | Top material | Nickel Bronze |
Compare with similar products
| Top Size | 5"
| 12"
| — | — | 5"
| — |
| Series | FD-100-A
| FD-340-Y
| P777
| U830125
| CO12
| W-PQ21X-16P
|
| Country Of Origin | United States
| China
| Mexico
| Mexico
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | — | — | |||
| Size Nominal | 4"
| 3"
| 3/8"
| 1/2"
| 4"
| 3/4"
|
| Inlet Size | — | — | — | 1/2"
| — | 3/4"
|
| Outlet Size | 4"
| 3"
| — | 1/2"
| 4"
| — |
| End Connection | Push-On
| No-Hub
| NPT
| Push-to-Connect (CTS)
| Solvent
| MNPT
|
| Body Material | Cast Iron
| Cast Iron
| Thermoplastic
| Thermoplastic
| — | Stainless
|
| Application | Drainage
| Drainage
| Domestic Water
| — | Drainage
| Hydronic Heating
|
| Max Pressure PSI | — | — | 300.0 psi | — | — | 232.0 psi |
| Pack Qty | — | — | 50
| — | — | 50
|
