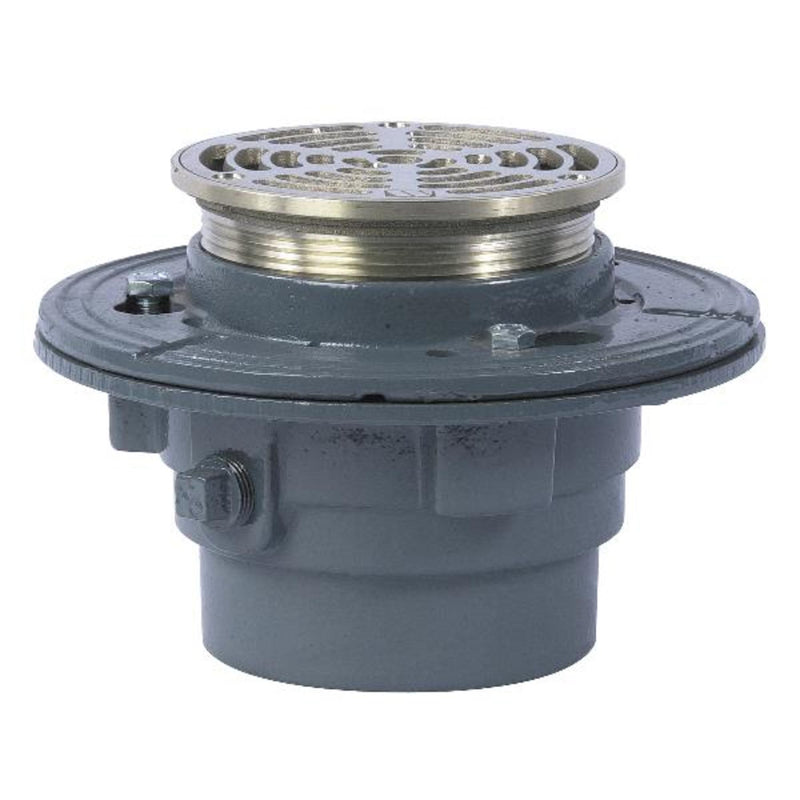

Watts FD-103-A8 Floor Drain, Cast Iron, No-Hub

The Watts FD-103-A8 is a epoxy-coated cast iron floor drain with a 3" No-Hub outlet. It features a cast iron body.

This Watts Drains adjustable, epoxy coated, cast iron floor drain features an anchor flange, a reversible clamping collar with primary and secondary weepholes, an adjustable, round, heel-proof, an 8 inch nickel bronze strainer with 18 square inches of free area and a 3 inch no hub outlet. It carries a medium duty load rating.

Features

• Cast iron
• 3 inch no hub
• Clamping collar
• Adjustable top

Common Questions

What size is the strainer or grate?

The top is 8". It adjusts vertically to the finished floor.

What pipe does it connect to?

It has a 3" No-Hub outlet.

Can it take traffic?

It carries a Medium Duty load rating. The grate is heel-proof for walking surfaces.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 3"
• Outlet Size: 3"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: FD-103-A8
• Top Material: Nickel Bronze
• Top / Strainer Size: 8"
• Spec.Coating: Epoxy
• Load Rating: Medium Duty
• Spec.Adjustable: Yes
• Heel Proof: Yes
