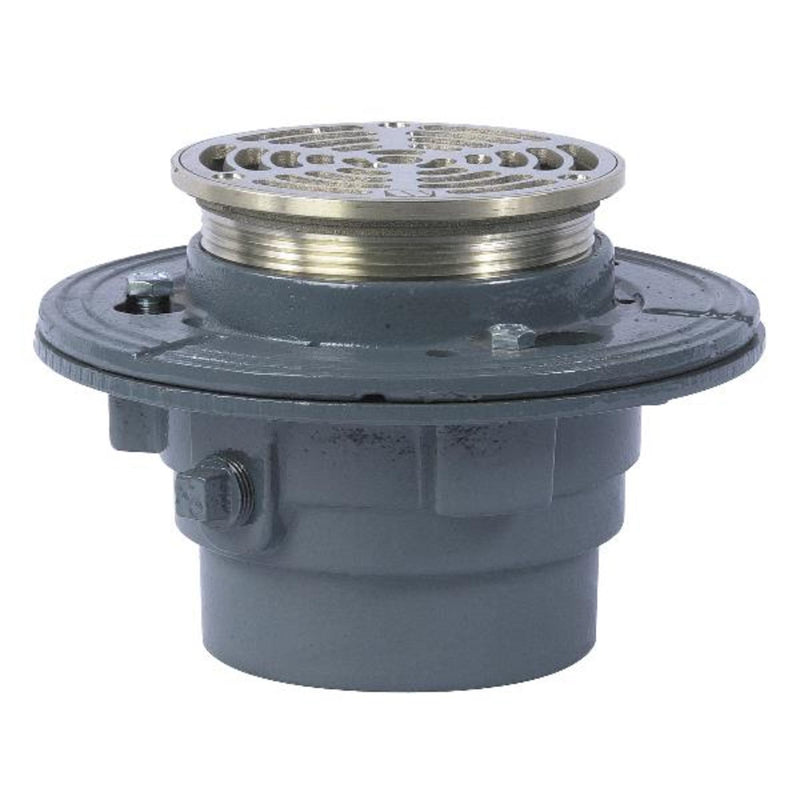

Watts FD-103-A5-US Floor Drain, Cast Iron, No-Hub

The Watts FD-103-A5-US is a epoxy-coated cast iron floor drain with a 3" No-Hub outlet. It features a cast iron body.

This Watts cast iron floor drain is epoxy coated for long life. It features a 5 inch round, adjustable, heel proof nickel bronze strainer, anchor flange, and a reversible clamping collar with primary and secondary weepholes. A 3 inch no hub outlet allows for easy installation. It is BAA compliant and carries a MD load rating.

Features

• Epoxy coated cast iron
• No hub connection
• Adjustable top
• 5" NB Strainer

Common Questions

What size is the strainer or grate?

The top is 5". It adjusts vertically to the finished floor.

What pipe does it connect to?

It has a 3" No-Hub outlet.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 3"
• Outlet Size: 3"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: FD-103-A5-US
• Top Material: Nickel Bronze
• Top / Strainer Size: 5"
• Spec.Coating: Epoxy
• Spec.Adjustable: Yes
• Heel Proof: Yes
