Specifications
Description

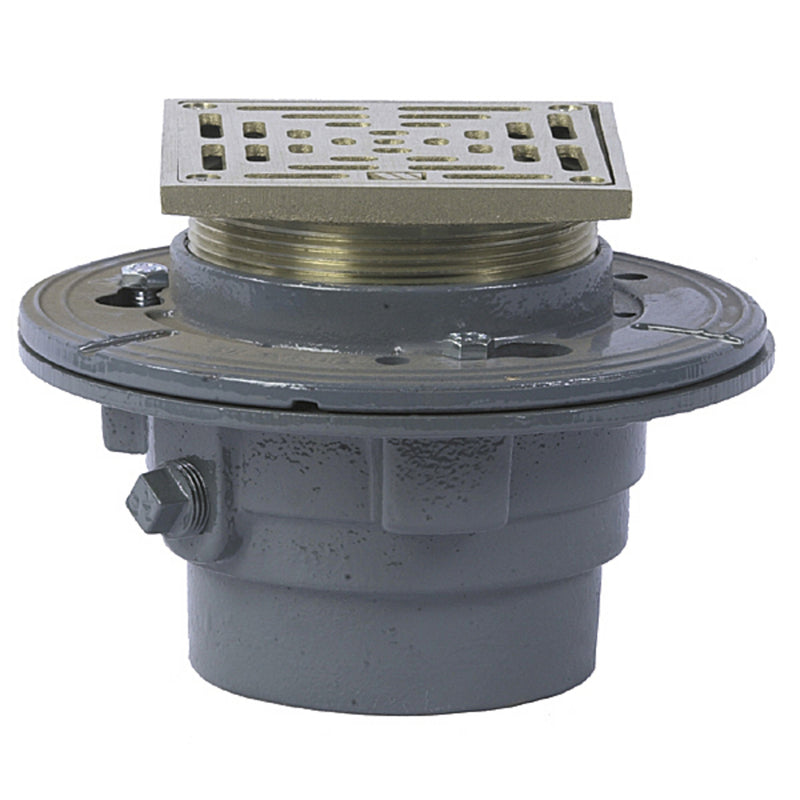

The Watts FD-102-M6-7-13-US is a epoxy-coated cast iron floor drain with a 2" No-Hub outlet. It features a cast iron body.
This Watts galvanized cast iron floor drain is epoxy coated for long life. It features a 6 inch square, adjustable, heel proof nickel bronze strainer, trap prime trapping, anchor flange, trap primer tapping, and a reversible clamping collar with primary and secondary weepholes. A 2 inch no hub outlet allows for easy installation. It is BAA compliant and carries a MD load rating.
Features
- Epoxy coated cast iron
- No hub connection
- Adjustable top
- Trap primer tapping
Common Questions
- What pipe does it connect to?
- It has a 2" No-Hub outlet.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 2"
- Outlet Size: 2"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: FD-102-M6-7-13-US
- Top Material: Nickel Bronze
- Spec.Coating: Epoxy
- Spec.Adjustable: Yes
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| FD-102-M6-7-13-US | 098268246384 | United States | 1 Year Limited |
Dimensions
| Size Nominal | 2" | Outlet Size | 2" |
| End Connection | No-Hub | — | — |
Details
| Series | FD-100-M | Body Material | Cast Iron |
| Application | Drainage | Adjustable | Yes |
| Coating | Epoxy | Heel proof | Yes |
| Top material | Nickel Bronze | — | — |
Compare with similar products
| Top Size | — | 12"
| — | — | 5"
| — |
| Series | FD-100-M
| FD-340-Y
| P777
| U830125
| CO12
| W-PQ21X-16P
|
| Country Of Origin | United States
| China
| Mexico
| Mexico
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | — | — | |||
| Size Nominal | 2"
| 3"
| 3/8"
| 1/2"
| 4"
| 3/4"
|
| Inlet Size | — | — | — | 1/2"
| — | 3/4"
|
| Outlet Size | 2"
| 3"
| — | 1/2"
| 4"
| — |
| End Connection | No-Hub
| No-Hub
| NPT
| Push-to-Connect (CTS)
| Solvent
| MNPT
|
| Body Material | Cast Iron
| Cast Iron
| Thermoplastic
| Thermoplastic
| — | Stainless
|
| Application | Drainage
| Drainage
| Domestic Water
| — | Drainage
| Hydronic Heating
|
| Max Pressure PSI | — | — | 300.0 psi | — | — | 232.0 psi |
| Pack Qty | — | — | 50
| — | — | 50
|
