Specifications
Description

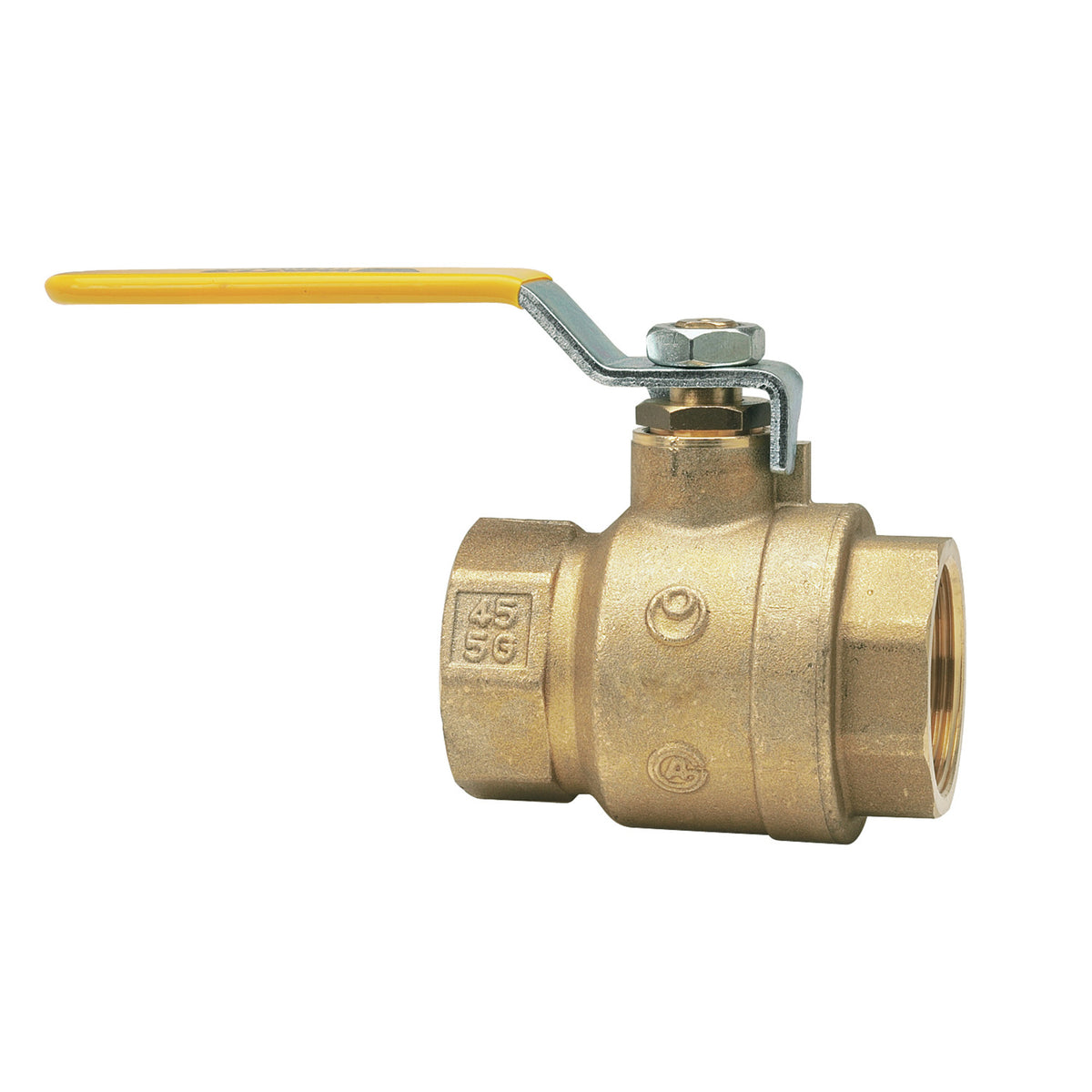

The Watts FBV-3C 1 UL-FM is a 1" 2-piece full port ball valve with NPT connections. It features a brass body and a ptfe seat. Rated to 600 psi.
This 1 inch 2-piece full port brass ball valve, series FBV-3C, is used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter and steel handle.
Features
- Trim and drain model with UL/FM approvals
- Full port
- Bottom loaded blowout proof stem
- Made of durable brass
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- No. This is a leaded model and cannot be installed in US potable-water systems. Watts builds a lead-free (LF-prefix) equivalent for potable service.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 1"
- Inlet Size: 1"
- Outlet Size: 1"
- Connection: NPT
- Body Material: Brass
- Seat / Seal Material: PTFE
- Max Pressure (psi): 600
- Application: Fire Protection
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 30
- Country of Origin: Mexico
- Warranty: 1 Year Limited
- MPN: FBV-3C 1 UL-FM
- Certifications: UL, FM
- Lead-Free: No
- Valve Construction: 2-Piece
- Ball Material: Chrome-Plated Brass
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Max Steam Pressure (WSP): 150
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0547129 | 098268340914 | Mexico | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| Outlet Size | 1" | End Connection | NPT |
Details
| Series | FBV-3C | Device Type | Ball |
| Body Material | Brass | Seat Material | PTFE |
| Application | Fire Protection | Port Style | Full |
| Max Pressure PSI | 600.0 psi | Pack Qty | 30 |
| Valve Ways | 2-Way | Body Construction | 2-Piece |
| Ball Material | Chrome-Plated Brass | Blowout Proof Stem | Yes |
| Handle Type | Lever | Actuation | Manual |
| WSP PSI | 150.0 psi | — | — |
Certifications & Standards
| UL | FM |
Compare with similar products
| Port Style | Full
| Full
| Full
|
| Valve Ways | 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
|
| WSP PSI | 150.0 psi | 150.0 psi | 150.0 psi |
| Series | FBV-3C
| FBV-3C
| FBV-3C
|
| Country Of Origin | Mexico
| Mexico
| Mexico
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | |||
| Device Type | Ball
| Ball
| Ball
|
| Size Nominal | 1"
| 2"
| 1-1/2"
|
| Inlet Size | 1"
| 2"
| 1-1/2"
|
| Outlet Size | 1"
| 2"
| 1-1/2"
|
| End Connection | NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
|
| Seat Material | PTFE
| PTFE
| PTFE
|
| Application | Fire Protection
| Fire Protection
| Fire Protection
|
| Max Pressure PSI | 600.0 psi | 600.0 psi | 600.0 psi |
| Certifications | UL, FM
| UL, FM
| UL, FM
|
| Pack Qty | 30
| 6
| 16
|
