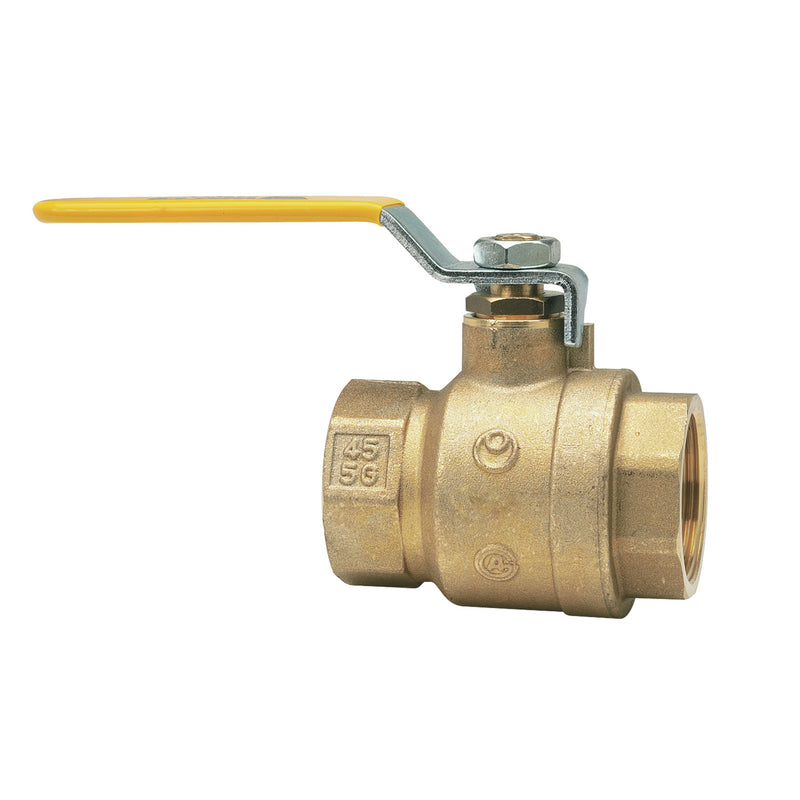

The Watts FBV-3C 1 1/2 UL-FM is a 1-1/2" 2-piece full port ball valve with NPT connections. It features a brass body and a ptfe seat. Rated to 600 psi.
This 1 1/2 inch 2-piece full port brass ball valve, series FBV-3C, is used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter and steel handle.
Features
- Trim and drain model with UL/FM approvals
- Full port
- Bottom loaded blowout proof stem
- Made of durable brass
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1-1/2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- No. This is a leaded model and cannot be installed in US potable-water systems. Watts builds a lead-free (LF-prefix) equivalent for potable service.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
-
Type: Ball
-
Size: 1-1/2"
-
Inlet Size: 1-1/2"
-
Outlet Size: 1-1/2"
-
Connection: NPT
-
Body Material: Brass
-
Seat / Seal Material: PTFE
-
Max Pressure (psi): 600
-
Application: Fire Protection
-
Port Style: Full
-
Ways: 2-Way
-
Pack Quantity: 16
-
Country of Origin: Mexico
-
Warranty: 1 Year Limited
-
MPN: FBV-3C 1 1/2 UL-FM
-
Certifications: UL, FM
-
Lead-Free: No
-
Valve Construction: 2-Piece
-
Ball Material: Chrome-Plated Brass
-
Blowout-Proof Stem: Yes
-
Handle Type: Lever
-
Actuation: Manual
-
Max Steam Pressure (WSP): 150
-
Fuel Gas Rated: No
-
Integral Drain / Waste Port: No
