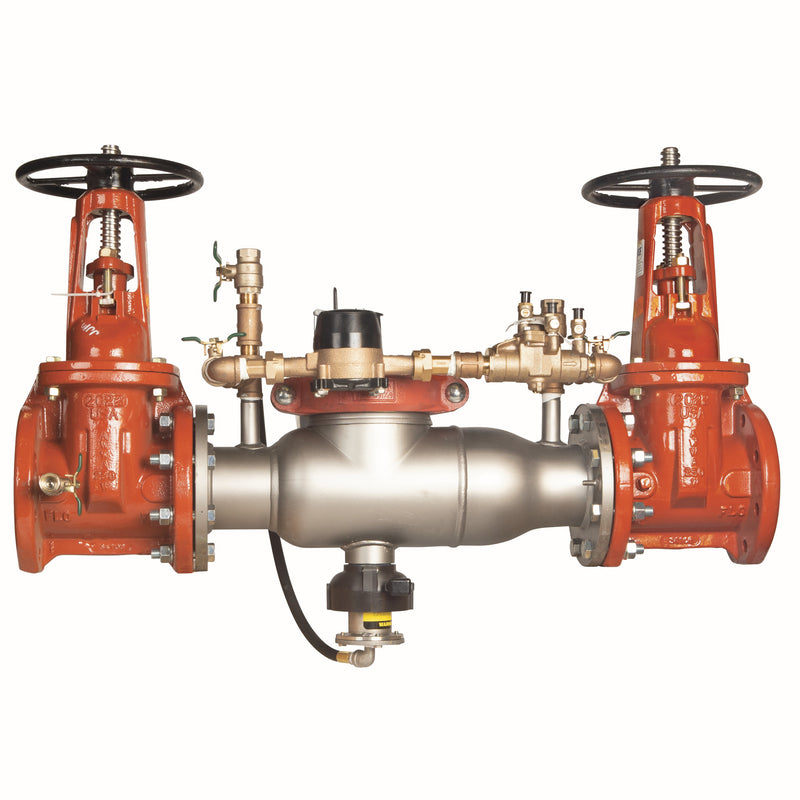

Watts 994RPDA-OSY-GPM-FS 6 RPZ Backflow Preventer, Stainless

SKU: F438061
Price:
Sale price$18,275.63 Regular price$26,250.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $18,275.63

Freight delivery: flat $300 per order, due to this item’s size or weight.

Key Features

Assembly Type RPDA
Hazard Rating High Health Hazard
ASSE Standard ASSE 1047
Spec Sheet Download
See all product information

Similar products

Watts 3/4" Backflow Preventer LF009M3QT.34
Watts Watts 3/4" Backflow Preventer LF009M3QT.34
Sale price$738.73 Regular price$1,590.00
Watts LF007M1-QT-FZ 2
Watts LF007-QT-FZ 1/2
Compare Products

Specifications

Description

The Watts 994RPDA-OSY-GPM-FS 6 is a 6" reduced pressure detector assembly (RPDA), approved for high health hazard protection. It features a stainless body. Rated to 175 psi and 33°F to 110°F.

This 6 inch reduced pressure detector backflow preventer assembly help stop the reverse flow of liquids due to backpressure or backsiphonage, where potential health hazard exists. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. This assembly consists of a short lay length stainless steel body, test cocks, corrosive resistant stainless steel bottom mounted relief valve, torsion spring check valves, outside stem and yoke resilient seated gate valves and comes furnished with a gallon per minute meter to detect underground leaks and unauthorized water use. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Features

  • Features a flood sensor with SentryPlus Alert technology to detect continuous discharge from the relief valve
  • Add-on sensor connection kit to extend flood monitoring on compatible assemblies
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
  • Stainless steel body is half the weight of competitive designs reducing installation and shipping costs
  • UL and FM outside stem and yoke resilient seated gate valves
  • Health hazard application
  • Detects underground leaks and unauthorized water use
  • Compact construction for smaller enclosures
  • Bottom mounted relief valve reduces clearance requirements when installed against an outside wall
  • Includes: Test Cocks
  • Includes: Flood Sensor

Common Questions

What hazard level is this RPDA approved for?
It is rated for high health hazard (toxic) cross-connections, so it may be used on either high or low hazard service. The assembly is listed to ASSE 1047.
Can this be installed on potable water?
No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.
Does this assembly have to be tested every year?
Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter.
What shutoff valves are included?
It is supplied with outside screw and yoke (OS&Y) gate valves on the inlet and outlet. OS&Y gates give the visible open/shut indication that fire-line and many water-authority specs require.
Is this suitable for a fire sprinkler line?
Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified and FM Approved. The bypass meter reads in GPM.
Does the relief valve need a drain?
Yes. An RPZ relief valve is designed to discharge, and it can dump a large volume of water, so it must never be installed in a pit or below grade and the discharge must be piped to an adequate drain through an air gap. The air gap fitting is not included with this model and is ordered separately. This model includes the SentryPlus Alert flood sensor, which signals a relief-valve discharge before it becomes a flood.

Specifications

  • Type: RPZ
  • Size: 6"
  • Inlet Size: 6"
  • Outlet Size: 6"
  • Body Material: Stainless
  • Max Pressure (psi): 175
  • Application: Fire Protection
  • Backflow Protection: Both
  • Operation: Continuous
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 994RPDA-OSY-GPM-FS 6
  • Temperature: 33°F to 110°F
  • Certifications: CSA-B64, UL, FM
  • Lead-Free: No
  • Assembly Type: RPDA
  • Hazard Protection Level: High Health Hazard
  • ASSE Standard: ASSE 1047
  • USC FCCCHR Approved: No
  • Fire Protection Listing: UL Classified;FM Approved
  • Field Testable: Yes
  • Shutoff Valves: OSY Gate
  • Flood Sensor (SentryPlus Alert): Yes
  • Strainer Included: No
  • Air Gap Fitting Included: No
  • Bypass Meter: GPM

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
F438061 098268509878 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 6" Inlet Size 6"
Outlet Size 6" ——

Details

Series 994RPDA Device Type RPZ
Body Material Stainless Application Fire Protection
Operation Continuous Max Pressure PSI 175.0 psi
Max Temp °F 110.0 °F Backflow Protection Both
Options Test Cocks, Flood Sensor Min Temp °F 33.0 °F
Assembly Type RPDA Hazard Rating High Health Hazard
ASSE Standard ASSE 1047 Fire Listing UL Classified, FM Approved
Testable Yes Shutoff Valve Type OSY Gate
Flood Sensor Yes Detector Meter GPM

Certifications & Standards

CSA-B64 UL
FM —

Compare with similar products

Backflow Protection
Both
Both
Both
Both
Both
Assembly Type
RPDA
DCDA
DCDA
DCDA
DCDA
Hazard Rating
High Health Hazard
Low Health Hazard
Low Health Hazard
Low Health Hazard
Low Health Hazard
ASSE Standard
ASSE 1047
ASSE 1048
ASSE 1048
ASSE 1048
ASSE 1048
USC Approved
—
Yes
Yes
Yes
Yes
Fire Listing
UL Classified, FM Approved
UL Classified, FM Approved
UL Classified, FM Approved
UL Classified, FM Approved
UL Classified, FM Approved
Testable
Yes
Yes
Yes
Yes
Yes
Shutoff Valve Type
OSY Gate
Butterfly (Grooved)
Butterfly (Grooved)
Butterfly (Grooved)
Butterfly (Grooved)
Detector Meter
GPM
CFM
GPM
CFM
CFM
Series
994RPDA
757DCDA
757DCDA
757DCDA
757DCDA
Country Of Origin
United States
United States
United States
United States
United States
Warranty
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
Spec Sheet
Device Type
RPZ
Double Check
Double Check
Double Check
Double Check
Size Nominal
6"
3"
6"
6"
3"
Inlet Size
6"
3"
6"
6"
3"
Outlet Size
6"
3"
6"
6"
3"
Lead Free
—
Yes
Yes
Yes
Yes
End Connection
—
Grooved
Grooved
Grooved
Grooved
Body Material
Stainless
Stainless
Stainless
Stainless
Stainless
Seat Material
—
Silicone
Silicone
Silicone
Silicone
Application
Fire Protection
Fire Protection
Fire Protection
Fire Protection
Fire Protection
Operation
Continuous
Continuous
Continuous
Continuous
Continuous
Max Pressure PSI
175.0 psi
175.0 psi
175.0 psi
175.0 psi
175.0 psi
Max Temp °F
110.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
CSA-B64, UL, FM
UL, FM, USC
UL, FM, USC
UL, FM, USC
UL, FM, USC
Options
Test Cocks, Flood Sensor
Test Cocks, Gear Operator, Tamper Switch
Test Cocks, Gear Operator, Tamper Switch
Test Cocks, Gear Operator, Tamper Switch
Test Cocks, Gear Operator, Tamper Switch
Min Temp °F
33.0 °F
33.0 °F
33.0 °F
33.0 °F
33.0 °F
