Specifications
Description

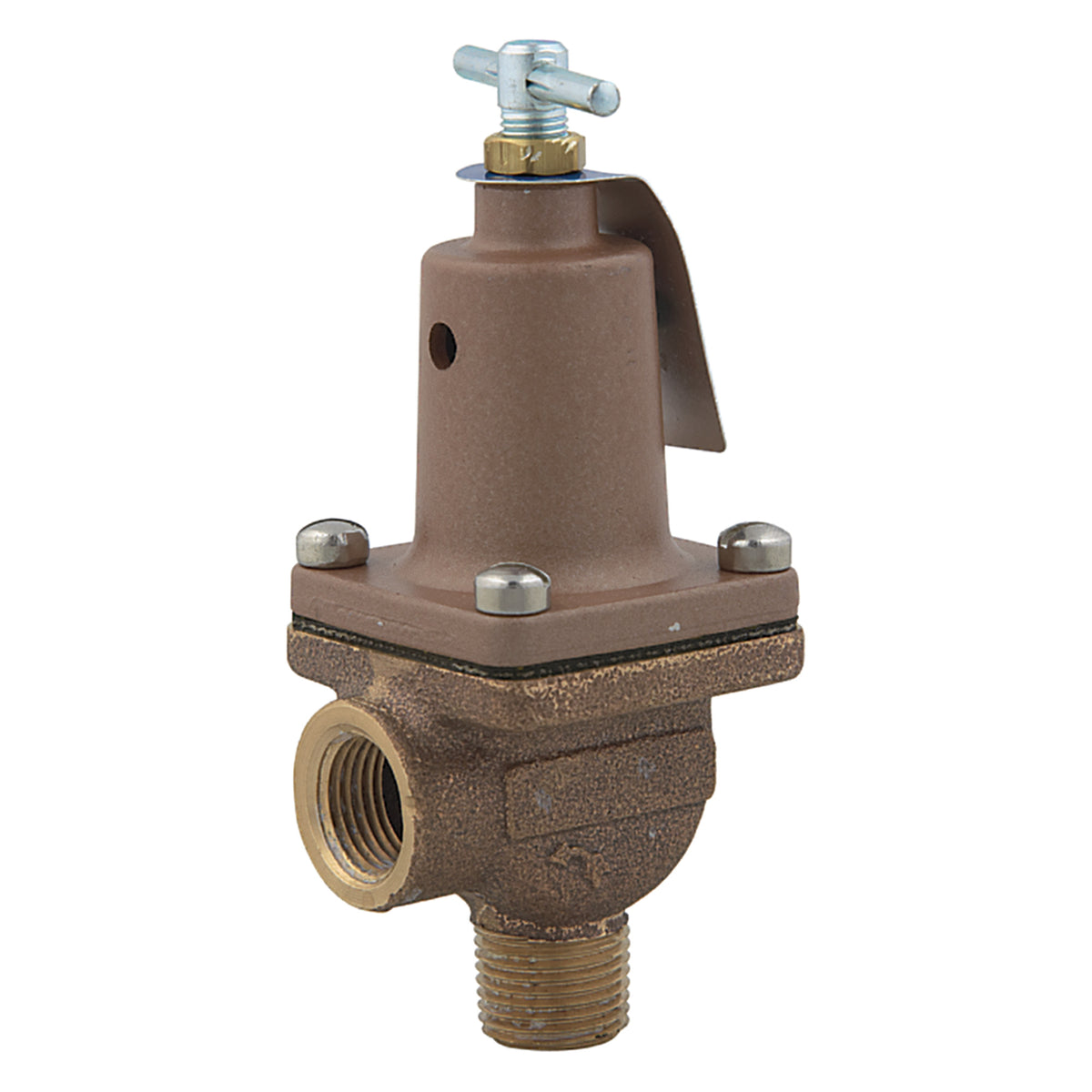

The Watts BP30-075175 is a 1/2" calibrated adjustable pressure relief valve for pump bypass pressure control service, field-adjustable over 75-175 psi. It features a bronze body. Rated to 175 psi and up to 180°F.
This 1/2 inch bypass control relief valve is used in commercial, residential and industrial applications to regulate liquid pressure as supplied by a positive pressure pump. It is a diaphragm-operated type valve that protects equipment by opening at an adjustable range of 75-175 psi (5.2 to 12.1 bar) to allow excess volume to be bypassed back to the source. It consists of a bronze body construction with NPT threaded male inlet and NPT threaded female outlet, sensitive rubber diaphragm, Buna-N disc, spring and adjustment handle, and a tee handle.
Features
- Spring loaded
- Soft seated
- Bronze body
- Automatic reseating
- Includes: Bypass
Common Questions
- What pressure does this relieve at?
- This is a calibrated valve — you set it. It adjusts over 75-175 psi, so it has no factory set point. Set it below the working pressure rating of the equipment you are protecting, and re-check the setting after installation.
- Can I use this on potable water?
- No. This model is not certified lead-free, so it cannot be installed in a potable (drinking) water line under the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service, or order the "LF" version of this model for potable water.
Specifications
- Type: Relief
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: NPT
- Body Material: Bronze
- Max Pressure (psi): 175
- Pack Quantity: 12
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: BP30-075175
- Temperature: up to 180°F
- Lead-Free: No
- Relief Type: Calibrated Adjustable
- Adjustment Range: 75-175 psi
- Application: Pump Bypass Pressure Control
- Connection Configuration: MNPT inlet x FNPT outlet
- Automatic Reseating: Yes
- Approved for Potable Water: No
- SentryPlus Alert Flood Sensor: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0114241 | 098268009361 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | NPT |
Details
| Series | BP30 | Device Type | Relief |
| Body Material | Bronze | Max Pressure PSI | 175.0 psi |
| Max Temp °F | 180.0 °F | Pack Qty | 12 |
| Options | Bypass | Relief Type | Calibrated Adjustable |
| Adjustable Range PSI | 75-175 psi PSI | Application Class | Pump Bypass Pressure Control |
| Connection Config | MNPT inlet x FNPT outlet | Auto Reseating | Yes |
Compare with similar products
| Relief Type | Calibrated Adjustable
| Calibrated Adjustable
| Calibrated Adjustable
| Calibrated Adjustable
|
| Adjustable Range PSI | 75-175 psi
| 100-300 psi
| 10-50 psi
| 45-100 psi
|
| Application Class | Pump Bypass Pressure Control
| Thermal Expansion / General Service
| Pump Bypass Pressure Control
| Pump Bypass Pressure Control
|
| Connection Config | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Potable Approved | — | — | Yes | Yes |
| Series | BP30
| 530C
| LFBP30
| LFBP30
|
| Country Of Origin | United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||
| Device Type | Relief
| Relief
| Relief
| Relief
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Inlet Size | 1/2"
| 3/4"
| 1/2"
| 1/2"
|
| Outlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | — | — | Yes | Yes |
| End Connection | NPT
| NPT
| NPT
| NPT
|
| Body Material | Bronze
| Brass
| Copper
| Copper
|
| Max Pressure PSI | 175.0 psi | 300.0 psi | 50.0 psi | 100.0 psi |
| Max Temp °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F |
| Pack Qty | 12
| 50
| 12
| 12
|
| Options | Bypass
| — | Bypass
| Bypass
|
