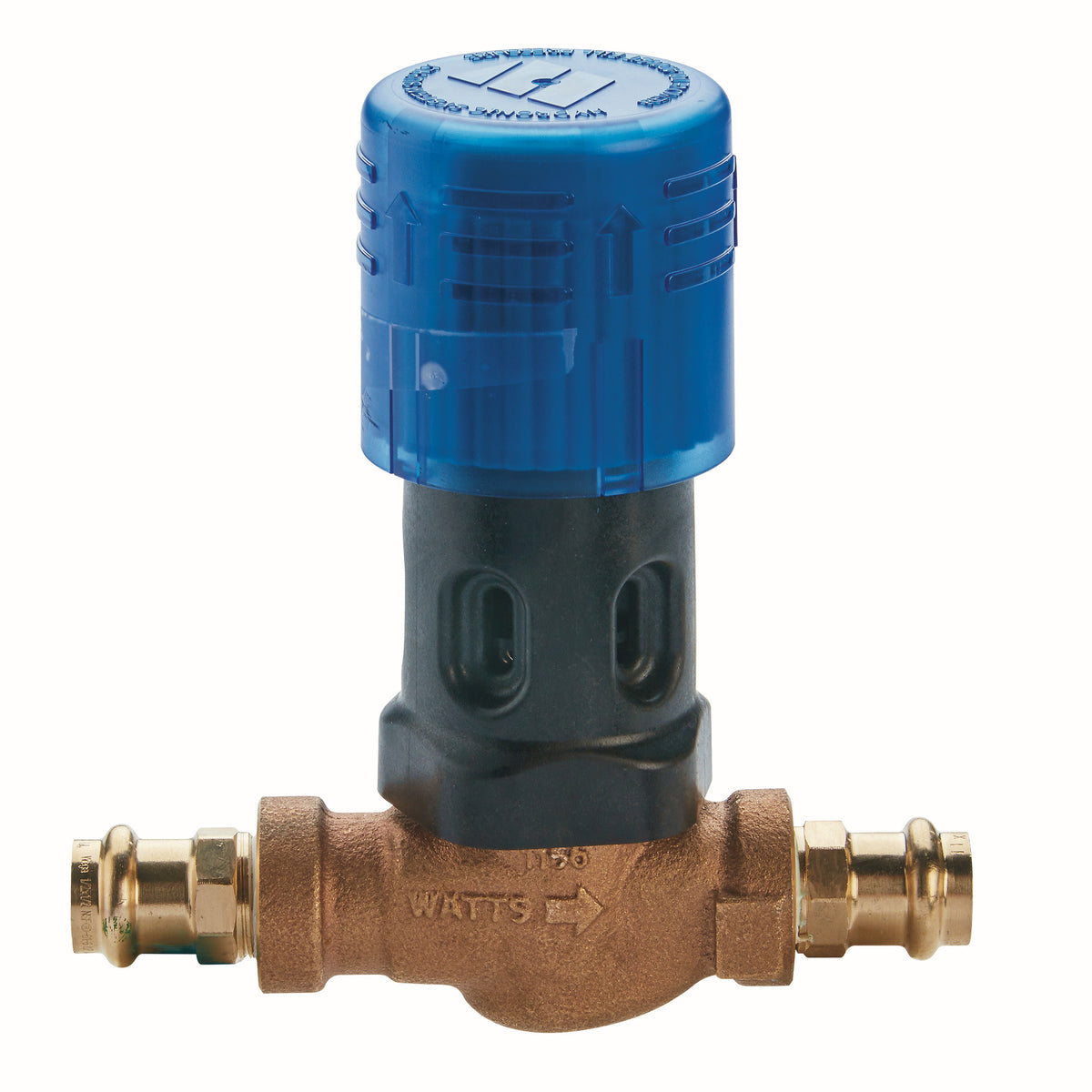

The Watts BD1156F (W/PRESS) 1/2 is a 1/2" pressure reducing valve with Press connections. It reduces high or fluctuating inlet pressure to a lower, constant downstream pressure. It features a bronze body. Rated to 100 psi and up to 212°F.
This 1/2 inch dial set high capacity feed water pressure regulator is for use in commercial and residential hydronic heating systems to fill the boiler and piping system with water, and to maintain water pressure in the system at all times. It also provides make-up water to the system in the event of system leaks. It consists of an easy-to-read dial pressure setting indicator, bronze body with Viega ProPress inlet and outlet connections, tight seating check valve, fast-fill purge lever for manual purging, and a stainless steel strainer. It has high capacity performance and a simplified servicing design. It is suitable for use in the boiler feed lines of hydronic heating systems. The maximum pressure is 100 psi (6.9 bar).
Features
- Dial set pressure indicator
- High capacity
- Tight seating check valve
- With Viega ProPress ®
- Includes: Strainer
Common Questions
- Does it include a strainer?
- Yes - BD1156F (W/PRESS) 1/2 has an integral stainless steel strainer built into the body, so you do not need a separate inline strainer ahead of it. The strainer is removable for cleaning; if the valve starts to lose downstream pressure, pull and rinse the strainer before assuming the seat has failed.
- Does it come with a gauge?
- No - BD1156F (W/PRESS) 1/2 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping.
Specifications
- Type: Pressure Regulator
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: Press
- Body Material: Bronze
- Max Pressure (psi): 100
- Shutoff: None
- Pack Quantity: 12
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: BD1156F (W/PRESS) 1/2
- Temperature: up to 212°F
- Lead-Free: No
- Thermal Expansion Bypass: No
- Integral Strainer: Yes
- Gauge: None
- Union Configuration: None
- Regulated Media: Water
Product Information
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | Press |
Details
| Series | BD1156F | Device Type | Pressure Regulator |
| Body Material | Bronze | Max Pressure PSI | 100.0 psi |
| Max Temp °F | 212.0 °F | Pack Qty | 12 |
| Options | Strainer | Shutoff | None |
| Integral Strainer | Yes | Gauge Config | None |
| Union Config | None | Regulated Media | Water |
Compare with similar products
| Shutoff | None
| None
| None
| None
| None
| None
|
| Integral Strainer | Yes | Yes | Yes | Yes | Yes | Yes |
| Gauge Config | None
| None
| None
| None
| None
| None
|
| Union Config | None
| — | Single Union
| Single Union
| Single Union
| Single Union
|
| Regulated Media | Water
| Water
| Water
| Water
| Water
| Water
|
| Series | BD1156F
| B1156F
| BD1156F
| B1156F
| 1156F
| LFN55B-M1
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | ||||
| Device Type | Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 3/4"
|
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 3/4"
|
| Outlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 3/4"
|
| End Connection | Press
| Press
| Sweat
| NPT
| NPT
| FNPT
|
| Body Material | Bronze
| Bronze
| Bronze
| Bronze
| Bronze
| Brass
|
| Max Pressure PSI | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi | 400.0 psi |
| Max Temp °F | 212.0 °F | 212.0 °F | 212.0 °F | 212.0 °F | 212.0 °F | 180.0 °F |
| Pack Qty | 12
| 12
| 12
| 12
| 12
| 12
|
| Options | Strainer
| Strainer
| Strainer
| Strainer
| Strainer
| Strainer, Bypass
|
