Description

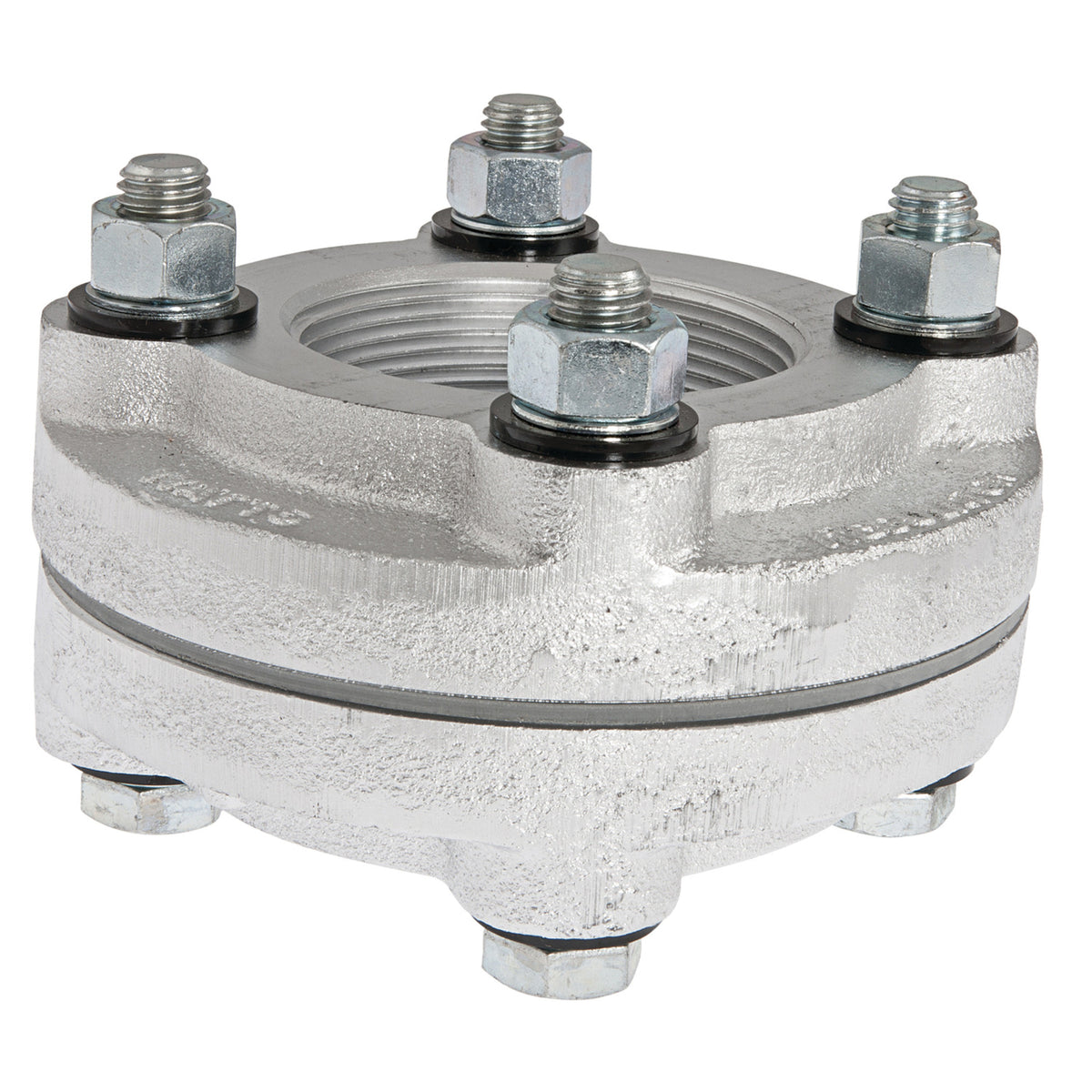

The Watts A3200 2 1/2 is a Flanged washer / o-ring.
This 2 1/2 inch dielectric flange pipe fitting is designed for commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current from connections of dissimilar metals. Ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of an iron pipe threaded flange tailpieces with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 psi (12.1 bar).
Features
- Buna-N gasket
- Maximum pressure is 175 psi (12.1 bar)
- Maximum temperature is 180 degrees F (82 degrees C)
- Iron pipe thread connections
- Designed and manufactured to the highest quality standards
- Meet federal specifications for tensile strength and thread end connections
Common Questions
- How does it join the pipe?
- It is a Flanged fitting.
- Why use a dielectric fitting here?
- It electrically isolates dissimilar metals, which stops the galvanic corrosion you get joining copper straight to steel.
Specifications
- Size: 2-1/2"
- Inlet Size: 2-1/2"
- Outlet Size: 2-1/2"
- Connection: Flanged
- Application: Gas
- Country of Origin: India
- Warranty: 1 Year Limited
- MPN: A3200 2 1/2
- Lead-Free: No
- Fitting Type: Washer / O-Ring
- Connection System: Flanged
- Dielectric Isolation: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0822420 | 098268094312 | India | 1 Year Limited | Download |
Dimensions
| Size Nominal | 2-1/2" | Inlet Size | 2-1/2" |
| Outlet Size | 2-1/2" | End Connection | Flanged |
Details
| Series | 3200 | Application | Gas |
| Connection system | Flanged | Dielectric | Yes |
| Fitting type | Washer / O-Ring | — | — |
Compare with similar products
| Series | 3200
| 3200
| LF3110
| 3200
| LF3110
| LF3110
|
| Country Of Origin | India
| United States
| China
| United States
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 2-1/2"
| 2"
| 2-1/2"
| 4"
| 3"
| 4"
|
| Inlet Size | 2-1/2"
| 2"
| 2-1/2"
| 4"
| 3"
| 4"
|
| Outlet Size | 2-1/2"
| 2"
| 2-1/2"
| 4"
| — | — |
| Lead Free | — | — | Yes | — | Yes | Yes |
| End Connection | Flanged
| Flanged
| Sweat
| Flanged
| Sweat
| Sweat
|
| Body Material | — | — | Bronze
| — | Bronze
| Bronze
|
| Application | Gas
| Gas
| Gas
| Gas
| Gas
| Gas
|
