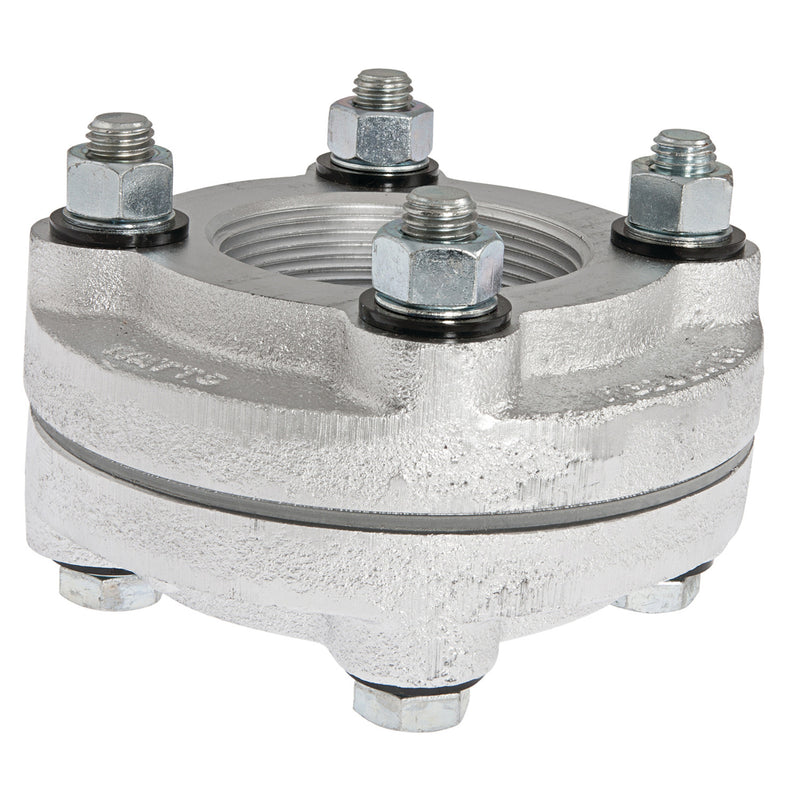

Watts 3200 2 Washer / O-Ring, Flanged

The Watts 3200 2 is a Flanged washer / o-ring.

This 2 inch dielectric flange pipe fitting is designed for commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current from connections of dissimilar metals. Ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of an iron pipe threaded flange tailpieces with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 psi (12.1 bar).

Features

• Buna-N gasket
• Maximum pressure is 175 psi (12.1 bar)
• Maximum temperature is 180 degrees F (82 degrees C)
• Iron pipe thread connections
• Designed and manufactured to the highest quality standards
• Meet federal specifications for tensile strength and thread end connections

Common Questions

How does it join the pipe?

It is a Flanged fitting.

Why use a dielectric fitting here?

It electrically isolates dissimilar metals, which stops the galvanic corrosion you get joining copper straight to steel.

Specifications

• Size: 2"
• Inlet Size: 2"
• Outlet Size: 2"
• Connection: Flanged
• Application: Gas
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 3200 2
• Lead-Free: No
• Fitting Type: Washer / O-Ring
• Connection System: Flanged
• Dielectric Isolation: Yes
