Watts 909RPDA-OSY-GPM-FS 10 RPZ Backflow Preventer, Cast Iron

SKU: 88009365
Price:
Sale price$69,467.57 Regular price$99,779.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $69,467.57

Freight delivery: flat $300 per order, due to this item’s size or weight.

Key Features

Assembly Type RPDA
Hazard Rating High Health Hazard
ASSE Standard ASSE 1047
Spec Sheet Download
See all product information

Similar products

Watts 3/4" Backflow Preventer LF009M3QT.34
Watts Watts 3/4" Backflow Preventer LF009M3QT.34
Sale price$738.73 Regular price$1,590.00
Watts LF007M1-QT-FZ 2
Watts LF007-QT-FZ 1/2
Compare Products

Specifications

Description

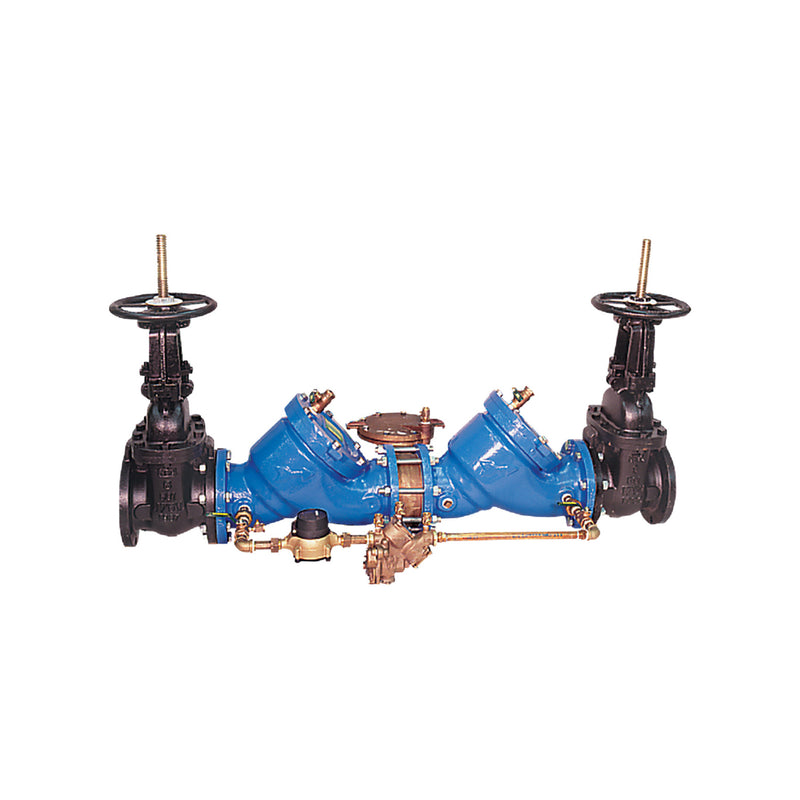

The Watts 909RPDA-OSY-GPM-FS 10 is a 10" reduced pressure detector assembly (RPDA), approved for high health hazard protection. It features a cast iron body and a rubber seat. Rated to 175 psi and 33°F to 140°F.

This 10 inch reduced pressure detector backflow preventer assembly prevents reverse flow of fire protection system substances from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. This assembly consists of an epoxy coated cast iron body, OSY resilient seated gate valves, captured spring check valves, replaceable stainless steel seats, top mounted test cocks, a pressure differential relief valve and comes furnished with a GMP meter to detect underground leaks and unauthorized water use. The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

Features

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
  • Utilizes advanced ArmorTek coating technology to resist corrosion of internals
  • Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Replaceable stainless steel seats
  • Furnished with a gallon per minute meter
  • Maximum flow at low pressure drop
  • Detects underground leaks and unauthorized water use
  • Compact for economy combined with performance
  • Includes: Test Cocks
  • Includes: Flood Sensor

Common Questions

What hazard level is this RPDA approved for?
It is rated for high health hazard (toxic) cross-connections, so it may be used on either high or low hazard service. The assembly is listed to ASSE 1047.
Can this be installed on potable water?
No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.
Does this assembly have to be tested every year?
Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
What shutoff valves are included?
It is supplied with outside screw and yoke (OS&Y) gate valves on the inlet and outlet. OS&Y gates give the visible open/shut indication that fire-line and many water-authority specs require.
Is this suitable for a fire sprinkler line?
Yes. Detector assemblies are built for fire sprinkler service: the metered bypass registers the low flows that reveal a leak or an unauthorized tap on the fire line. This model is UL Classified and FM Approved. The bypass meter reads in GPM.
Does the relief valve need a drain?
Yes. An RPZ relief valve is designed to discharge, and it can dump a large volume of water, so it must never be installed in a pit or below grade and the discharge must be piped to an adequate drain through an air gap. The air gap fitting is not included with this model and is ordered separately. This model includes the SentryPlus Alert flood sensor, which signals a relief-valve discharge before it becomes a flood.

Specifications

  • Type: RPZ
  • Size: 10"
  • Inlet Size: 10"
  • Outlet Size: 10"
  • Body Material: Cast Iron
  • Seat / Seal Material: Rubber
  • Max Pressure (psi): 175
  • Application: Fire Protection
  • Backflow Protection: Both
  • Operation: Continuous
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 909RPDA-OSY-GPM-FS 10
  • Temperature: 33°F to 140°F
  • Certifications: ASSE-1047, CSA-B64, UL, FM, USC
  • Lead-Free: No
  • Assembly Type: RPDA
  • Hazard Protection Level: High Health Hazard
  • ASSE Standard: ASSE 1047
  • USC FCCCHR Approved: Yes
  • Fire Protection Listing: UL Classified;FM Approved
  • Field Testable: Yes
  • Shutoff Valves: OSY Gate
  • Flood Sensor (SentryPlus Alert): Yes
  • Strainer Included: No
  • Air Gap Fitting Included: No
  • Bypass Meter: GPM

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
88009365 098268294309 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 10" Inlet Size 10"
Outlet Size 10" ——

Details

Series 909RPDA Device Type RPZ
Body Material Cast Iron Seat Material Rubber
Application Fire Protection Operation Continuous
Max Pressure PSI 175.0 psi Max Temp °F 140.0 °F
Backflow Protection Both Options Test Cocks, Flood Sensor
Min Temp °F 33.0 °F Assembly Type RPDA
Hazard Rating High Health Hazard ASSE Standard ASSE 1047
USC Approved Yes Fire Listing UL Classified, FM Approved
Testable Yes Shutoff Valve Type OSY Gate
Flood Sensor Yes Detector Meter GPM

Certifications & Standards

ASSE-1047 CSA-B64
UL FM
USC —
