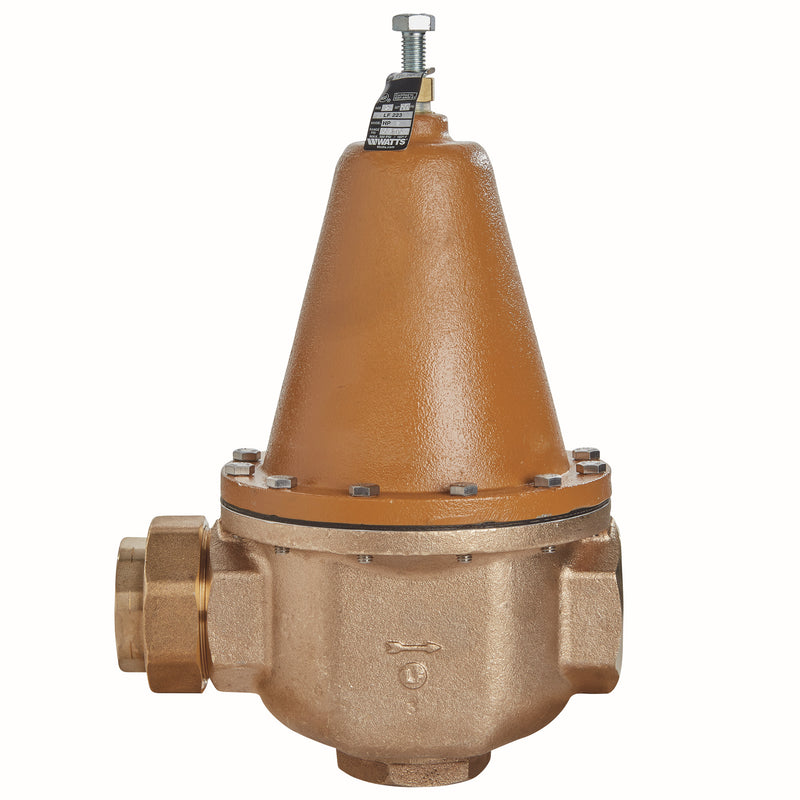

Watts LF223-B-U-HP 50-125 2 Lead-Free Pressure Reducing Valve, FNPT

SKU: 88009231
Price:
Sale price$11,454.11 Regular price$16,452.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $11,454.11

Free shipping over $200

Key Features

Regulated Media Water
Capacity Class High Capacity
Adj Range Max PSI 125.0 psi
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts LF223-B-U-HP 50-125 2 is a 2" lead-free pressure reducing valve with single union FNPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 50-125 psi downstream. It features a buna-n seat. Rated to 300 psi and 33°F to 180°F. This model is certified lead-free for potable-water installations.

This 2 inch high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, bypass to control thermal expansion pressure, NPT threaded union inlet by NPT female threaded outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. The high pressure range is 50 to 125 psi (3.45 to 8.6 bar).

Features

  • NPT threaded union inlet by NPT threaded female outlet
  • Lead free cast copper silicon alloy body construction
  • High pressure range 50 to 125 psi (3.4 to 8.6 bar)
  • Listed by IAPMO and NSF 61 Commercial Hot
  • Enlarged diaphragm, spring cage and seat orifice for high capacity performance
  • Bypass feature controls thermal expansion pressure
  • Sensitive spring and large diaphragm for accurate pressure control
  • High temperature resisting diaphragm for hot or cold water
  • Sealed spring cage
  • Includes: Bypass

Common Questions

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
LF223-B-U-HP 50-125 2 includes an integral thermal-expansion bypass. When downstream pressure from a water heater rises above the inlet pressure, the bypass relieves that excess back through the valve toward the supply, which prevents nuisance pressure build-up on a closed system. It is not a substitute for a properly sized thermal expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower, so check the code in your jurisdiction.
What pressure is it set to out of the box?
The adjustable reduced-pressure range of LF223-B-U-HP 50-125 2 is 50 to 125 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.
Does it include a strainer?
No - LF223-B-U-HP 50-125 2 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
Does it come with a gauge?
No - LF223-B-U-HP 50-125 2 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping. The -GG version of this model ships with a gauge tapping and a 160 psi gauge.

Specifications

  • Type: Pressure Regulator
  • Size: 2"
  • Inlet Size: 2"
  • Outlet Size: 2"
  • Connection: FNPT
  • Seat / Seal Material: Buna-N
  • Max Pressure (psi): 300
  • Shutoff: None
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: LF223-B-U-HP 50-125 2
  • Temperature: 33°F to 180°F
  • Certifications: ASSE-1003, ANSI-A112.26, NSF-61, IAPMO
  • Lead-Free: Yes
  • Adjustable Range - Min (psi): 50
  • Adjustable Range - Max (psi): 125
  • Thermal Expansion Bypass: Yes
  • Integral Strainer: No
  • Gauge: None
  • Union Configuration: Single Union
  • Capacity Class: High Capacity
  • Regulated Media: Water

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
88009231 098268519815 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 2" Inlet Size 2"
Outlet Size 2" End Connection FNPT

Details

Series LF223 Device Type Pressure Regulator
Lead Free Yes Seat Material Buna-N
Max Pressure PSI 300.0 psi Max Temp °F 180.0 °F
Options Bypass Min Temp °F 33.0 °F
Shutoff None Adj Range Min PSI 50.0 psi
Adj Range Max PSI 125.0 psi Thermal Bypass Yes
Gauge Config None Union Config Single Union
Capacity Class High Capacity Regulated Media Water
