Specifications
Description

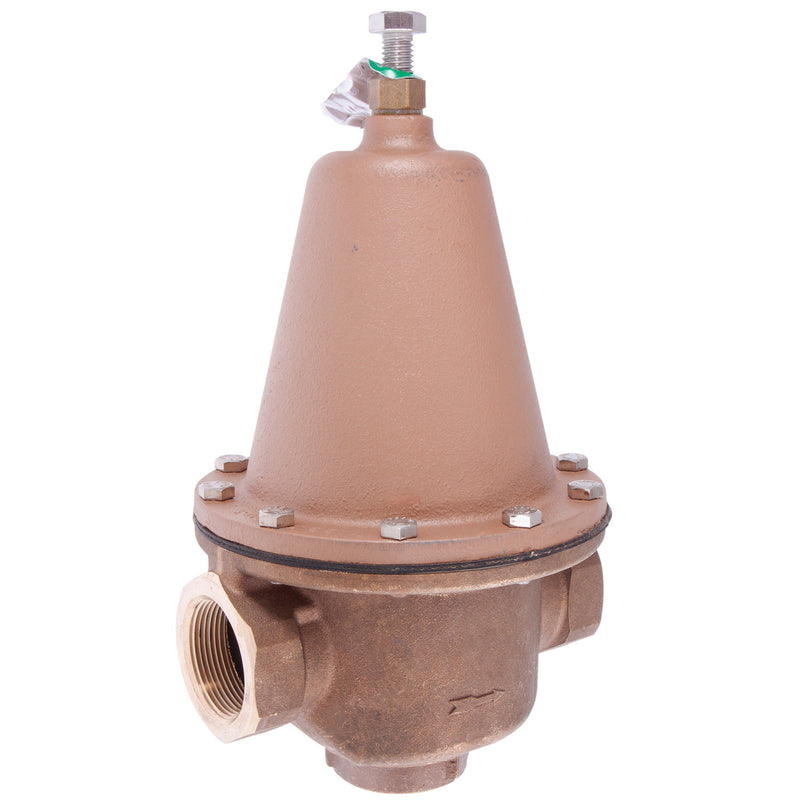

The Watts LF223-B-HP 50-125 2 is a 2" lead-free pressure reducing valve with NPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 50-125 psi downstream. It features a buna-n seat. Rated to 300 psi and 33°F to 180°F. This model is certified lead-free for potable-water installations.
This 2 inch high capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, bypass to control thermal expansion pressure, NPT threaded female inlet and outlet connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The high pressure range is 50 to 125 psi (3.4 to 8.6 bar).
Features
- NPT threaded female inlet by NPT threaded female outlet
- Lead free cast copper silicon alloy body construction
- High pressure range 50 to 125 psi (3.4 to 8.6 bar)
- Listed by IAPMO and NSF 61 Commercial Hot
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- Bypass feature controls thermal expansion pressure
- Sensitive spring and large diaphragm for accurate pressure control
- High temperature resisting diaphragm for hot or cold water
- Sealed spring cage
- Includes: Bypass
Common Questions
- Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
- LF223-B-HP 50-125 2 includes an integral thermal-expansion bypass. When downstream pressure from a water heater rises above the inlet pressure, the bypass relieves that excess back through the valve toward the supply, which prevents nuisance pressure build-up on a closed system. It is not a substitute for a properly sized thermal expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower, so check the code in your jurisdiction.
- What pressure is it set to out of the box?
- The adjustable reduced-pressure range of LF223-B-HP 50-125 2 is 50 to 125 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.
- Does it include a strainer?
- No - LF223-B-HP 50-125 2 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
- Does it come with a gauge?
- No - LF223-B-HP 50-125 2 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping. The -GG version of this model ships with a gauge tapping and a 160 psi gauge.
Specifications
- Type: Pressure Regulator
- Size: 2"
- Inlet Size: 2"
- Outlet Size: 2"
- Connection: NPT
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 300
- Shutoff: None
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LF223-B-HP 50-125 2
- Temperature: 33°F to 180°F
- Certifications: ASSE-1003, ANSI-A112.26, NSF-61, IAPMO
- Lead-Free: Yes
- Adjustable Range - Min (psi): 50
- Adjustable Range - Max (psi): 125
- Thermal Expansion Bypass: Yes
- Integral Strainer: No
- Gauge: None
- Union Configuration: None
- Capacity Class: High Capacity
- Regulated Media: Water
Product Information
Dimensions
| Size Nominal | 2" | Inlet Size | 2" |
| Outlet Size | 2" | End Connection | NPT |
Details
| Series | LF223 | Device Type | Pressure Regulator |
| Lead Free | Yes | Seat Material | Buna-N |
| Max Pressure PSI | 300.0 psi | Max Temp °F | 180.0 °F |
| Options | Bypass | Min Temp °F | 33.0 °F |
| Shutoff | None | Adj Range Min PSI | 50.0 psi |
| Adj Range Max PSI | 125.0 psi | Thermal Bypass | Yes |
| Gauge Config | None | Union Config | None |
| Capacity Class | High Capacity | Regulated Media | Water |
Certifications & Standards
| ASSE-1003 | ANSI-A112.26 |
| NSF-61 | IAPMO |
Compare with similar products

| Shutoff | None
| None
| — |
| Set Pressure PSI | — | 70.0 psi | 85.0 psi |
| Adj Range Min PSI | 50.0 psi | 25.0 psi | 75.0 psi |
| Adj Range Max PSI | 125.0 psi | 75.0 psi | 125.0 psi |
| Thermal Bypass | Yes | Yes | Yes |
| Integral Strainer | — | Yes | Yes |
| Gauge Config | None
| None
| — |
| Union Config | None
| Single Union
| Single Union
|
| Capacity Class | High Capacity
| High Capacity Full Port
| Standard
|
| Regulated Media | Water
| Water
| Domestic Water
|
| Series | LF223
| LFN55B-M1
| 112-600XLHR
|
| Country Of Origin | United States
| United States
| — |
| Warranty | 1 Year Limited
| 1 Year Limited
| — |
| Spec Sheet | |||
| Install Sheet | |||
| Device Type | Pressure Regulator
| Pressure Regulator
| Water Pressure Reducing Valve with Removable Integral Strainer
|
| Size Nominal | 2"
| 3/4"
| 1-1/2"
|
| Inlet Size | 2"
| 3/4"
| 1-1/2"
|
| Outlet Size | 2"
| 3/4"
| 1-1/2"
|
| Lead Free | Yes | Yes | Yes |
| End Connection | NPT
| FNPT
| FNPT
|
| Body Material | — | Brass
| Lead-Free Bronze
|
| Seat Material | Buna-N
| EPDM
| — |
| Max Pressure PSI | 300.0 psi | 400.0 psi | 300.0 psi |
| Max Temp °F | 180.0 °F | 180.0 °F | 140.0 °F |
| Certifications | ASSE-1003, ANSI-A112.26, NSF-61, IAPMO
| ASSE-1003, ANSI-A112.26.2, IAPMO
| ASSE-1003, IAPMO, CSA, NSF-61
|
| Options | Bypass
| Strainer, Bypass
| — |
| Min Temp °F | 33.0 °F | 33.0 °F | — |
