Watts LF223-S-HP 50-125 2 Lead-Free Pressure Reducing Valve, FNPT

SKU: 88009228
Price:
Sale price$10,847.01 Regular price$15,580.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $10,847.01

Free shipping over $200

Key Features

Regulated Media Water
Capacity Class High Capacity
Adj Range Max PSI 125.0 psi
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

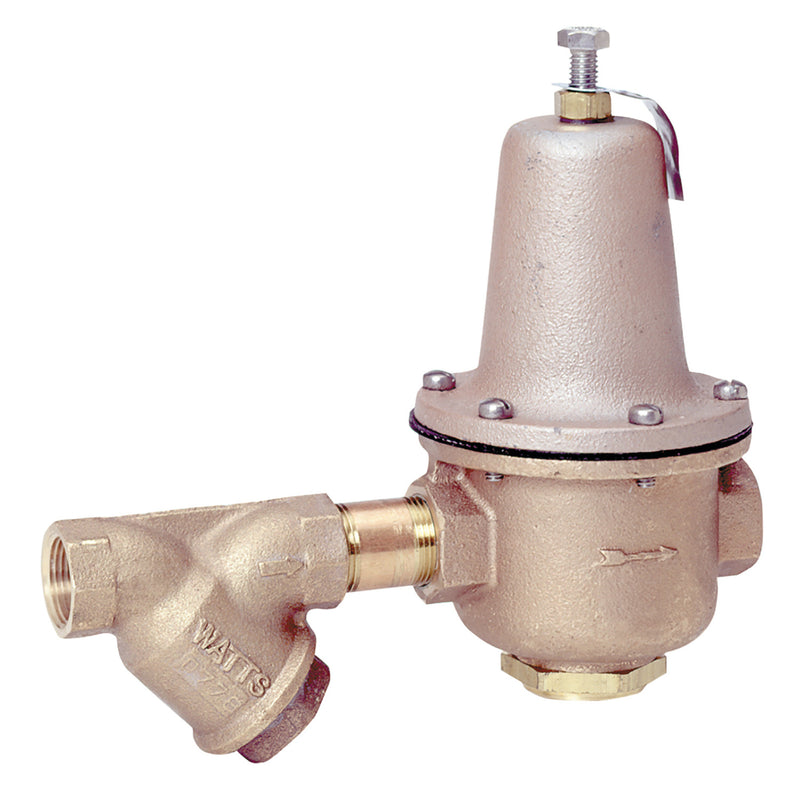

The Watts LF223-S-HP 50-125 2 is a 2" lead-free pressure reducing valve with FNPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 50-125 psi downstream. It features a buna-n seat. Rated to 300 psi and 33°F to 180°F. This model is certified lead-free for potable-water installations.

This 2 inch high capacity lead free water pressure reducing valve is used in high pressure applications and is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features a lead free cast copper silicon alloy body construction, NPT threaded female inlet with strainer by NPT female threaded outlet, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for high capacity performance. This valve can be used for accessible outdoor waterworks or pit installations. The high pressure reduced range is 50 to 125 psi (3.4 to 8.6 bar).

Features

  • NPT threaded female inlet with strainer by NPT threaded female outlet
  • Lead free cast copper silicon alloy body construction
  • High pressure range 50 to 125 psi (3.4 to 8.6 bar)
  • Enlarged diaphragm, spring cage and seat orifice for high capacity performance
  • Listed by IAPMO and NSF 61 Commercial Hot
  • Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
  • Sensitive spring and large diaphragm for accurate pressure control
  • High temperature resisting diaphragm for hot or cold water
  • Sealed spring cage
  • Includes: Strainer

Common Questions

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
No - LF223-S-HP 50-125 2 does not include a thermal-expansion bypass. Once this valve is installed the system downstream of it is closed, so a thermal expansion tank (and, where required, a relief valve) must be installed to absorb expansion from a water heater. If you want the bypass built in, choose the -B version of this model.
What pressure is it set to out of the box?
The adjustable reduced-pressure range of LF223-S-HP 50-125 2 is 50 to 125 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.
Does it include a strainer?
Yes - LF223-S-HP 50-125 2 has an integral stainless steel strainer built into the body, so you do not need a separate inline strainer ahead of it. The strainer is removable for cleaning; if the valve starts to lose downstream pressure, pull and rinse the strainer before assuming the seat has failed.
Does it come with a gauge?
No - LF223-S-HP 50-125 2 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping. The -GG version of this model ships with a gauge tapping and a 160 psi gauge.

Specifications

  • Type: Pressure Regulator
  • Size: 2"
  • Inlet Size: 2"
  • Outlet Size: 2"
  • Connection: FNPT
  • Seat / Seal Material: Buna-N
  • Max Pressure (psi): 300
  • Shutoff: None
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: LF223-S-HP 50-125 2
  • Temperature: 33°F to 180°F
  • Certifications: ASSE-1003, ANSI-A112.26, NSF-61, IAPMO
  • Lead-Free: Yes
  • Adjustable Range - Min (psi): 50
  • Adjustable Range - Max (psi): 125
  • Thermal Expansion Bypass: No
  • Integral Strainer: Yes
  • Gauge: None
  • Union Configuration: None
  • Capacity Class: High Capacity
  • Regulated Media: Water

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
88009228 098268519785 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 2" Inlet Size 2"
Outlet Size 2" End Connection FNPT

Details

Series LF223 Device Type Pressure Regulator
Lead Free Yes Seat Material Buna-N
Max Pressure PSI 300.0 psi Max Temp °F 180.0 °F
Options Strainer Min Temp °F 33.0 °F
Shutoff None Adj Range Min PSI 50.0 psi
Adj Range Max PSI 125.0 psi Integral Strainer Yes
Gauge Config None Union Config None
Capacity Class High Capacity Regulated Media Water

Certifications & Standards

ASSE-1003 ANSI-A112.26
NSF-61 IAPMO

Compare with similar products

Shutoff
None
None
—
Set Pressure PSI
—
70.0 psi
85.0 psi
Adj Range Min PSI
50.0 psi
25.0 psi
75.0 psi
Adj Range Max PSI
125.0 psi
75.0 psi
125.0 psi
Thermal Bypass
—
Yes
Yes
Integral Strainer
Yes
Yes
Yes
Gauge Config
None
None
—
Union Config
None
Single Union
Single Union
Capacity Class
High Capacity
High Capacity Full Port
Standard
Regulated Media
Water
Water
Domestic Water
Series
LF223
LFN55B-M1
112-600XLHR
Country Of Origin
United States
United States
—
Warranty
1 Year Limited
1 Year Limited
—
Spec Sheet
Install Sheet
Device Type
Pressure Regulator
Pressure Regulator
Water Pressure Reducing Valve with Removable Integral Strainer
Size Nominal
2"
3/4"
1-1/2"
Inlet Size
2"
3/4"
1-1/2"
Outlet Size
2"
3/4"
1-1/2"
Lead Free
Yes
Yes
Yes
End Connection
FNPT
FNPT
FNPT
Body Material
—
Brass
Lead-Free Bronze
Seat Material
Buna-N
EPDM
—
Max Pressure PSI
300.0 psi
400.0 psi
300.0 psi
Max Temp °F
180.0 °F
180.0 °F
140.0 °F
Certifications
ASSE-1003, ANSI-A112.26, NSF-61, IAPMO
ASSE-1003, ANSI-A112.26.2, IAPMO
ASSE-1003, IAPMO, CSA, NSF-61
Options
Strainer
Strainer, Bypass
—
Min Temp °F
33.0 °F
33.0 °F
—
