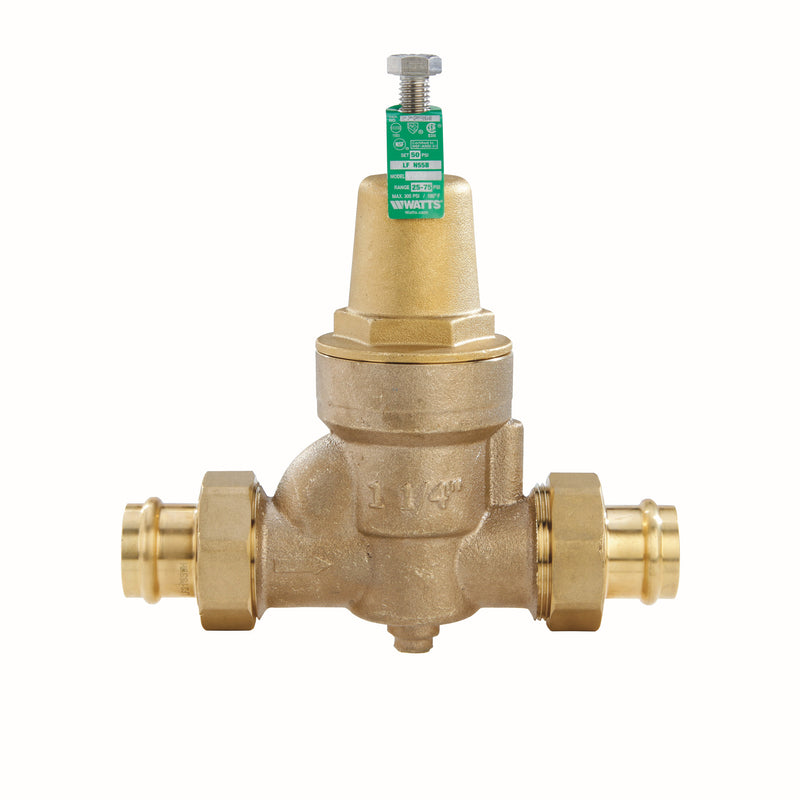

Watts LFN55BDU-PR 1-1/4 Lead-Free Pressure Reducing Valve, Brass, Press

SKU: 88009139
Price:
Sale price$966.34 Regular price$1,388.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $966.34

Free shipping over $200

Key Features

Set Pressure PSI 50.0 psi
Regulated Media Water
Capacity Class High Capacity Full Port
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts LFN55BDU-PR 1-1/4 is a 1-1/4" lead-free pressure reducing valve with double union Press connections. It reduces inlet pressure of up to 300 psi to an adjustable 25-75 psi downstream, factory set at 50 psi. It features a brass body and a epdm seat. Rated to 300 psi. This model is certified lead-free for potable-water installations.

This 1 1/4 inch water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a lead free brass body construction, with double union press connections, stainless steel integral strainer, thermoplastic seat module, thermal expansion bypass and a sealed spring cage. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (1.72 to 5.17 bar) with the standard setting at 50 psi (3.45 bar).

Features

  • Double union press connections
  • Integral stainless steel strainer removable for cleaning
  • Thermoplastic seat and bronze cage
  • Sealed spring cage for accessible outdoor or pit installations
  • Includes: Strainer
  • Includes: Bypass

Common Questions

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
LFN55BDU-PR 1-1/4 includes an integral thermal-expansion bypass. When downstream pressure from a water heater rises above the inlet pressure, the bypass relieves that excess back through the valve toward the supply, which prevents nuisance pressure build-up on a closed system. It is not a substitute for a properly sized thermal expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower, so check the code in your jurisdiction.
What pressure is it set to out of the box?
LFN55BDU-PR 1-1/4 ships factory set at 50 psi. The adjustable reduced-pressure range is 25 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting screw - loosen the locknut, turn in to raise pressure and out to lower it, then retighten and verify with a gauge.
Does it include a strainer?
Yes - LFN55BDU-PR 1-1/4 has an integral stainless steel strainer built into the body, so you do not need a separate inline strainer ahead of it. The strainer is removable for cleaning; if the valve starts to lose downstream pressure, pull and rinse the strainer before assuming the seat has failed.
Does it come with a gauge?
No - LFN55BDU-PR 1-1/4 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping. The -GG version of this model ships with a gauge tapping and a 160 psi gauge.

Specifications

  • Type: Pressure Regulator
  • Size: 1-1/4"
  • Inlet Size: 1-1/4"
  • Outlet Size: 1-1/4"
  • Connection: Press
  • Body Material: Brass
  • Seat / Seal Material: EPDM
  • Max Pressure (psi): 300
  • Shutoff: None
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: LFN55BDU-PR 1-1/4
  • Certifications: ASSE-1003, ANSI-A112.26.2, IAPMO
  • Lead-Free: Yes
  • Factory Set Pressure (psi): 50
  • Adjustable Range - Min (psi): 25
  • Adjustable Range - Max (psi): 75
  • Thermal Expansion Bypass: Yes
  • Integral Strainer: Yes
  • Gauge: None
  • Union Configuration: Double Union
  • Capacity Class: High Capacity Full Port
  • Regulated Media: Water

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
88009139 098268344141 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 1-1/4" Inlet Size 1-1/4"
Outlet Size 1-1/4" End Connection Press

Details

Series LFN55B Device Type Pressure Regulator
Lead Free Yes Body Material Brass
Seat Material EPDM Max Pressure PSI 300.0 psi
Options Strainer, Bypass Shutoff None
Set Pressure PSI 50.0 psi Adj Range Min PSI 25.0 psi
Adj Range Max PSI 75.0 psi Thermal Bypass Yes
Integral Strainer Yes Gauge Config None
Union Config Double Union Capacity Class High Capacity Full Port
Regulated Media Water ——

Certifications & Standards

ASSE-1003 ANSI-A112.26.2
IAPMO —
