Specifications
Description

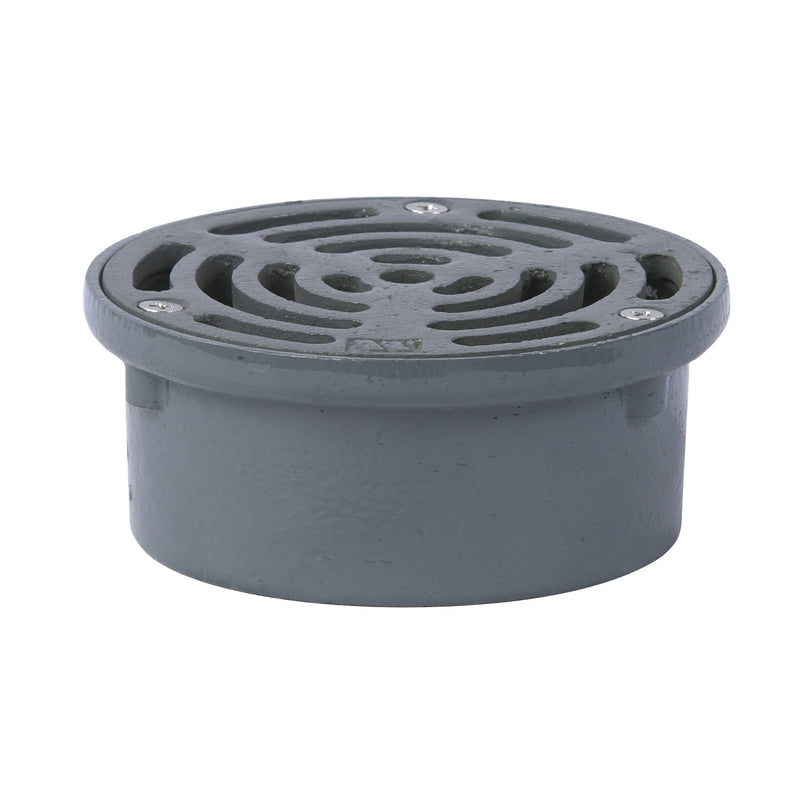

The Watts FD-393-E-1 is a epoxy-coated cast iron floor drain with a 3" No-Hub outlet. It features a cast iron body.
This Watts general purpose floor drain is manufactured from epoxy coated cast iron for long life and durability. It features a 5 inch diameter top with a secured heel proof nickel bronze grate, a 3 inch no hub outlet for fast and easy installation and carries a medium duty load rating.
Features
- Epoxy coated cast iron body
- General purpose usage
- Secured heel proof NB grate
- 3" NH outlet
Common Questions
- What size is the strainer or grate?
- The top is 5".
- What pipe does it connect to?
- It has a 3" No-Hub outlet.
- Can it take traffic?
- It carries a Medium Duty load rating. The grate is heel-proof for walking surfaces.
- What is it made of?
- It has a cast iron body with a epoxy coating.
Specifications
- Size: 3"
- Outlet Size: 3"
- Connection: No-Hub
- Body Material: Cast Iron
- Application: Drainage
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: FD-393-E-1
- Top Material: Nickel Bronze
- Top / Strainer Size: 5"
- Spec.Coating: Epoxy
- Load Rating: Medium Duty
- Heel Proof: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 8138153 | 098268196269 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3" | Outlet Size | 3" |
| End Connection | No-Hub | — | — |
Details
| Series | FD-390-E | Body Material | Cast Iron |
| Application | Drainage | Top Size | 5" |
| Coating | Epoxy | Heel proof | Yes |
| Load rating | Medium Duty | Top material | Nickel Bronze |
Compare with similar products
| Top Size | 5"
| 12"
| — | — | 5"
| — |
| Series | FD-390-E
| FD-340-Y
| P777
| U830125
| CO12
| W-PQ21X-16P
|
| Country Of Origin | China
| China
| Mexico
| Mexico
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | — | ||||
| Size Nominal | 3"
| 3"
| 3/8"
| 1/2"
| 4"
| 3/4"
|
| Inlet Size | — | — | — | 1/2"
| — | 3/4"
|
| Outlet Size | 3"
| 3"
| — | 1/2"
| 4"
| — |
| End Connection | No-Hub
| No-Hub
| NPT
| Push-to-Connect (CTS)
| Solvent
| MNPT
|
| Body Material | Cast Iron
| Cast Iron
| Thermoplastic
| Thermoplastic
| — | Stainless
|
| Application | Drainage
| Drainage
| Domestic Water
| — | Drainage
| Hydronic Heating
|
| Max Pressure PSI | — | — | 300.0 psi | — | — | 232.0 psi |
| Pack Qty | — | — | 50
| — | — | 50
|
