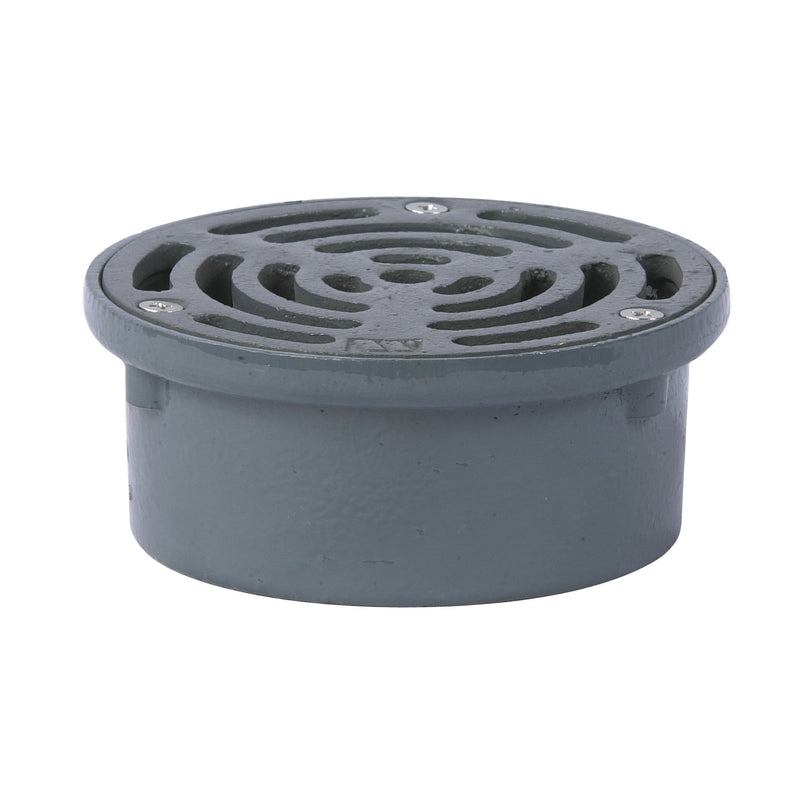

Watts FD-392-E-1 Floor Drain, Cast Iron, No-Hub

The Watts FD-392-E-1 is a epoxy-coated cast iron floor drain with a 2" No-Hub outlet. It features a cast iron body.

This Watts general purpose floor drain is manufactured from epoxy coated cast iron for long life and durability. It features a 5 inch diameter top with a secured heel proof nickel bronze grate, a 2 inch no hub outlet for fast and easy installation and carries a medium duty load rating.

Features

• Epoxy coated cast iron body
• General purpose usage
• Secured heel proof NB grate
• 2" NH outlet

Common Questions

What size is the strainer or grate?

The top is 5".

What pipe does it connect to?

It has a 2" No-Hub outlet.

Can it take traffic?

It carries a Medium Duty load rating. The grate is heel-proof for walking surfaces.

What is it made of?

It has a cast iron body with a epoxy coating.

Specifications

• Size: 2"
• Outlet Size: 2"
• Connection: No-Hub
• Body Material: Cast Iron
• Application: Drainage
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: FD-392-E-1
• Top Material: Nickel Bronze
• Top / Strainer Size: 5"
• Spec.Coating: Epoxy
• Load Rating: Medium Duty
• Heel Proof: Yes
