Specifications
Description

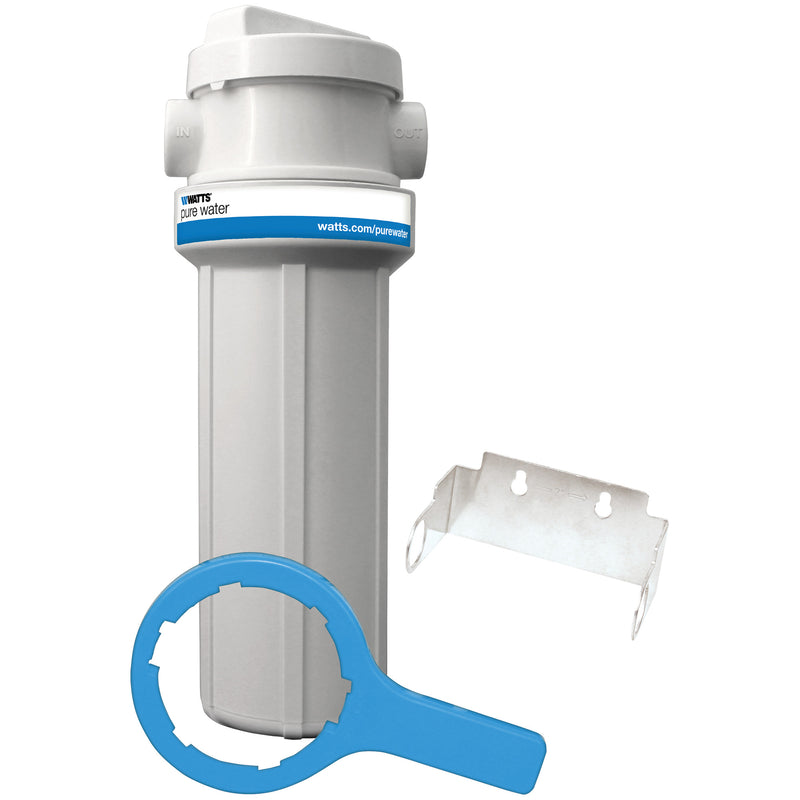

The Watts PWHIB34WVIH is a 10" housing. It features a polypropylene body. Rated to 100 psi and up to 100°F.
This 10 inch white housing comes with a valve in head design cap for easy filter service in the bypass mode without the need for shutting off the water supply. It is great for whole house and other filtration applications. A 3/4 inch pipe size allows for greater plumbing compatibility. The heavy duty construction is made using a high quality FDA grade polypropylene. The housing lid features a buttress thread design for superior sealing and security. The thick side walls with heavy-duty ribs provide great strength. It is rated at temperatures up to 100 degree F (38 degree C) and the water pressure is rated up to 100 psi (6.9 bar). The cap, sump and top-seated O-rings are compressed to provide a leak proof sealing.
Features
- Built in three way valve in head
- Accepts standard 10" filter cartridges
- Lid features a buttress thread design for superior sealing
- 3/4 inch port connections
Common Questions
- Will it fit my housing?
- It is a 10" nominal element. Cartridge and housing must match on this dimension.
Specifications
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: NPT
- Body Material: Polypropylene
- Max Pressure (psi): 100
- Application: Water Treatment
- Pack Quantity: 4
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: PWHIB34WVIH
- Temperature: up to 100°F
- Lead-Free: No
- System Role: Housing
- Cartridge / Housing Size: 10"
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 7100550 | 098268167191 | Taiwan | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | NPT |
Details
| Series | PWHIB | Body Material | Polypropylene |
| Application | Water Treatment | Max Pressure PSI | 100.0 psi |
| Max Temp °F | 100.0 °F | Pack Qty | 4 |
| Cartridge Size | 10" | System role | Housing |
Compare with similar products
| Cartridge Size | 10"
| 20"
| 10"
| 20"
| 10"
| 10"
|
| Series | PWHIB
| PWHP HIGH TEMP
| PWHP
| PWHP
| PWHP HIGH TEMP
| PWHIB
|
| Country Of Origin | Taiwan
| Taiwan
| United States
| China
| Taiwan
| Taiwan
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Size Nominal | 3/4"
| 3/4"
| 1"
| 3/4"
| 3/4"
| 1"
|
| Inlet Size | 3/4"
| 3/4"
| 1"
| 3/4"
| 3/4"
| 1"
|
| Outlet Size | 3/4"
| 3/4"
| 1"
| 3/4"
| 3/4"
| 1"
|
| End Connection | NPT
| Compression
| Compression
| Compression
| Compression
| — |
| Body Material | Polypropylene
| Polypropylene
| Polypropylene
| Polypropylene
| Polypropylene
| — |
| Application | Water Treatment
| Water Treatment
| Water Treatment
| Water Treatment
| Water Treatment
| Water Treatment
|
| Max Pressure PSI | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi | 100.0 psi |
| Max Temp °F | 100.0 °F | 100.0 °F | 100.0 °F | 100.0 °F | 100.0 °F | 100.0 °F |
| Pack Qty | 4
| 4
| 4
| 4
| 4
| 4
|
