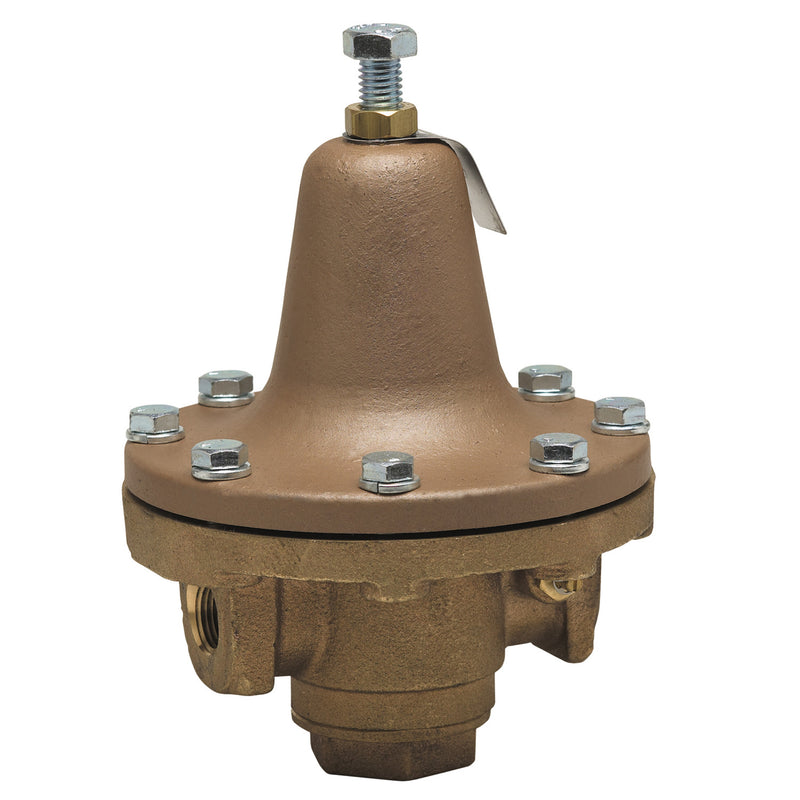

Watts 252A 10-30 1/2 Pressure Reducing Valve, Bronze

The Watts 252A 10-30 1/2 is a 1/2" process steam pressure regulator. It reduces inlet pressure of up to 300 psi to an adjustable 10-30 psi downstream. It features a bronze body. Rated to 300 psi and up to 300°F.

This 1/2 inch process steam pressure regulator, model 252A 10-30, is designed to offer highly sensitive response to reduced pressure changes and maintain fullest possible volume without appreciable reduced pressure drop. This regulator is ideal for use on applications such as oil lines, testing fixtures, autoclaves, steam tables, steam irons, single radiators, volcanizes, sterilizers and process lines. For 10-30 psi.

Features

• Bronze body construction
• Stainless steel disc
• Designed to offer highly sensitive response to reduced pressure changes
• Maintains fullest possible volume without appreciable reduced pressure drop

Common Questions

What pressure is it set to out of the box?

The adjustable reduced-pressure range of 252A 10-30 1/2 is 10 to 30 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.

Does it come with a gauge?

No - 252A 10-30 1/2 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping.

Specifications

• Type: Pressure Regulator
• Size: 1/2"
• Inlet Size: 1/2"
• Outlet Size: 1/2"
• Body Material: Bronze
• Max Pressure (psi): 300
• Shutoff: None
• Pack Quantity: 4
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 252A 10-30 1/2
• Temperature: up to 300°F
• Lead-Free: No
• Adjustable Range - Min (psi): 10
• Adjustable Range - Max (psi): 30
• Thermal Expansion Bypass: No
• Gauge: None
• Union Configuration: None
• Regulated Media: Steam
