The Watts 2 920GF 150 is a 6" relief valve with Flanged connections. It features a copper body and a buna-n seat. Rated to 300 psi and up to 160°F.

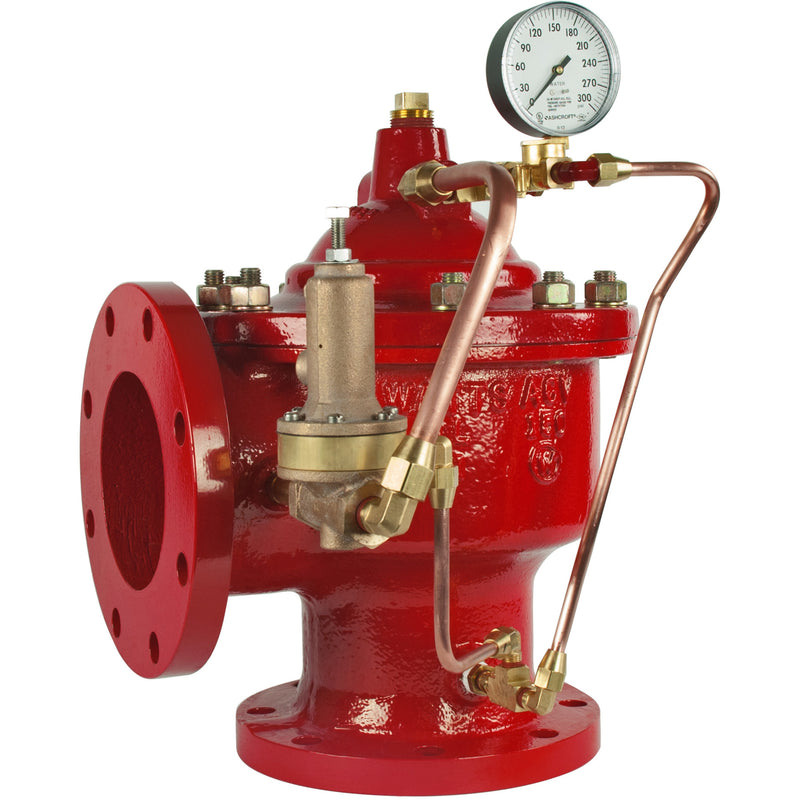

The 2 inch M116FM (globe) and M1116FM (angle) relief valve meets all requirements for UL listed, FM approved fire protection service. Automatically maintains a constant pressure in the fire protection system by relieving excess pressure. The pressure relief control is normally closed, held closed by an adjustable spring setting to maintain a constant inlet pressure to the main valve.
Features
- Pressure Relief Control Valve
- Class 150 flanged
- 175 psig rated
- Copper tubing/brass fittings
Common Questions
- What fluid temperature can the Buna-N trim handle?
- This valve is built with Buna-N elastomers, good to about 160°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
- Is this valve UL Listed and FM Approved for fire protection?
- Yes — this model carries the UL listing and FM approval required for fire-protection service. Non-listed control valves cannot be substituted on a fire job even when the body and pilot are otherwise identical.
Specifications
- Type: Relief
- Size: 6"
- Inlet Size: 6"
- Outlet Size: 6"
- Connection: Flanged
- Body Material: Copper
- Seat / Seal Material: Buna-N
- Pressure Class: Class 150
- Max Pressure (psi): 300
- Application: Fire Protection
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: 2 920GF 150
- Temperature: up to 160°F
- Certifications: UL, FM
- Lead-Free: No
- Item Type: Valve
- UL Listed / FM Approved: Yes
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 4422-06 | 737733031291 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 6" | Inlet Size | 6" |
| Outlet Size | 6" | End Connection | Flanged |
| Pressure Class | Class 150 | — | — |
Details
| Series | 920GF | Device Type | Relief |
| Body Material | Copper | Seat Material | Buna-N |
| Application | Fire Protection | Max Pressure PSI | 300.0 psi |
| Max Temp °F | 160.0 °F | Item Type | Valve |
| UL FM Listed | Yes | Subtype | Pressure Relief Sustaining & Backpressure Valves |
| Type | Automatic Control Valves | — | — |
Certifications & Standards
| UL | FM |
Compare with similar products
| Port Style | — | Full
| Full
| Full
| Full
| Full
|
| Item Type | Valve
| Valve
| Valve
| Valve
| Valve
| Valve
|
| Control Function | — | Pressure Relief / Sustaining / Backpressure
| Pressure Relief / Sustaining / Backpressure
| Pressure Relief / Sustaining / Backpressure
| Pressure Relief / Sustaining / Backpressure
| Pressure Relief / Sustaining / Backpressure
|
| Valve Platform | — | Classic (F-Series)
| Classic (F-Series)
| Mustang (M-Series)
| Mustang (M-Series)
| Classic (F-Series)
|
| Body Pattern | — | Globe
| Globe
| Globe
| Globe
| Globe
|
| Pilot Range PSI | — | 20-200
| 20-200
| 20-200
| 20-200
| 20-200
|
| Pressure Class End | — | 150# Flanged
| 300# Flanged
| 300# Flanged
| THD (NPT Threaded)
| THD (NPT Threaded)
|
| Options | — | Test Cocks, Strainer
| Test Cocks, Strainer
| Test Cocks, Strainer
| Limit Switch, Strainer
| Test Cocks, Strainer
|
| Coating | — | ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
|
| Series | 920GF
| LFF116
| LFF116
| LFM116
| LFM116
| LFF116
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | |||||
| Device Type | Relief
| Relief
| Relief
| Relief
| Relief
| Relief
|
| Size Nominal | 6"
| 6"
| 3"
| 3"
| 1-1/2"
| 1-1/2"
|
| Inlet Size | 6"
| 6"
| 3"
| 3"
| 1-1/2"
| 1-1/2"
|
| Outlet Size | 6"
| 6"
| 3"
| 3"
| 1-1/2"
| 1-1/2"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flanged
| Flanged
| Flanged
| Flanged
| NPT
| NPT
|
| Body Material | Copper
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
|
| Seat Material | Buna-N
| Buna-N
| Buna-N
| Buna-N
| Buna-N
| Buna-N
|
| Operation | — | Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
|
| Pressure Class | Class 150
| Class 150
| Class 300
| Class 300
| — | — |
| Max Pressure PSI | 300.0 psi | 200.0 psi | 200.0 psi | 600.0 psi | 600.0 psi | 200.0 psi |
| Max Temp °F | 160.0 °F | 160.0 °F | 160.0 °F | 160.0 °F | 160.0 °F | 160.0 °F |
