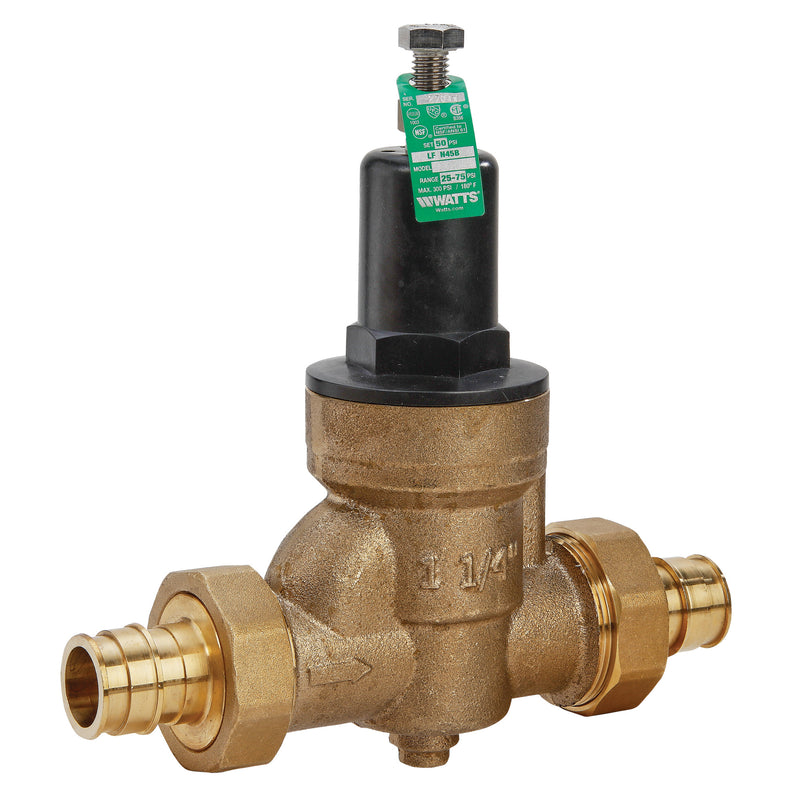

Watts 1 LFN45BM1-DU-PEXXPEX Lead-Free Pressure Reducing Valve, Copper, PEX

SKU: 0126319
Price:
Sale price$390.57 Regular price$561.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $390.57

Free shipping over $200

Key Features

Set Pressure PSI 60.0 psi
Regulated Media Water
Capacity Class Standard
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts 1 LFN45BM1-DU-PEXXPEX is a 1" lead-free pressure reducing valve with double union PEX connections. It reduces inlet pressure of up to 400 psi to an adjustable 25-75 psi downstream, factory set at 60 psi. It features a copper body and a epdm seat. Rated to 400 psi. This model is certified lead-free for potable-water installations.

This 1 inch lead free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing components and reduce the water consumption for commercial, industrial and residential applications. It features a lead fee cast copper silicon alloy body, thermoplastic seat cartridge, crimp union end connections, reinforced diaphragm, and a bypass valve to control thermal expansion pressure. The reduced pressure rating is set at 60 psi (345 kPa). The maximum working pressure is 400 psi (27.6 bar) and temperature range is 33 to 180 degrees F (0.5 to 82 degrees C).

Features

  • Lead free body construction
  • Crimp double union end connections for PEX tubing
  • Bypass valve controls thermal expansion pressure
  • Sealed spring cage for accessible outdoor or pit installations
  • Includes: Bypass

Common Questions

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
1 LFN45BM1-DU-PEXXPEX includes an integral thermal-expansion bypass. When downstream pressure from a water heater rises above the inlet pressure, the bypass relieves that excess back through the valve toward the supply, which prevents nuisance pressure build-up on a closed system. It is not a substitute for a properly sized thermal expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower, so check the code in your jurisdiction.
What pressure is it set to out of the box?
1 LFN45BM1-DU-PEXXPEX ships factory set at 60 psi. The adjustable reduced-pressure range is 25 to 75 psi, so you can dial the outlet anywhere in that band on site with the adjusting screw - loosen the locknut, turn in to raise pressure and out to lower it, then retighten and verify with a gauge.
Does it include a strainer?
No - 1 LFN45BM1-DU-PEXXPEX does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
Does it come with a gauge?
No - 1 LFN45BM1-DU-PEXXPEX has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping. The -GG version of this model ships with a gauge tapping and a 160 psi gauge.

Specifications

  • Type: Pressure Regulator
  • Size: 1"
  • Inlet Size: 1"
  • Outlet Size: 1"
  • Connection: PEX
  • Body Material: Copper
  • Seat / Seal Material: EPDM
  • Max Pressure (psi): 400
  • Shutoff: None
  • Pack Quantity: 12
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 1 LFN45BM1-DU-PEXXPEX
  • Certifications: ASSE-1003, ANSI-A112.26.2, IAPMO
  • Lead-Free: Yes
  • Factory Set Pressure (psi): 60
  • Adjustable Range - Min (psi): 25
  • Adjustable Range - Max (psi): 75
  • Thermal Expansion Bypass: Yes
  • Integral Strainer: No
  • Gauge: None
  • Union Configuration: Double Union
  • Capacity Class: Standard
  • Regulated Media: Water

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0126319 098268225303 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 1" Inlet Size 1"
Outlet Size 1" End Connection PEX

Details

Series LFN45B Device Type Pressure Regulator
Lead Free Yes Body Material Copper
Seat Material EPDM Max Pressure PSI 400.0 psi
Pack Qty 12 Options Bypass
Shutoff None Set Pressure PSI 60.0 psi
Adj Range Min PSI 25.0 psi Adj Range Max PSI 75.0 psi
Thermal Bypass Yes Gauge Config None
Union Config Double Union Capacity Class Standard
Regulated Media Water ——

Certifications & Standards

ASSE-1003 ANSI-A112.26.2
IAPMO —

Compare with similar products

Shutoff
None
None
—
Set Pressure PSI
60.0 psi
70.0 psi
85.0 psi
Adj Range Min PSI
25.0 psi
25.0 psi
75.0 psi
Adj Range Max PSI
75.0 psi
75.0 psi
125.0 psi
Thermal Bypass
Yes
Yes
Yes
Integral Strainer
—
Yes
Yes
Gauge Config
None
None
—
Union Config
Double Union
Single Union
Single Union
Capacity Class
Standard
High Capacity Full Port
Standard
Regulated Media
Water
Water
Domestic Water
Series
LFN45B
LFN55B-M1
112-600XLHR
Country Of Origin
United States
United States
—
Warranty
1 Year Limited
1 Year Limited
—
Spec Sheet
Install Sheet
Device Type
Pressure Regulator
Pressure Regulator
Water Pressure Reducing Valve with Removable Integral Strainer
Size Nominal
1"
3/4"
1-1/2"
Inlet Size
1"
3/4"
1-1/2"
Outlet Size
1"
3/4"
1-1/2"
Lead Free
Yes
Yes
Yes
End Connection
PEX
FNPT
FNPT
Body Material
Copper
Brass
Lead-Free Bronze
Seat Material
EPDM
EPDM
—
Max Pressure PSI
400.0 psi
400.0 psi
300.0 psi
Max Temp °F
—
180.0 °F
140.0 °F
Certifications
ASSE-1003, ANSI-A112.26.2, IAPMO
ASSE-1003, ANSI-A112.26.2, IAPMO
ASSE-1003, IAPMO, CSA, NSF-61
Pack Qty
12
12
—
Options
Bypass
Strainer, Bypass
—
