Specifications
Description

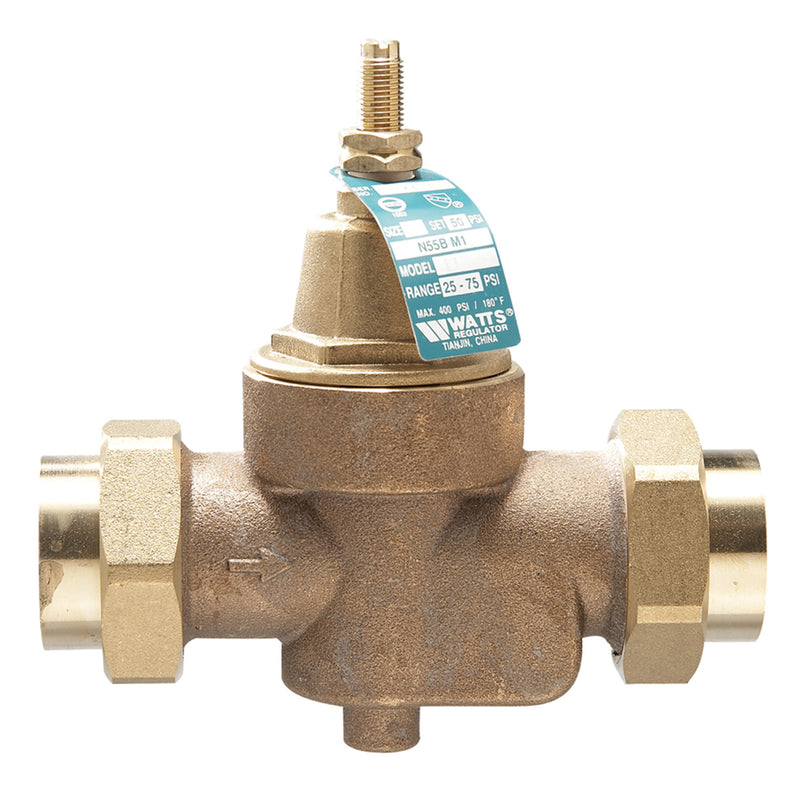

The Watts LFN55BM1-DU-LP 1 IN is a 1" lead-free pressure reducing valve with double union NPT connections. It reduces inlet pressure of up to 400 psi to an adjustable 10-35 psi downstream, factory set at 30 psi. It features a brass body and a epdm seat. Rated to 400 psi and 33°F to 180°F. This model is certified lead-free for potable-water installations.
This 1 inch water pressure reducing valve is for low pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. It consists of a lead free brass body construction, NPT threaded union female inlet and outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the pressure setting set at 30 psi (207 kPa).
Features
- NPT threaded union female inlet and outlet
- Pressure setting at 30 psi (207 kPa)
- Thermoplastic seat and bronze cage
- Corrosion-resistant adjusting screw and sealed cage for waterworks pit installations
- Includes: Strainer
- Includes: Bypass
Common Questions
- Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
- LFN55BM1-DU-LP 1 IN includes an integral thermal-expansion bypass. When downstream pressure from a water heater rises above the inlet pressure, the bypass relieves that excess back through the valve toward the supply, which prevents nuisance pressure build-up on a closed system. It is not a substitute for a properly sized thermal expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower, so check the code in your jurisdiction.
- What pressure is it set to out of the box?
- LFN55BM1-DU-LP 1 IN ships factory set at 30 psi. The adjustable reduced-pressure range is 10 to 35 psi, so you can dial the outlet anywhere in that band on site with the adjusting screw - loosen the locknut, turn in to raise pressure and out to lower it, then retighten and verify with a gauge.
- Does it include a strainer?
- Yes - LFN55BM1-DU-LP 1 IN has an integral stainless steel strainer built into the body, so you do not need a separate inline strainer ahead of it. The strainer is removable for cleaning; if the valve starts to lose downstream pressure, pull and rinse the strainer before assuming the seat has failed.
- Does it come with a gauge?
- No - LFN55BM1-DU-LP 1 IN has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping. The -GG version of this model ships with a gauge tapping and a 160 psi gauge.
Specifications
- Type: Pressure Regulator
- Size: 1"
- Inlet Size: 1"
- Outlet Size: 1"
- Connection: NPT
- Body Material: Brass
- Seat / Seal Material: EPDM
- Max Pressure (psi): 400
- Shutoff: None
- Pack Quantity: 12
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFN55BM1-DU-LP 1 IN
- Temperature: 33°F to 180°F
- Certifications: ASSE-1003, ANSI-A112.26.2, IAPMO
- Lead-Free: Yes
- Factory Set Pressure (psi): 30
- Adjustable Range - Min (psi): 10
- Adjustable Range - Max (psi): 35
- Thermal Expansion Bypass: Yes
- Integral Strainer: Yes
- Gauge: None
- Union Configuration: Double Union
- Capacity Class: High Capacity Full Port
- Regulated Media: Water
Product Information
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| Outlet Size | 1" | End Connection | NPT |
Details
| Series | LFN55B-M1 | Device Type | Pressure Regulator |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | EPDM | Max Pressure PSI | 400.0 psi |
| Max Temp °F | 180.0 °F | Pack Qty | 12 |
| Options | Strainer, Bypass | Min Temp °F | 33.0 °F |
| Shutoff | None | Set Pressure PSI | 30.0 psi |
| Adj Range Min PSI | 10.0 psi | Adj Range Max PSI | 35.0 psi |
| Thermal Bypass | Yes | Integral Strainer | Yes |
| Gauge Config | None | Union Config | Double Union |
| Capacity Class | High Capacity Full Port | Regulated Media | Water |
Certifications & Standards
| ASSE-1003 | ANSI-A112.26.2 |
| IAPMO | — |
Compare with similar products
| Shutoff | None
| None
| — |
| Set Pressure PSI | 30.0 psi | 70.0 psi | 85.0 psi |
| Adj Range Min PSI | 10.0 psi | 25.0 psi | 75.0 psi |
| Adj Range Max PSI | 35.0 psi | 75.0 psi | 125.0 psi |
| Thermal Bypass | Yes | Yes | Yes |
| Integral Strainer | Yes | Yes | Yes |
| Gauge Config | None
| None
| — |
| Union Config | Double Union
| Single Union
| Single Union
|
| Capacity Class | High Capacity Full Port
| High Capacity Full Port
| Standard
|
| Regulated Media | Water
| Water
| Domestic Water
|
| Series | LFN55B-M1
| LFN55B-M1
| 112-600XLHR
|
| Country Of Origin | United States
| United States
| — |
| Warranty | 1 Year Limited
| 1 Year Limited
| — |
| Spec Sheet | |||
| Install Sheet | |||
| Device Type | Pressure Regulator
| Pressure Regulator
| Water Pressure Reducing Valve with Removable Integral Strainer
|
| Size Nominal | 1"
| 3/4"
| 1-1/2"
|
| Inlet Size | 1"
| 3/4"
| 1-1/2"
|
| Outlet Size | 1"
| 3/4"
| 1-1/2"
|
| Lead Free | Yes | Yes | Yes |
| End Connection | NPT
| FNPT
| FNPT
|
| Body Material | Brass
| Brass
| Lead-Free Bronze
|
| Seat Material | EPDM
| EPDM
| — |
| Max Pressure PSI | 400.0 psi | 400.0 psi | 300.0 psi |
| Max Temp °F | 180.0 °F | 180.0 °F | 140.0 °F |
| Certifications | ASSE-1003, ANSI-A112.26.2, IAPMO
| ASSE-1003, ANSI-A112.26.2, IAPMO
| ASSE-1003, IAPMO, CSA, NSF-61
|
| Pack Qty | 12
| 12
| — |
| Options | Strainer, Bypass
| Strainer, Bypass
| — |
| Min Temp °F | 33.0 °F | 33.0 °F | — |
