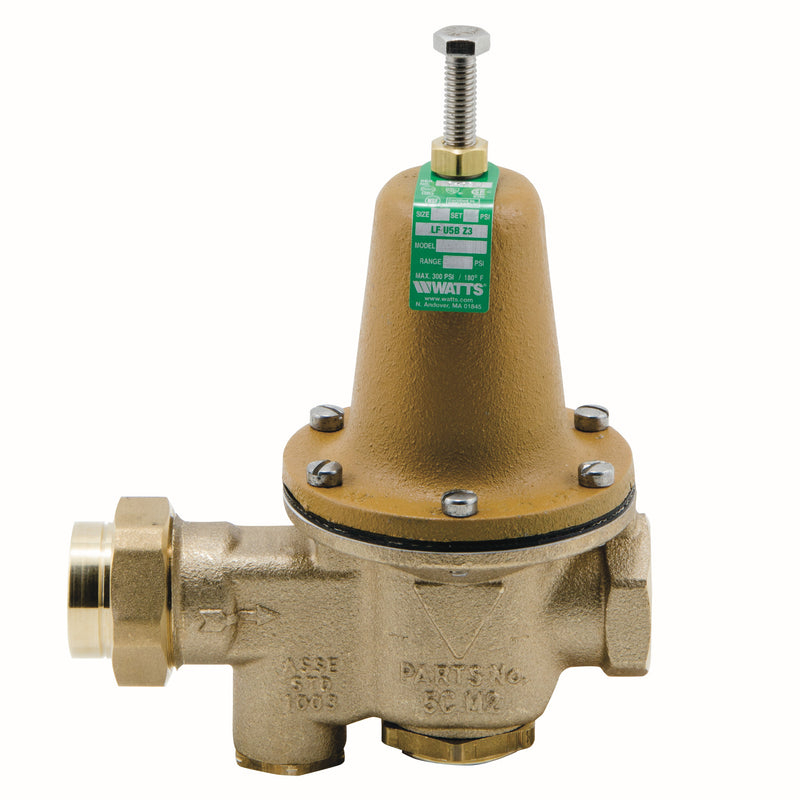

Watts LFU5B-G-LP Z3 2 Lead-Free Pressure Reducing Valve, Copper, NPT

SKU: 0009212
Price:
Sale price$7,309.56 Regular price$10,499.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $7,309.56

Free shipping over $200

Key Features

Set Pressure PSI 30.0 psi
Regulated Media Water
Capacity Class High Performance
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts LFU5B-G-LP Z3 2 is a 2" lead-free pressure reducing valve with single union NPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 10-35 psi downstream, factory set at 30 psi. It features a copper body and a epdm seat. Rated to 300 psi and 33°F to 180°F. This model is certified lead-free for potable-water installations.

This 2 inch lead free high performance water pressure reducing valve is equipped for low pressure ranges with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (345 kPa).

Features

  • Sealed spring cage with stainless steel cage screws
  • Serviceable in line without special tools
  • Bypass feature controls thermal expansion pressure
  • NPT threaded female union inlet by NPT female outlet
  • Includes: Bypass

Common Questions

Does it have a built-in bypass for thermal expansion, or do I still need an expansion tank?
LFU5B-G-LP Z3 2 includes an integral thermal-expansion bypass. When downstream pressure from a water heater rises above the inlet pressure, the bypass relieves that excess back through the valve toward the supply, which prevents nuisance pressure build-up on a closed system. It is not a substitute for a properly sized thermal expansion tank where your local code requires one - the bypass only relieves back to the street when street pressure is lower, so check the code in your jurisdiction.
What pressure is it set to out of the box?
LFU5B-G-LP Z3 2 ships factory set at 30 psi. The adjustable reduced-pressure range is 10 to 35 psi, so you can dial the outlet anywhere in that band on site with the adjusting screw - loosen the locknut, turn in to raise pressure and out to lower it, then retighten and verify with a gauge.
Does it include a strainer?
No - LFU5B-G-LP Z3 2 does not have an integral strainer. On dirty or older supply lines, install a separate inline strainer upstream to keep debris off the seat.
Does it come with a gauge?
LFU5B-G-LP Z3 2 has a gauge tapping (port) but no gauge is included - the port ships plugged. Thread in your own gauge to read the reduced downstream pressure. The -GG version of this model ships with the tapping and a 160 psi gauge fitted.

Specifications

  • Type: Pressure Regulator
  • Size: 2"
  • Inlet Size: 2"
  • Outlet Size: 2"
  • Connection: NPT
  • Body Material: Copper
  • Seat / Seal Material: EPDM
  • Max Pressure (psi): 300
  • Shutoff: None
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: LFU5B-G-LP Z3 2
  • Temperature: 33°F to 180°F
  • Certifications: ASSE-1003, ANSI-A112.26.2, IAPMO
  • Lead-Free: Yes
  • Factory Set Pressure (psi): 30
  • Adjustable Range - Min (psi): 10
  • Adjustable Range - Max (psi): 35
  • Thermal Expansion Bypass: Yes
  • Integral Strainer: No
  • Gauge: Gauge Tap
  • Union Configuration: Single Union
  • Capacity Class: High Performance
  • Regulated Media: Water

Product Information

SKUUPCCountry of OriginWarrantySpec Sheet
0009212 098268329087 United States 1 Year Limited Download

Dimensions

Size Nominal 2" Inlet Size 2"
Outlet Size 2" End Connection NPT

Details

Series LFU5B-Z3 Device Type Pressure Regulator
Lead Free Yes Body Material Copper
Seat Material EPDM Max Pressure PSI 300.0 psi
Max Temp °F 180.0 °F Options Bypass
Min Temp °F 33.0 °F Shutoff None
Set Pressure PSI 30.0 psi Adj Range Min PSI 10.0 psi
Adj Range Max PSI 35.0 psi Thermal Bypass Yes
Gauge Config Gauge Tap Union Config Single Union
Capacity Class High Performance Regulated Media Water

Certifications & Standards

ASSE-1003 ANSI-A112.26.2
IAPMO —

Compare with similar products

Shutoff
None
None
—
Set Pressure PSI
30.0 psi
70.0 psi
85.0 psi
Adj Range Min PSI
10.0 psi
25.0 psi
75.0 psi
Adj Range Max PSI
35.0 psi
75.0 psi
125.0 psi
Thermal Bypass
Yes
Yes
Yes
Integral Strainer
—
Yes
Yes
Gauge Config
Gauge Tap
None
—
Union Config
Single Union
Single Union
Single Union
Capacity Class
High Performance
High Capacity Full Port
Standard
Regulated Media
Water
Water
Domestic Water
Series
LFU5B-Z3
LFN55B-M1
112-600XLHR
Country Of Origin
United States
United States
—
Warranty
1 Year Limited
1 Year Limited
—
Spec Sheet
Install Sheet
—
Device Type
Pressure Regulator
Pressure Regulator
Water Pressure Reducing Valve with Removable Integral Strainer
Size Nominal
2"
3/4"
1-1/2"
Inlet Size
2"
3/4"
1-1/2"
Outlet Size
2"
3/4"
1-1/2"
Lead Free
Yes
Yes
Yes
End Connection
NPT
FNPT
FNPT
Body Material
Copper
Brass
Lead-Free Bronze
Seat Material
EPDM
EPDM
—
Max Pressure PSI
300.0 psi
400.0 psi
300.0 psi
Max Temp °F
180.0 °F
180.0 °F
140.0 °F
Certifications
ASSE-1003, ANSI-A112.26.2, IAPMO
ASSE-1003, ANSI-A112.26.2, IAPMO
ASSE-1003, IAPMO, CSA, NSF-61
Options
Bypass
Strainer, Bypass
—
Min Temp °F
33.0 °F
33.0 °F
—
