Specifications
Description

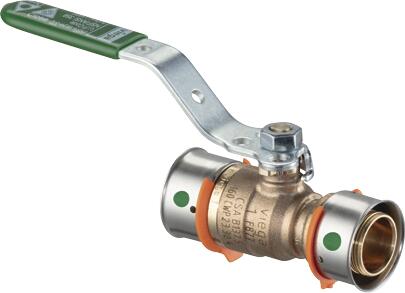

The Viega 98203 is a 2" zero-lead ball valve from Viega's PureFlow Press system with PEX Press x PEX Press ends for PEX tubing. It features a silicium bronze body. Rated to 0°F to 250°F. This model is certified lead-free for potable-water installations.
Features
- Zero Lead
- For potable water installations
- Not suitable for gas installations
- Silicon bronze
- Press connection
- Full port
- Components EPDM sealing elements, lockable metal handle, stainless steel ball
Common Questions
- What pipe and press tool does this valve need?
- It installs with a Viega PureFlow press jaw or ring, on PEX tubing.
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
Specifications
- Type: Ball Valve
- Size: 2"
- Connection: PEX
- Body Material: Silicium bronze
- Application: Domestic Water
- Country of Origin: Germany
- MPN: 98203
- Temperature: 0°F to 250°F
- Lead-Free: Yes
- Press Profile: Viega PureFlow
- Sealing Element: EPDM
- For Use On: PEX
- End Connections: PEX Press x PEX Press
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 98203 | Germany |
Dimensions
| Size Nominal | 2" | End Connection | PEX |
Details
| Series | PureFlow Press | Device Type | Ball Valve |
| Lead Free | Yes | Body Material | Silicium bronze |
| Application | Domestic Water | Port Style | Full |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Ball Material | Stainless Steel | Work material | PEX |
| End combination | PEX Press x PEX Press | — | — |
Compare with similar products
| Port Style | Full
| — | — | — | — | Full
|
| Ball Material | Stainless Steel
| — | — | — | — | Stainless
|
| Series | PureFlow Press
| PureFlow
| PureFlow
| PureFlow
| PureFlow
| ProPEX
|
| Country Of Origin | Germany
| China
| China
| China
| China
| — |
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| — |
| Size Nominal | 2"
| 1-1/4"
| 3/4"
| 1"
| 1/2"
| 1-1/2"
|
| Lead Free | Yes | — | — | — | — | Yes |
| End Connection | PEX
| PEX
| PEX
| PEX
| PEX
| PEX
|
| Body Material | Silicium bronze
| Silicium bronze, brass
| Silicium bronze, brass
| Silicium bronze, brass
| Silicium bronze, brass
| — |
| Application | Domestic Water
| — | — | — | — | Domestic Water
|
| Max Temp °F | 250.0 °F | — | — | — | — | 200.0 °F |
