Specifications
Description

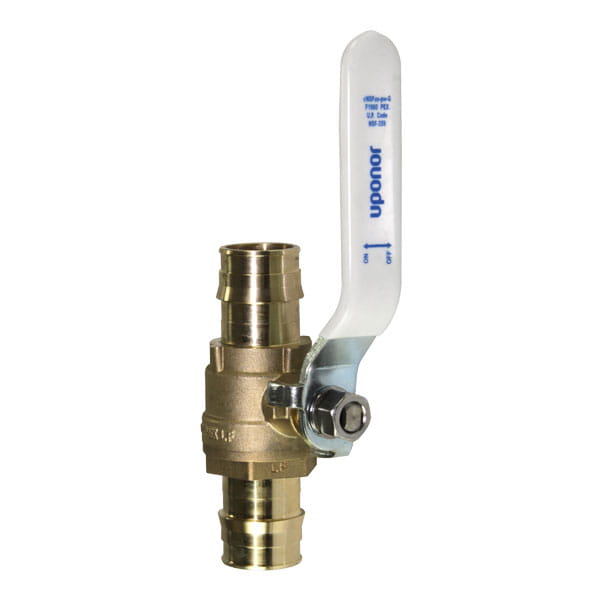

The Uponor LFC4821515SS is a 1-1/2" lead-free ball valve with PEX connections. ProPEX LF brass commercial ball valves feature a full-port design for maximum performance and flow in domestic water piping systems as well as mechanical HVAC applications in systems containing no more than 50% propylene glycol. The valves feature a stainless-steel ball and stem for greater durability, longevity, and system performance. Stem extension kits are available for insulated piping applications to accommodate up to 2" of insulation. Note: Requires ProPEX tool and rings, sold separately. It is rated to 250 psi and up to 200°F. This model is certified lead-free for potable-water installations.
Common Questions
- Is it approved for drinking water?
- Yes. Uponor lists it to NSF/ANSI/CAN 61 and NSF/ANSI/CAN 372 (lead-free) with a potable-water (pw) listing.
Specifications
- Size: 1-1/2"
- Connection: PEX
- Max Pressure (psi): 250
- Application: Domestic Water
- MPN: LFC4821515SS
- Temperature: up to 200°F
- Certifications: ASTM F1960, CSA-B137.5, NSF-14, NSF-61, NSF-372, NSF-359, ASTM F877
- Lead-Free: Yes
- Connection System: PEX Expansion
- Max Working Pressure (PSI): 200
- CA Prop 65: Yes
- Port Style: Full
- Ball Material: Stainless
- Stem Material: Stainless
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| LFC4821515SS | 673372660891 | Download |
Dimensions
| Size Nominal | 1-1/2" | End Connection | PEX |
Details
| Series | ProPEX | Lead Free | Yes |
| Application | Domestic Water | Port Style | Full |
| Max Pressure PSI | 250.0 psi | Max Temp °F | 200.0 °F |
| Ball Material | Stainless | Stem Material | Stainless |
| Operating pressure max psi | 200.0 PSI | Prop65 | Yes |
| Connection system | PEX Expansion | — | — |
Certifications & Standards
| ASTM F1960 | CSA-B137.5 |
| NSF-14 | NSF-61 |
| NSF-372 | NSF-359 |
| ASTM F877 | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| Full
|
| Ball Material | Stainless
| Stainless
| Stainless
| Stainless
| Stainless Steel
| Stainless Steel
|
| Stem Material | Stainless
| Stainless
| Stainless
| Stainless
| — | — |
| Series | ProPEX
| ProPEX
| ProPEX
| ProPEX
| PureFlow Press
| PureFlow Press
|
| Country Of Origin | — | — | — | — | Germany
| Germany
|
| Spec Sheet | — | — | ||||
| Device Type | — | — | — | — | Ball Valve
| Ball Valve
|
| Size Nominal | 1-1/2"
| 1"
| 3/4"
| 1/2"
| 1/2"
| 3/4"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | PEX
| PEX
| PEX
| PEX
| PEX
| PEX
|
| Body Material | — | — | — | — | Silicium bronze
| Silicium bronze
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 250.0 psi | 250.0 psi | 250.0 psi | 250.0 psi | — | — |
| Max Temp °F | 200.0 °F | 200.0 °F | 200.0 °F | 200.0 °F | 250.0 °F | 250.0 °F |
| Certifications | ASTM F1960, CSA-B137.5, NSF-14, NSF-61, NSF-372, NSF-359, ASTM F877
| ASTM F1960, CSA-B137.5, NSF-14, NSF-61, NSF-372, NSF-359, ASTM F877
| ASTM F1960, CSA-B137.5, NSF-14, NSF-61, NSF-372, NSF-359, ASTM F877
| ASTM F1960, CSA-B137.5, NSF-14, NSF-61, NSF-372, NSF-359, ASTM F877
| — | — |
| Min Temp °F | — | — | — | — | 0.0 °F | 0.0 °F |
