Specifications
Description

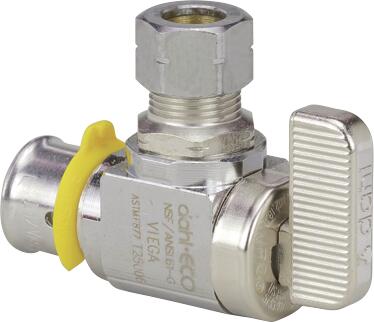

The Viega 93511 is a 1/2" zero-lead angle stop valve from Viega's PureFlow Press system with PEX Press x Compression ends for PEX tubing. It features a nickel-plated brass body. This model is certified lead-free for potable-water installations.
Sold as a pack of 10. This item ships only in multiples of 10, so the price shown is for all 10.
Features
- Angled
- Zero Lead
- For use with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX
- Nickel-plated brass
- Press connection, compression
- ¼ turn
Common Questions
- What pipe and press tool does this valve need?
- It installs with a Viega PureFlow press jaw or ring, on PEX tubing.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
- What size supply line connects to the outlet?
- The outlet takes 1/4" OD tube by compression.
Specifications
- Type: Stop Valve
- Size: 1/2"
- Outlet Size: 1/4" OD
- Connection: PEX
- Body Material: Nickel-plated brass
- Pack Quantity: 10
- Country of Origin: Canada
- MPN: 93511
- Lead-Free: Yes
- Press Profile: Viega PureFlow
- For Use On: PEX
- End Connections: PEX Press x Compression
- Port Configuration: 1/2" PEX Press x 1/4" Compression
- Body Pattern: Angle
- Coating / Finish: Nickel Plated
- Inlet Connection: PEX Press
- Outlet Connection: Compression
- Turn Type: Quarter-Turn
Product Information
| SKU | Country of Origin |
|---|---|
| 93511 | Canada |
Dimensions
| Size Nominal | 1/2" | Outlet Size | 1/4" OD |
| End Connection | PEX | — | — |
Details
| Series | PureFlow Press | Device Type | Stop Valve |
| Lead Free | Yes | Body Material | Nickel-plated brass |
| Pack Qty | 10 | Inlet Connection Type | PEX Press |
| Outlet Connection Type | Compression | Body pattern | Angle |
| Coating | Nickel Plated | Work material | PEX |
| Configuration | 1/2" PEX Press x 1/4" Compression | End combination | PEX Press x Compression |
