Specifications
Description

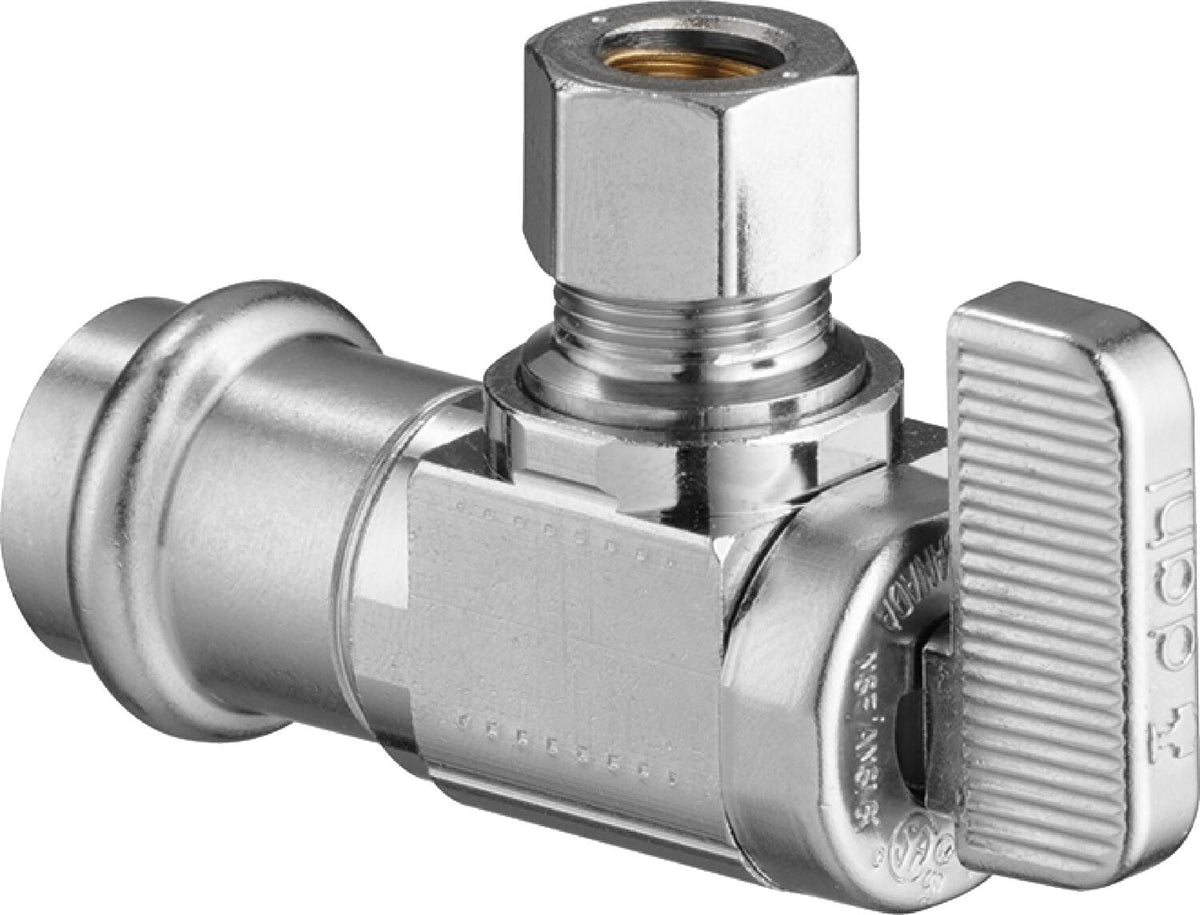

The Viega 89995 is a 1/2" zero-lead angle stop valve from Viega's ProPress system with Press x Compression ends for copper tube (CTS sizes). It features a nickel-plated brass body. This model is certified lead-free for potable-water installations.
Sold as a pack of 10. This item ships only in multiples of 10, so the price shown is for all 10.
Features
- Angled
- Zero Lead
- For potable water installations
- Not suitable for fuel gas application
- Nickel-plated brass
- ProPress press connection, compression
- ¼ turn
Common Questions
- What pipe and press tool does this valve need?
- It installs with a ProPress press jaw or ring, on copper tube (CTS sizes).
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
- What size supply line connects to the outlet?
- The outlet takes 3/8" OD tube by compression.
Specifications
- Type: Stop Valve
- Size: 1/2"
- Outlet Size: 3/8" OD
- Connection: Press
- Body Material: Nickel-plated brass
- Application: Domestic Water
- Pack Quantity: 10
- Country of Origin: Canada
- MPN: 89995
- Lead-Free: Yes
- Press Profile: ProPress
- Size Basis: CTS
- For Use On: Copper
- End Connections: Press x Compression
- Port Configuration: 1/2" Press x 3/8" Compression
- Body Pattern: Angle
- Coating / Finish: Nickel Plated
- Inlet Connection: Press
- Outlet Connection: Compression
- Turn Type: Quarter-Turn
Product Information
| SKU | Country of Origin |
|---|---|
| 89995 | Canada |
Dimensions
| Size Nominal | 1/2" | Outlet Size | 3/8" OD |
| End Connection | Press | — | — |
Details
| Series | ProPress | Device Type | Stop Valve |
| Lead Free | Yes | Body Material | Nickel-plated brass |
| Application | Domestic Water | Pack Qty | 10 |
| Inlet Connection Type | Press | Outlet Connection Type | Compression |
| Body pattern | Angle | Coating | Nickel Plated |
| Work material | Copper | Configuration | 1/2" Press x 3/8" Compression |
| End combination | Press x Compression | — | — |
Compare with similar products
| Inlet Connection Type | Press
| PEX Press
| FNPT
| PEX
| PEX Crimp
| PEX Crimp
|
| Outlet Connection Type | Compression
| Compression
| FNPT
| Compression
| Compression
| Compression
|
| Series | ProPress
| PureFlow Press
| — | ProPEX
| PureFlow Crimp
| PureFlow Crimp
|
| Country Of Origin | Canada
| Canada
| — | — | Canada
| Canada
|
| Spec Sheet | — | — | — | — | ||
| Device Type | Stop Valve
| Stop Valve
| — | — | Stop Valve
| Stop Valve
|
| Size Nominal | 1/2"
| 3/8"
| — | 1/2"
| 1/2"
| 3/8"
|
| Outlet Size | 3/8" OD
| 1/4" OD
| 1/2"
| 3/8"
| 1/4" OD
| 1/4" OD
|
| Lead Free | Yes | Yes | — | Yes | Yes | Yes |
| End Connection | Press
| PEX
| — | Compression
| PEX
| PEX
|
| Body Material | Nickel-plated brass
| Nickel-plated brass
| Brass
| Brass
| Nickel-plated brass
| Nickel-plated brass
|
| Application | Domestic Water
| — | — | Domestic Water
| — | — |
| Max Temp °F | — | — | 140.0 °F | 194.0 °F | — | — |
| Certifications | — | — | ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372
| ASME A112.18.1/CSA B125.1, NSF-372, ASTM F877, ASTM F1960, CSA-B137.5, NSF-61, NSF-14
| — | — |
| Pack Qty | 10
| 10
| — | — | — | — |
